GH 1500 / GH 2000
Professional Short Wave Heat Lamps

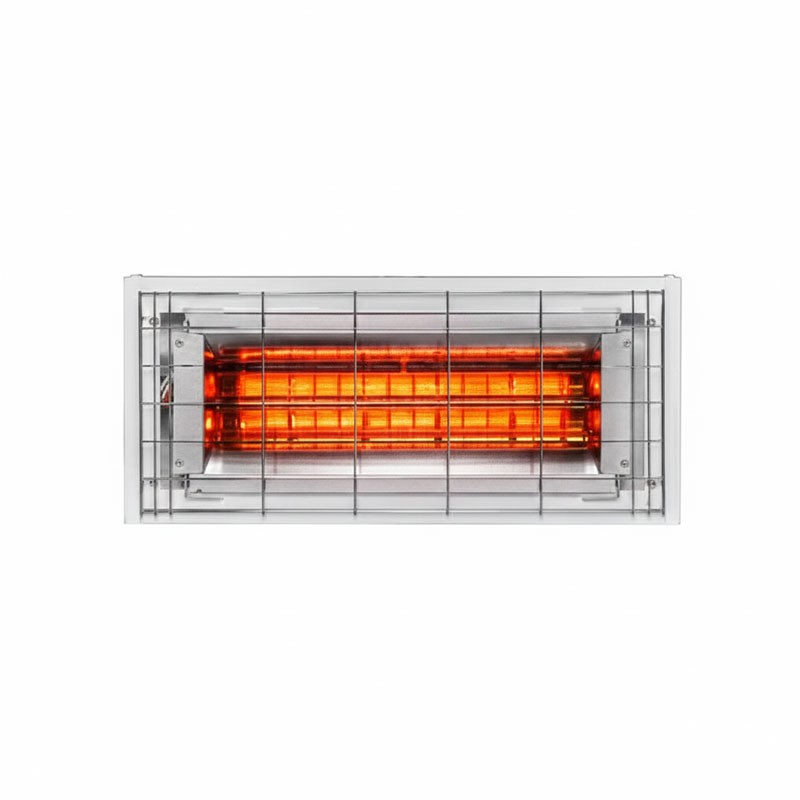

Grado Heaters GH 1500 / GH 2000 - 1500 / 2000 W Infrared Heat Lamps

The Grado Heaters GH-1500 and GH-2000 Heating Lamps are professional electric infrared heaters designed for industrial and professional applications where highly efficient short-wave infrared radiant emission is required. The GH-1500 and GH-2000 models are professional single-lamp solutions , ideal for localized heating , heating workstations , production areas, covered outdoor spaces and technical environments .

The reflective body in Grado Specular Tex® electro-polished aluminum guarantees high reflective power , optimizing the performance of professional infrared heating. The short-wave lamp ensures immediate response , while the IP24 protection rating makes the professional heating lamps suitable even for covered outdoor environments.

Available Models

• GH-1500 - 1500 W - Current draw 5.8 A
• GH-2000 - 2000 W - Power consumption 7.4 A

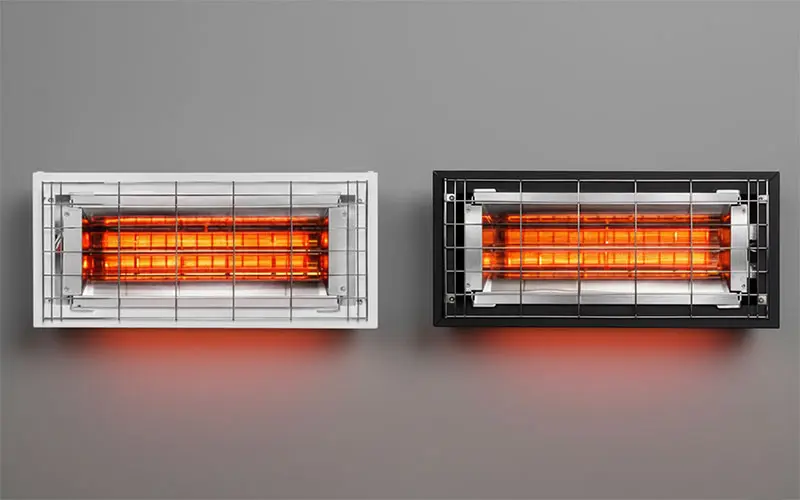

Both models are available in Marble White or Anthracite Grey and are sold complete with wall brackets .
Furthermore, they are all compatible with the Ground Pole (not included) which can be purchased as an optional.

Shortwave infrared

Infrared lamps were developed following years of research, resulting in products that are more efficient and long-lasting than traditional lamps. Short-wave infrared lamps are the most common type, capable of instantaneous heating and excellent air penetration; the heat produced is more superficial than that produced by medium-wave lamps. This type of technology is the most widely used in industrial settings due to its excellent power-to-price ratio.

Technical Specifications

The Grado Heaters GH-1500 and GH-2000 heating lamps operate on a single-phase 230V-50Hz power supply , an industry standard that allows for easy integration into professional electrical systems. The radiant electric heating system uses a highly efficient, interchangeable short-wave infrared lamp , designed for continuous professional use.

From a performance standpoint, the electro-polished aluminum reflector with Specular Tex® technology ensures optimized symmetrical heat diffusion . The structure is protected by a heavy-weight, scratch-resistant embossed epoxy powder coating, specifically designed for covered and industrial outdoor use, while the low ROA emission complies with Legislative Decree 81/08 and Directive 2006/25/EC.

Functional Specifications

Short Wave Bulb

The GH-1500 and GH-2000 professional infrared heater uses a short-wave lamp that provides immediate, targeted and efficient heating, reducing heat loss and improving energy efficiency in industrial and professional settings.
Grado Heaters heating lamps are equipped with standard diffusing optics , ideal for homogeneous coverage, with the possibility of concentrating optics on request for applications requiring highly concentrated infrared heating.

High Efficiency Specular Tex® Reflector

The continuously electro-polished and polished Specular Tex® aluminium reflecting body guarantees high radiant efficiency, concentrating and evenly distributing the infrared flow for stable and controlled professional localised heating.

IP24 protection

The IP24 protection rating makes the GH-1500 and GH-2000 electric infrared heater suitable for industrial environments, workshops and covered outdoor spaces, ensuring operational reliability even in challenging environmental conditions.

Certified Italian Artisan Production

Grado Heaters professional heating lamps are designed, built, and hand-assembled in Italy, offering high quality standards, material control, and compliance with safety regulations for professional infrared heating.

Installation Tips

Ceiling installation (heater facing downwards)

• DS minimum distance from the ceiling: 10 cm
• DP minimum distance from the side wall: 50 cm

Wall installation (heater tilted downwards with variable angle)

• DS* minimum distance from the ceiling: 20 cm
• DP* minimum distance from the side wall: 10 cm
• H* suggested distance from the floor: GH1500 min 2.6 m max. 3.8 m / GH-2000 min 2.8 m max. 4.3 m

*Values refer to a single element in a typical environment. Values measured in the laboratory. Custom sizing is recommended for each specific application.
