LEGENDA
| IP | First digit – Protection against solid objects | Second digit – Protection against water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Solid objects ≥ 50 mm | Vertical dripping |
| 2 | Solid objects ≥ 12.5 mm | Dripping when tilted (15°) |
| 3 | Solid objects ≥ 2.5 mm | Water spray |
| 4 | Solid objects ≥ 1 mm | Water splashes |
| 5 | Dust protected (partial) | Water jets |
| 6 | Dust tight | Powerful water jets |

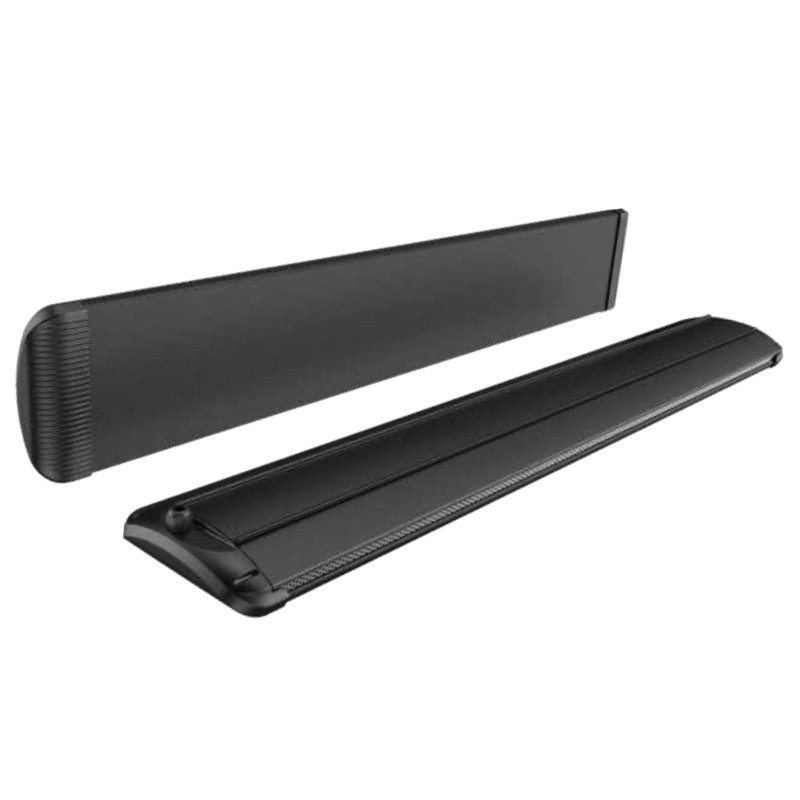

MO-EL Hot-Top Three-Phase
Indoor Infrared Heating Panel
400V - 3,0÷4,5 kW
IP 55 - Interni
Senza Luce
€729.00
€597.54 tax excl.
MO-EL Hot-Top Three-Phase - Infrared Convector Heater from 3 to 4.5 kW
MO-EL Hot-Top Trifase is a professional infrared heating panel without light , available in 3 kW and 4.5 kW models, designed for use in large indoor environments . The three-phase connection ensures balanced load distribution and allows for three-level ignition , optimizing energy management. Made in Italy , this device combines minimal design and high performance for the direct heating of small areas without dispersion.
Available models
- Hot-Top Three-Phase 9830 - Black, 3 kW
- Three-phase Hot-Top 9845 - black, 4.5 kW
Technical Specifications
The three-phase power supply ensures operational stability and flexibility of use, with the option of selecting three ignition steps based on your needs. The silicon-coated resistors reach IP55 protection, maintaining system reliability even in the presence of humidity and reducing the risk of short circuits.

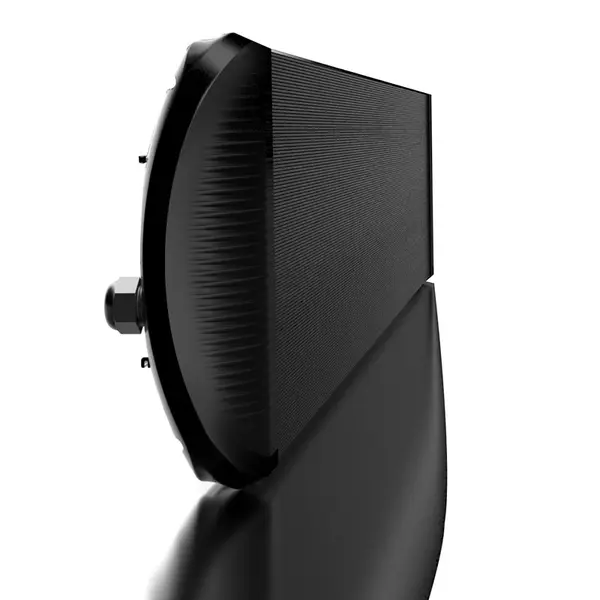

The 340°C operating temperature maximizes infrared radiation emission, taking advantage of the highly emissive black anodized surface and optimized radiating geometry. The longitudinal ribs expand the radiation surface and increase the coverage distance, while the thermal insulation reduces heat loss towards the bodywork. The result is a durable, highly efficient device, ideal for professional applications such as restaurants or large indoor spaces.
View in 3D
Characteristics
- Completely Made in Italy
- It does not emit any light
- Modern Spanish Design
- Constructed from 6060 aluminum
- Anodized radiant part
- IP55 Protection Ratings
- High Efficiency
- Homogeneous heating
- Long Wave Infrared Radiation
- Recommended for internal use
Equipment
- Adjustable wall mount
Technical Data
| Model | 9830 | 9845 |
| Power Supply | 400V | 400V |
| Power | 3.0 kW | 4.5 kW |
| Infrared Radiation | Long Wave | Long Wave |
| Degree of Protection | IP55 | IP55 |
| Insulation Class | THE | THE |
| Material | Anodized Aluminum 6060 | Anodized Aluminum 6060 |
| Radiant Material | Anodized Aluminum 6060 | Anodized Aluminum 6060 |
| Size | 156 x 25 x 7 cm | 215 x 25 x 7 cm |
| Weight | 10.6 kg | 14.3 kg |
Technical Data
| Model | 9830 | 9845 |
| Power Supply | 400V | 400V |
| Power | 3.0 kW | 4.5 kW |
| Infrared Radiation | Long Wave | Long Wave |
| Degree of Protection | IP55 | IP55 |
| Insulation Class | THE | THE |
| Material | Anodized Aluminum 6060 | Anodized Aluminum 6060 |
| Radiant Material | Anodized Aluminum 6060 | Anodized Aluminum 6060 |
| Size | 156 x 25 x 7 cm | 215 x 25 x 7 cm |
| Weight | 10.6 kg | 14.3 kg |
