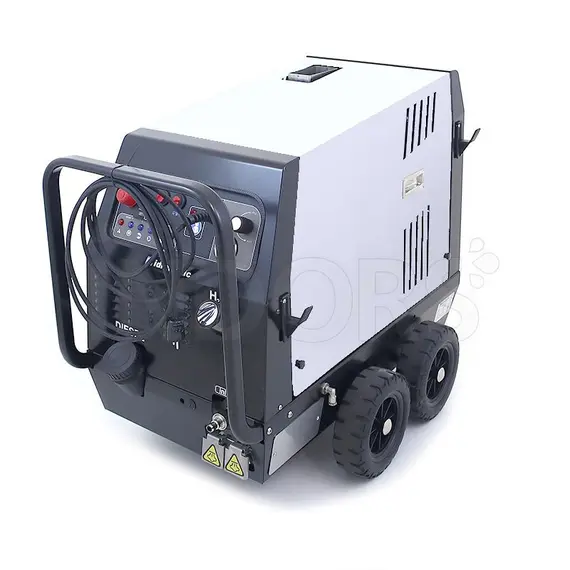

Idromatic ASTRA EVO INOX - Industrial Steam Cleaner

The Idromatic ASTRA EVO INOX steam cleaner is an advanced model of the previous Astra Steamer, designed to offer an easy and intuitive user experience for multiple operators .

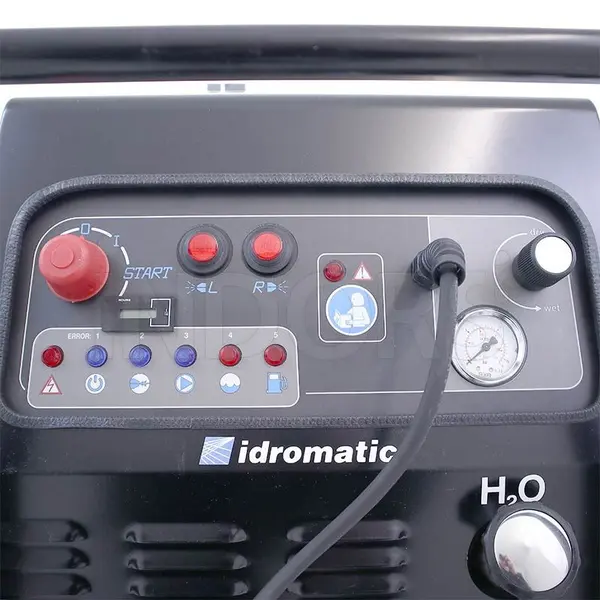

The machine has an electronic control panel that allows you to manage all the functions directly from it, simplifying use and ensuring operator safety.

This steam cleaner is particularly suitable for mobile washing operations, as all controls and connections are positioned at the front for easy access .

It comes standard with two steam outlets , allowing two operators to work independently at the same time , plus with the addition of the splitter kit (optional) , the number of operators can be extended up to four .

The machine also offers the possibility of being powered both by the water mains and by an internal water tank , and the automatic power selection allows it to adapt to different situations without the need for manual intervention.

The machine has a self-diagnosis function that signals any problems on the control panel , indicating the number corresponding to the error found. Furthermore, thanks to the installed CPU , it is possible to monitor the operation of the machine in real time .

The warm-up time of the steam cleaner before use is only 5 minutes , in case there is no electrical power available from the mains, the machine can be powered by a small generator , allowing it to be used in different situations and environments.

Technical specifications

The Idromatic ASTRA EVO INOX steam cleaner is characterised by an operating pressure of 9 bar , guaranteeing excellent power for cleaning operations . Its maximum steam flow rate reaches 40 kg/h , allowing you to tackle even the most demanding cleaning tasks .

The required power supply is 230V , while the absorbed power is 0.5 kW , ensuring efficient energy consumption . This model has two steam outlets , allowing two operators to work simultaneously independently .

The thermal power of 48 kW ensures rapid heating of the water to produce high temperature steam.

The diesel boiler can reach a maximum temperature of 220 °C , while the outgoing water can reach a maximum temperature of 180 °C , ensuring effective and hygienic cleaning.

The water tank capacity is 25 L , ensuring sufficient autonomy for several cleaning operations.

In addition, there is a 20 L diesel tank to power the heating system. The Idromatic ASTRA EVO steam cleaner has a total weight of 149 kg , which ensures stability and robustness during use.

This model is designed to allow two operators to use it simultaneously , thus increasing the efficiency of cleaning operations. The packaging dimensions are 107 x 72 x 102 cm , ensuring ease of transport and storage.

In summary, the Idromatic ASTRA EVO INOX steam cleaner offers powerful performance and a range of features that make it suitable for various industrial cleaning applications .

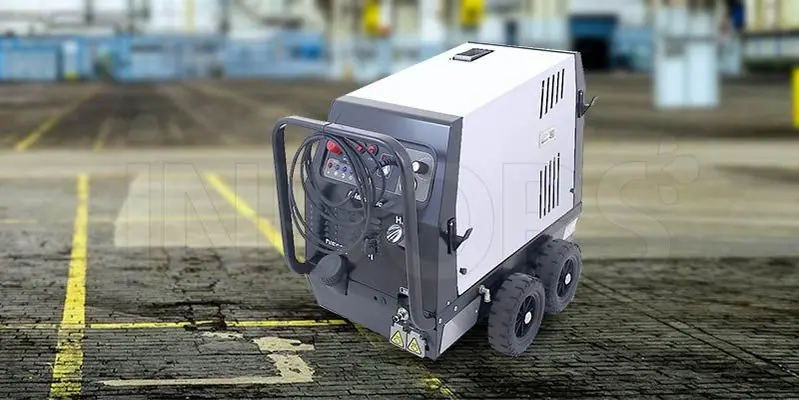

Fields of use

• Car washing both mobile and in washing stations
• Repair shops
• Graffiti and gum removal
• Industrial Machinery Cleaning
• Cleaning sports equipment
• Cleaning of environments and equipment for animals
• Urban weeding
• Food industry

OPTIONAL extra accessories

• Lance 120 cm
• High Pressure Hose 5m
• High Pressure Hose 5m
• 120cm lance and 6x6 brass brush kit
• 90cm lance and 6x6 brass brush kit
• 90 cm lance and 6x6 stainless steel brush kit
• 90 cm lance and 6x6 nylon brush kit
• Hydromatic Gloves
• Microfiber Cloth
• Hour meter

• Water softener kit (fittings + white mash filter)
• Lance eliminates grass
• Splitter for 2 operators
• 4 output splitter
• 4-way splitter (2 splitters + 2 hoses + 2 guns)
• Window cleaner kit 35 L
• Window cleaner kit 50 L
• 6 x 6 brass brush
• 6 x 6 stainless steel brush
• 6 x 6 nylon brush
• Chimney extension
• Curved spear
• Air Combo Kit
• Lance 120 cm
• 90cm spear
• 50cm spear
• Straight spear 45 cm
• Curved spear 25 cm
• High Pressure Hose 20m
• High Pressure Hose 15m
• High Pressure Hose 15m
• Steam Gun with Swivel Connector
• Detergent 10 L

Characteristics

• Frontal controls and attacks
• Diesel boiler
• Recommended for multiple users at the same time
• Double water supply option
• Self-diagnosis
• Warm-up time before use 5 minutes
• The machine can be powered by a small generator
• Operating pressure 9 bar
• Maximum steam flow rate 40 Kg/h
• Power supply 230V
• Power consumption 0.5 kW
• Steam outlets 2
• Thermal power 48 kW
• Maximum boiler temperature 220 °C
• Maximum water outlet temperature 180 °C
• Water tank 25 L
• Diesel tank 20 L
• Weight 149 Kg
• Dimensions 107 x 72 x 102 cm
