Pramac P3500i
Silent Inverter Generator

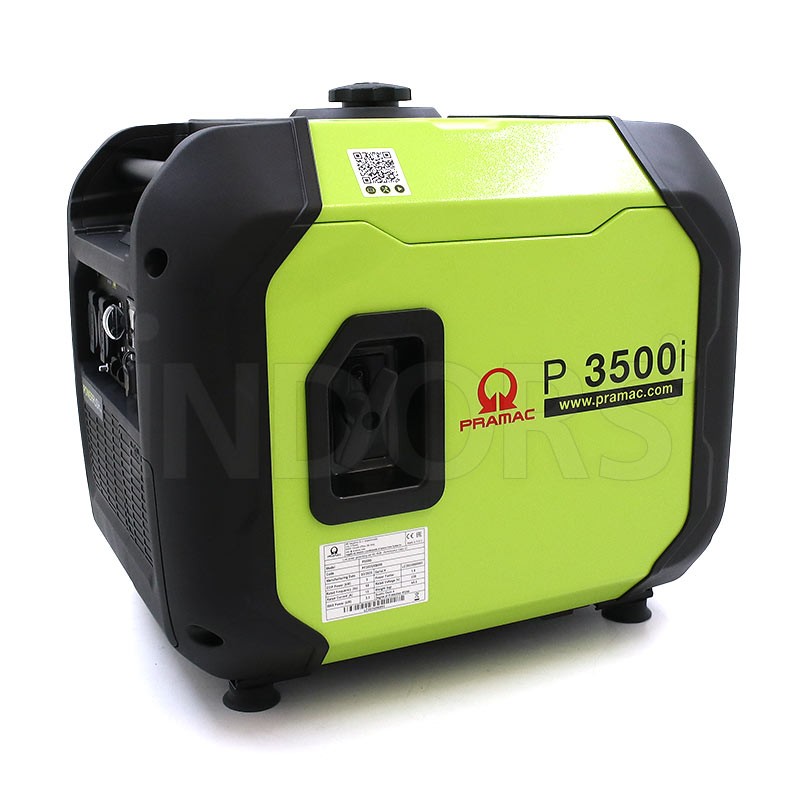

Pramac P3500i - 3.30 kW Silent Inverter Generator

The Pramac P3500i inverter generator is a power supply machine from the Powerrush range , branded Pramac. The generators in this range are designed to supply clean, stable energy which, by exploiting the inverter principle , is the ideal energy support for all electronic devices sensitive to voltage variations ( computers , smartphones , household appliances , and light bulbs ).

Ideal for campsites , homes , street markets , construction sites , for non-intensive domestic or semi-professional use .

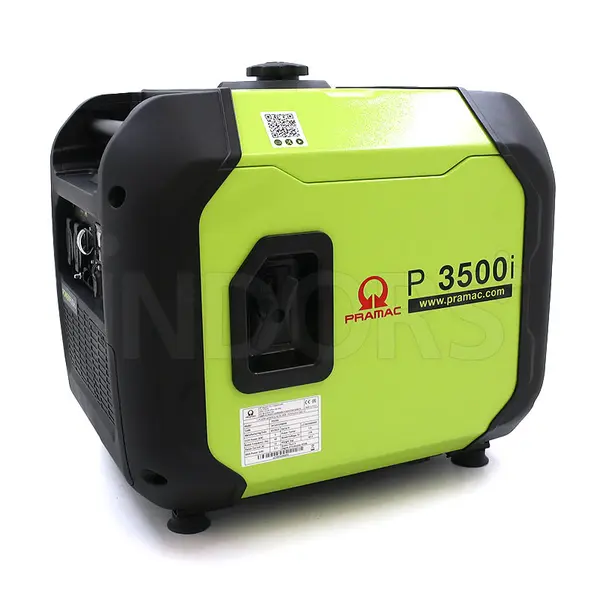

Structural features

Silent generator, Pramac P3500i is a closed generator which, with a weight of 49.5 kg for the compact dimensions of 60 x 45 x 55 cm, releases a maximum power of 3.3 kW . The energy produced by the Pramac P3500i generator is stable , at constant frequency and voltage regardless of variations in load and engine speed .

Robust frame , easily transportable Pramac P3500i is a closed generator resting on 4 feet, ideal for a wide range of applications. The quiet performance and automatic engine speed regulation allow significant fuel savings and a reduction in noise that brings the perceived noise level at 7 meters to only 61 dB (A).

Technical specifications

The Pramac P3500i is a 230V single-phase generator with a maximum power output of 3.3 kW . This petrol-powered generator takes advantage of the performance of a reliable 212cc , single-cylinder , air-cooled Loncin engine .

Recoil start with self-recovery and electric , this OHV overhead valve engine has air cooling , a 10 L tank and oil bath lubrication .

The engine supplied is powerful and fuel-efficient . Through a magnet generator, the engine speed is regulated based on the power delivered , significantly reducing fuel consumption ( 1.5 L/h at 75% load) and reducing the perceived noise level at 7m to 61 dB .

The engine door is lined with rubber to further reduce noise.

The P3500i battery life at 75% load is 6.5 hours .

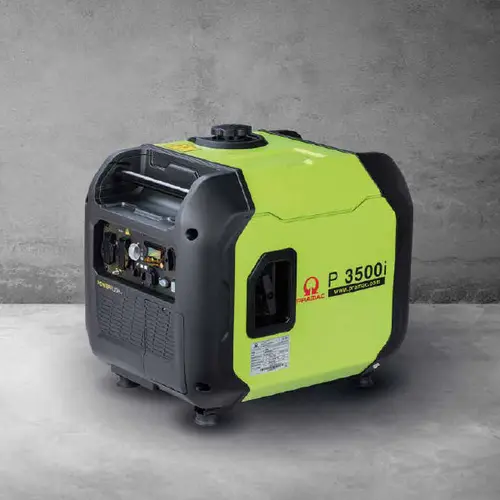

How Powerrush Works

During the start-up phase , motorized appliances and tools require a higher peak power than, for example, their maintenance during movement. When dealing with tools that require high absorption , such as household appliances , Pramac's Powerrrush system allows you to start and use multiple power tools simultaneously without incurring an overload shutdown .

This technology, mounted on the Pramac P3500i inverter generator , makes it the ideal generator for energy support in emergency situations , whether domestic or professional .

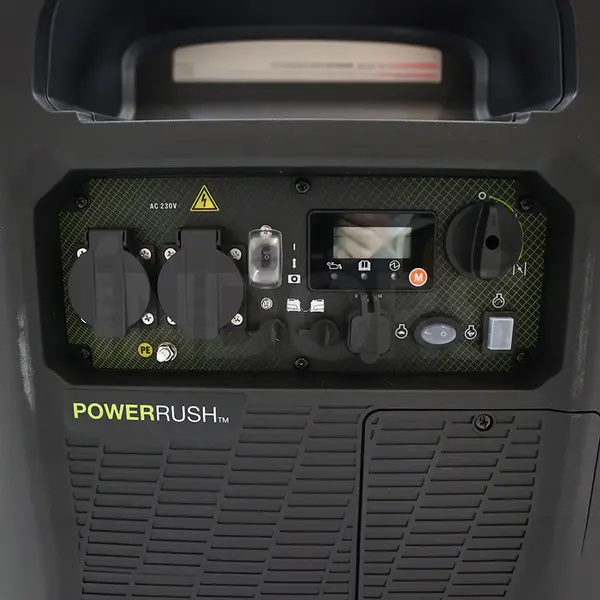

Control panel

The control panel of this Pramac P3500i tensioning machine allows the operator to have all functions under control , intuitively and quickly. It includes:

• Manual Start and Stop ;
• IP 44 protection panel;
• Voltmeter;
• Hour meter;
• Frequency meter;
• Economizer;
• Socket for parallel connection ;
• Two USB sockets;
• Two 230V Schuko sockets ;

The protections of this generator are:

• Oil Guard protection for low oil level;
• Short Circuit;
• Overload;
• Overvoltage ;
• Overheating

How to choose a portable generator

After describing the features of the Pramac P3500I/O portable generator, we'd like to provide some helpful advice on choosing the product that's best for you. First, let's focus on the following three points:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!

Characteristics

• Inverter generator set with stable power
• For sensitive electronic devices
• Compact and portable
• Closed and with rubber-coated engine door for very low noise
• 212cc Loncin OHV petrol engine
• Engine speed regulated based on power output - low fuel consumption
• 10L fuel tank
• Autonomy 75% of the load 6.5 hours
• Noise reduced to only 61 dB
• Powerrush technology for extra anti-overload power
• Complete control panel with USB and Schuko sockets
• Parallel connection socket

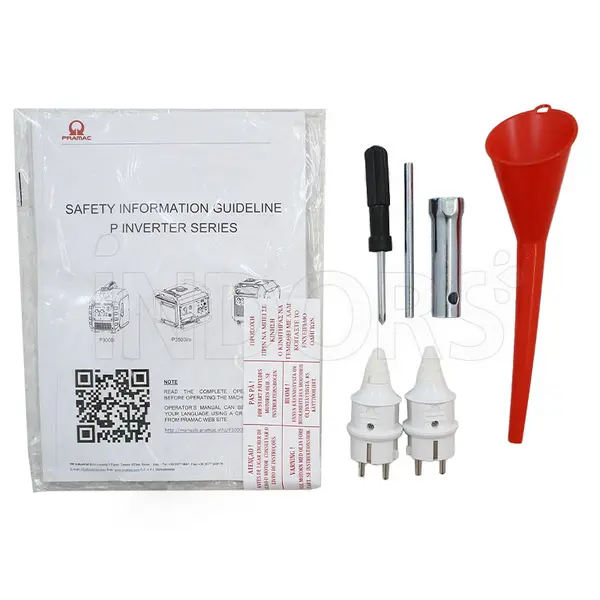

Standard Equipment
