Pramac P3500I/O
Generatore Inverter 3kW

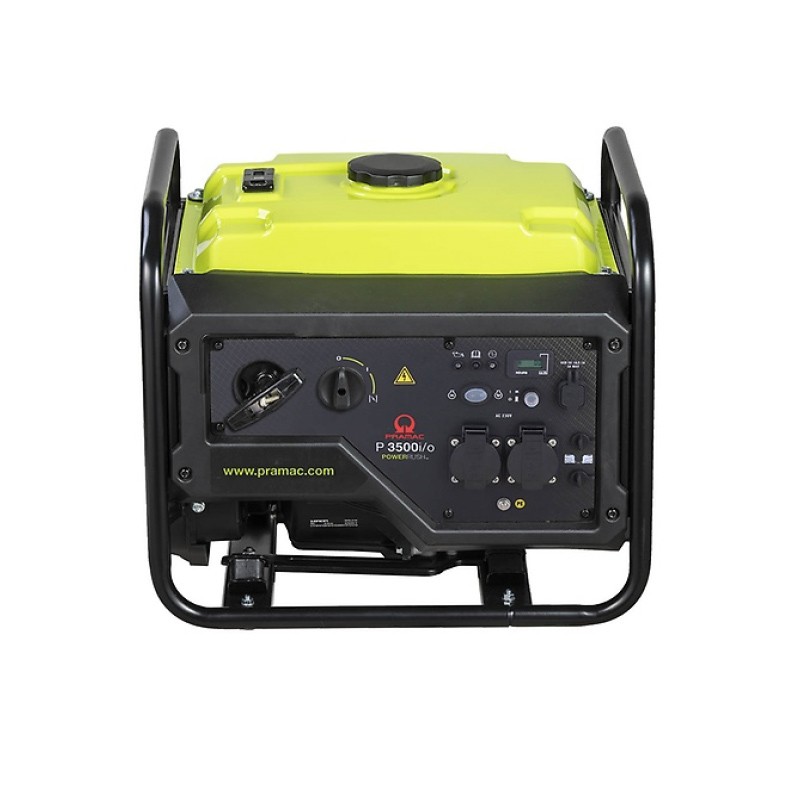

Pramac P3500I/O - 3.30 kW Lightweight Inverter Generator

The Pramac P3500I/O inverter generator is a power supply machine from the Powerrush range , branded Pramac. The generators in this range are designed to supply clean, stable energy which, by exploiting the inverter principle , is the ideal energy support for all electronic devices sensitive to voltage variations ( computers , smartphones , household appliances , and light bulbs ).

Ideal for campsites , homes , street markets , construction sites , for non-intensive domestic or semi-professional use .

Structural features

Weighing 34 kg , Pramac P3500I/O is a compact and lightweight generator, with small dimensions ( 49 x 43 x 41 cm ) and therefore easily transportable . The machine body is open , with a solid shock-proof metal tube , with two fixed handles for easy movement.

There are rubber guards, a fuel cap and a sight glass to check the fuel level .

Technical specifications

Pramac P3500I/O is a 230V single-phase generator, with a maximum power output of 3.3 kW . This generator runs on petrol , using a 212cc , single-cylinder , air-cooled Loncin engine . The OHV overhead valve engine has a nominal power of 7HP , a 9L tank and is oil lubricated .

The engine supplied is powerful and fuel-efficient . Through a magnet generator, the engine speed is regulated according to the power delivered , significantly reducing fuel consumption ( 1.6 L/h at 70% load). With an acoustic power of 96 dB, the perceived noise level at 7 m is 66 dB .

Battery life at 75% charge is 5.5 hours .

Inverter operation

Inverter operation consists precisely in producing electrical energy at a constant voltage, regardless of the load and motor speed. The Pramac P3500I/O uses an electronic converter that separates the input and output voltages.

The new Powerrush technology offers increased starting capacity to support high-energy-draining equipment , allowing for stable and reliable current support, without incurring shutdowns and malfunctions caused by overload .

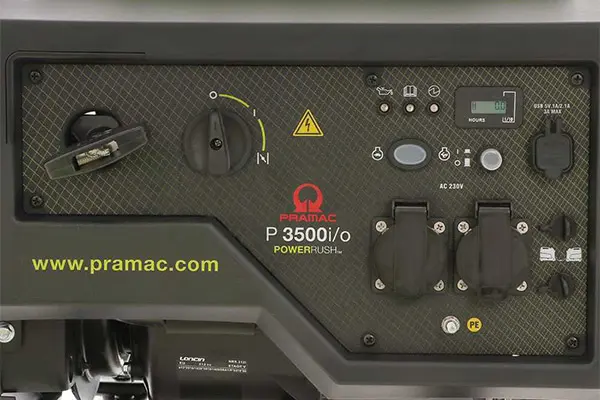

Control panel

The control panel of this Pramac P3500I/O tensioning machine allows the operator to have all the functions under control , intuitively and quickly. It includes:

• Manual Start and Stop ;
• IP 44 protection panel;
• Hour meter;
• Economizer;
• Socket for parallel connection ;
• Fuel level indicator;
• 5V 2A USB sockets;
• Two 230V 16A Schuko sockets ;

The protections of this generator are:

• Oil Guard protection for low oil level;
• Short Circuit;
• Overload;
• Overvoltage ;
• Overheating

Characteristics

• Inverter generator set with stable power
• For sensitive electronic devices
• Compact and portable
• With shock-absorbing tubular
• 212cc Loncin OHV petrol engine
• Engine speed regulated based on power output - low fuel consumption
• 9L fuel tank
• Autonomy 75% of the load 5.5 hours
• Noise level 96 dB (66 dB at 7 m distance)
• Powerrush technology for extra anti-overload power
• Complete control panel with USB and Schuko sockets
• Parallel connection socket

How to choose a portable generator

After describing the features of the Pramac P3500I/O portable generator, we'd like to provide some helpful advice on choosing the product that's best for you. First, let's focus on the following three points:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!

Standard Equipment

• Spark plug wrench
• Double male socket
• Oil with funnel
• Instruction booklet
