Ohashi ES73G
6.5 HP Petrol Wood Chipper
Electromagnetic Clutch

Ohashi ES73G - 6.5 HP Petrol Wood Chipper Made in Japan Honda GX 200

The Ohashi ES73G wood chipper is a highly efficient and compact wood chipper, designed to meet the needs of professionals and operators in the green maintenance sector. Thanks to its 6.5 HP (4.8 kW) Honda GX200 petrol engine, it offers reliable and consistent power for processing branches and woody material.

The petrol engine with a 3.1L tank ensures optimal autonomy, with a fuel consumption of only 1.7 L/h . The self-recoil starting system ensures quick and effortless starting, making the machine even more practical and immediate to use.

The Ohashi ES73G is a self-propelled tracked machine with mechanical transmission , perfect for working on various types of terrain, including uneven or sloping ones.

Made in Japan, with Italian assistance

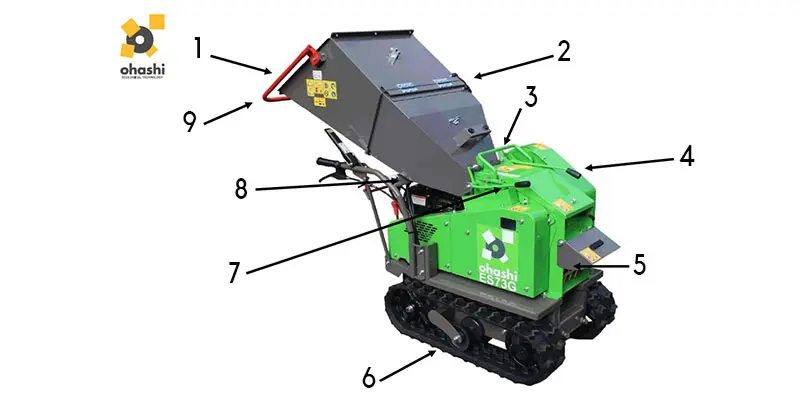

1. Product Entry
2. Space-saving foldable hopper
3. Side Lever Rotor Insertion
4. Power Supply Lift Lever
5. Wood Chip Exit
6. Tilting Track
7. Feed Roller Release Lever
8. Feed Roller Insertion and Safety Reset Button
9. Safety Handle with Immediate Stop

Functional specifications

Honda GX200 engine

The Ohashi ES73G wood chipper is designed for intensive use, ideal for professionals in the agricultural, forestry, and landscaping sectors. Thanks to its 6.5 HP (4.8 kW) Honda GX200 engine, it guarantees high performance and high operating efficiency.

Petrol-Powered Shredder with Advanced Cutting

This petrol-powered shredder features an electromagnetic clutch with a stress-relieving device that optimizes its operating efficiency. The material fed into the hopper is shredded by a cutting system consisting of two chipping knives and a control unit , ensuring effective and uniform shredding.

Maximum chipping diameter 70 mm

The maximum chipping diameter is 170 mm , allowing you to work with branches of considerable size. The feeder size of 180 x 90 mm allows for easy insertion of the material to be shredded.

Track Drive and Transmission System

The Ohashi ES73G is a self-propelled tracked shredder , equipped with a mechanical gearbox for easy mobility on various types of terrain. It offers a forward speed of 1.9 km/h and a reverse speed of 1.9 km/h , making it easy to move even in narrow spaces or on rough terrain. It has a speed selector.

The transmission system to the rotor is entrusted to V-belts , which ensure durability and resistance over time.

Innovative Hopper Design

A distinctive feature of the Ohashi ES73G is the new, even wider hopper design: a design designed to facilitate the passage of branches towards the roller and reduce the risk of blockages. This improvement ensures greater operational efficiency and fewer interruptions during use. Chip Ejection System

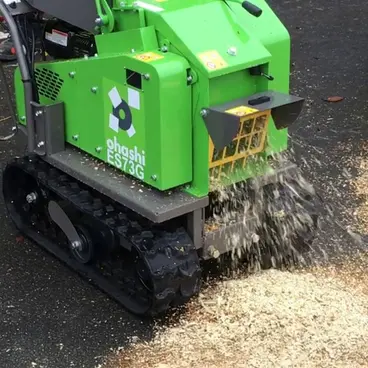

Expulsion of woodchip material

The shredded material is expelled through a forced ventilation launch tube, adjustable in height up to 540 mm and with a variable angle , allowing precise orientation of the chips according to operational needs.

Characteristics

• Tracked Wood Chipper with Hopper
• Honda GX200 engine
• 3.1 L tank
• Self-Recoil Starter
• Steering with Clutch Levers
• Self-propelled tracked vehicle with mechanical gearbox
• Speed Forward 1.9 km/h - Reverse 1.9 km/h
• Stress-Free Electromagnetic Clutch
• V-Belt Transmission
• Chipping Diameter Ø 70 m
• Cutting with 2 knives and 1 counter knife and 8 hammers
• Holes Ø 30 mm
• Launch Tube Height 54 cm
• Variable Launch Angle
• Wide Hopper for Passing Branches and Reduces Blockages
• Weight 220 kg

Watch the video

Demo video of similar model:

Ohashi: Leader in Agricultural Shredders and Chippers

Since 1988, Ohashi has developed low-impact agricultural and forestry products that offer high performance and low pollution. The Ohashi logo represents our relationship with the natural world, its limited resources, and how we can act responsibly for the benefit of future generations. Ohashi chippers are quickly becoming the benchmark compact tracked chippers. Products are Made in Japan, with Italian support.
