Ohashi ES101GH
9 HP Tracked Wood Chipper
With Large Hopper
MPN: ES101GH
Warranty 2 years
14 days to change your mind
Shipped on Pallet

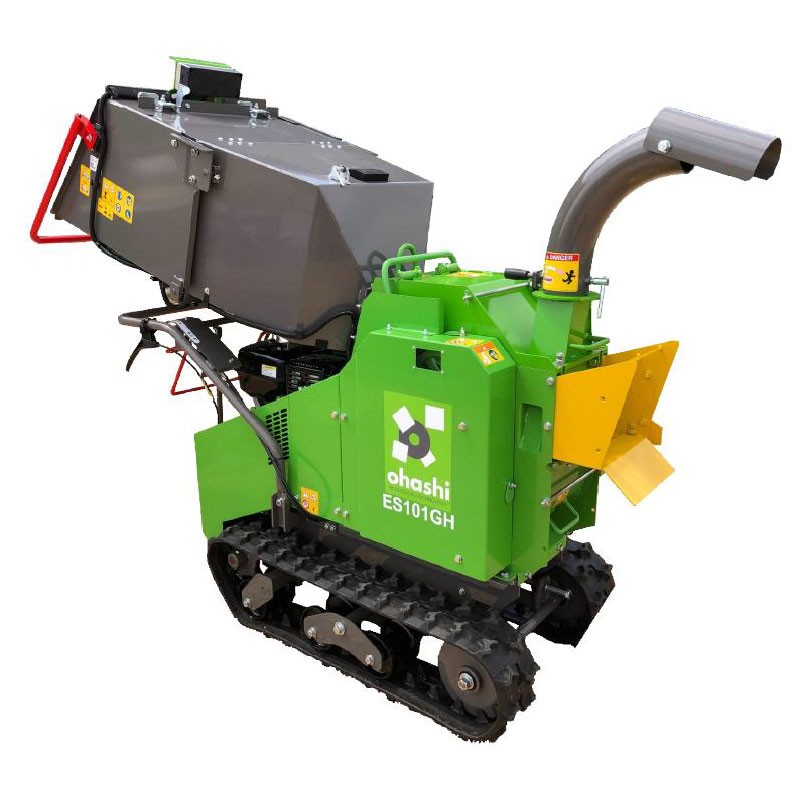

Ohashi ES101GH - 9 HP Petrol Wood Chipper
The Ohashi ES101GH wood chipper is a professional machine designed for quickly and efficiently reducing and disposing of branches and plant debris . Made in Japan , it is synonymous with quality, reliability, and high performance, making it ideal for gardeners, landscaping contractors, and agricultural and forestry workers.
The Ohashi ES101GH is equipped with a Honda GX270 petrol engine, a robust and high-performance unit capable of delivering 9.0 HP (6.7 kW) of power . Thanks to the 5.3 L tank, fuel consumption is optimised at 2.5 L/h , ensuring adequate autonomy for prolonged working sessions.

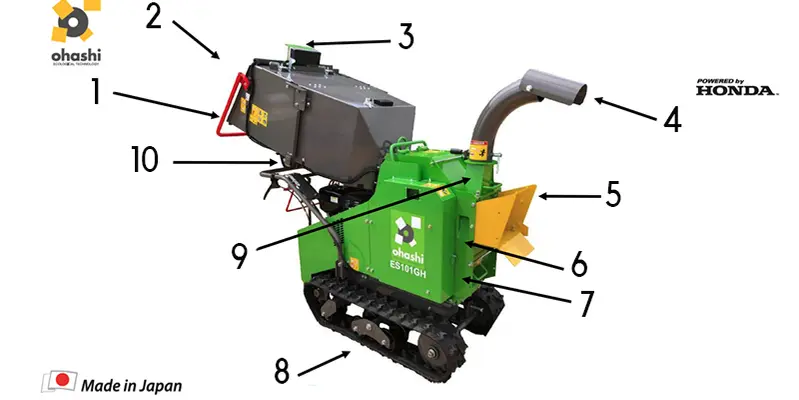

Made in Japan, with Italian assistance
- Immediate Stop Safety Grip
- Product Entry
- Anti-Stress Buttons and Roller Control
- Adjustable Expulsion Tube
- Low Drain Application
- Internal Screening
- Internal Booster Fan
- Tilting Track
- Opening for Maintenance of Knives and Counter-Knife Blades
- Space-Saving Folding Hopper
Functional specifications
Petrol-Powered Shredder with Advanced Cutting
This petrol-powered shredder features hydraulic control to prevent overloads and optimize operating efficiency. The material fed into the hopper is shredded by a cutting system consisting of two chipping knives , a control blade, and eight hammers , ensuring effective and uniform shredding.
Maximum chipping diameter 110 mm
The maximum chipping diameter is 110 mm , allowing you to work with branches of considerable size. The feeder size of 200 x 123 mm allows for easy insertion of the material to be shredded.
Track Drive and Transmission System
The Ohashi ES101GH is a self-propelled tracked shredder , equipped with a mechanical gearbox for easy mobility on various types of terrain. It offers a forward speed of 1.8 km/h and a reverse speed of 1.4 km/h , making it easy to move even in tight spaces or on rough terrain. The rotor is driven by V-belts , ensuring durability and resistance over time.
Innovative Hopper Design
A distinctive feature of the Ohashi ES101GH is the new, even wider hopper design: a design designed to facilitate the passage of branches towards the roller and reduce the risk of blockages. This improvement ensures greater operational efficiency and fewer interruptions during use.
Wood Chip Expulsion System
The shredded material is expelled through a forced ventilation launch tube, adjustable in height up to 1350 mm and with a variable angle of up to 270° , allowing precise orientation of the chips according to operational needs.
Characteristics
- Tracked shredder with hopper
- Honda GX270 petrol engine
- 5.3 L tank
- Recoil Start/Electric Start
- Same with clutch levers
- Self-propelled
- Speed Forward 1.8 km/h - Reverse 1.4 km/h
- Stress-Free Hydraulic Control
- V-Belt Transmission
- Chipping Diameter Ø 110 m
- Cutting with 2 knives and 1 counter knife and 8 hammers
- Holes Ø 70 mm
- Forced Ventilation Launch Tube
- 270° Variable Launch Angle
- Wide Hopper for Passing Branches and Reduces Blockages
- Weight 390 kg
Watch the video
Demo video of similar model:
Ohashi: Leader in Agricultural Shredders and Chippers
Since 1988, Ohashi has developed low-impact agricultural and forestry products that offer high performance and low pollution. The Ohashi logo represents our relationship with the natural world, its limited resources, and how we can act responsibly for the benefit of future generations. Ohashi chippers are quickly becoming the benchmark compact tracked chippers. Products are Made in Japan, with Italian support.
Technical Data
| Motor | Honda GX270 petrol |
| Rotor Transmission | V-belt |
| Power | 9 HP - 6.7 kW |
| Petrol Tank | 5.3 L |
| Consumption | 2.3 L/h |
| Start-up | Self-winding |
| Cutting System | 2 knives + 1 counter knife + 8 hammers |
| Chipping Diameter | Ø 110 mm |
| Exhaust Height | 1350 mm |
| Launch Tube Angle | Variable at 270° |
| Movement | Tracks |
| Speed | Forward 1.8 km/h; Reverse 1.4 km/h |
| Series screen | Hole diameter 30 mm |
| Outlet Pipe | Launch Tube - Forced Ventilation |

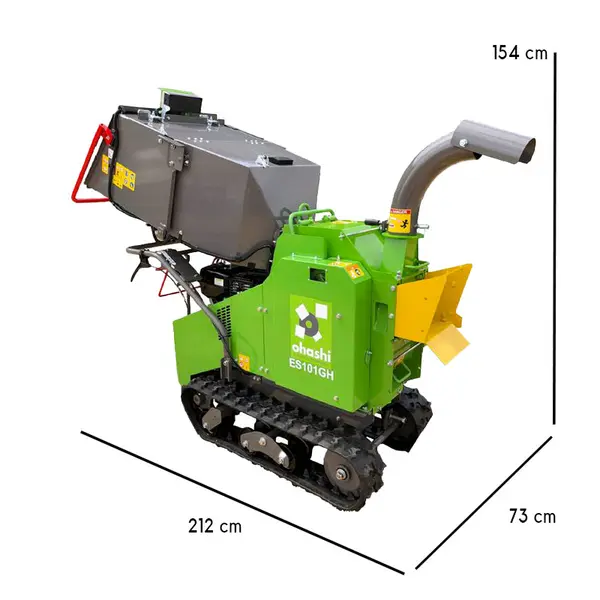

| Size in Use | 212 x 73 x 154 cm |
| Transport Size | 162 x 73 x 167 cm |
| Weight | 390 kg |
Technical Data
| Motor | Honda GX270 petrol |
| Rotor Transmission | V-belt |
| Power | 9 HP - 6.7 kW |
| Petrol Tank | 5.3 L |
| Consumption | 2.3 L/h |
| Start-up | Self-winding |
| Cutting System | 2 knives + 1 counter knife + 8 hammers |
| Chipping Diameter | Ø 110 mm |
| Exhaust Height | 1350 mm |
| Launch Tube Angle | Variable at 270° |
| Movement | Tracks |
| Speed | Forward 1.8 km/h; Reverse 1.4 km/h |
| Series screen | Hole diameter 30 mm |
| Outlet Pipe | Launch Tube - Forced Ventilation |
| Size in Use | 212 x 73 x 154 cm |
| Transport Size | 162 x 73 x 167 cm |
| Weight | 390 kg |
