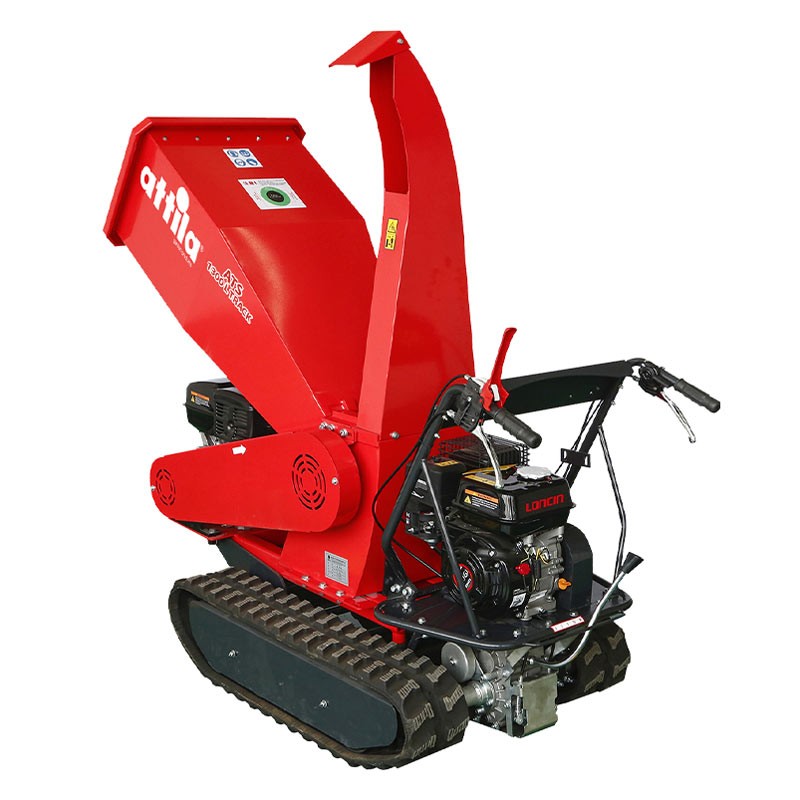

Attila ATS 1300 L Track
Petrol Wood Chipper with 420 cc Loncin Engine

Attila ATS 1300 L Track - Petrol Wood Chipper with 420 cc Loncin Engine

The Attila ATS 1300 L Track is a professional petrol-powered chipper designed for intensive use in forestry , agriculture , and professional green space maintenance . It is designed for operators in the sector who require high shredding performance combined with maximum mechanical reliability and ease of movement even on complex terrain. The presence of rubber tracks and a dedicated tracked transporter make the machine ideal for forestry sites, hilly areas, and uneven surfaces.

The operational heart of the Attila ATS 1300 L Track is the powerful 420 cc Loncin G420F OHV engine , capable of developing a power of 16 HP , equal to 11.8 kW , guaranteeing a shredding capacity of up to 100 mm in diameter. The cutting system with two blades plus a counterblade ensures uniform and continuous chipping, while the side discharge with a deflector that can be adjusted up to 85° allows for precise control of the flow of processed material, optimising operations in any operating context.

TECHNICAL SPECIFICATIONS

The Attila ATS 1300 L Track is powered by a Loncin G420F OHV petrol engine with recoil starter for quick and easy start-up even in difficult environmental conditions. The engine has a displacement of 420 cc and is supported by a 6 L fuel tank , sized to ensure long continuous working autonomy without frequent refueling stops.

In terms of performance, the shredder reaches a maximum shredding diameter of 100 mm , managed by a professional cutting system consisting of 2 high-strength blades and 1 counterblade . The structure is designed to support heavy loads, with a total weight of 336 kg which contributes to stability during operations. The unit is supplied on an independent tracked transporter with a 196 cc GT200 OHV engine, equipped with 3 forward gears and 1 reverse gear , which allows for precise and controlled movement even on slopes and rough terrain.

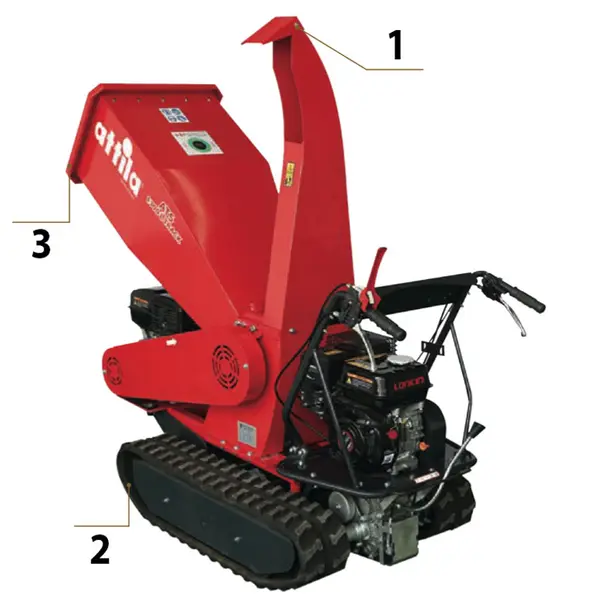

1. Deflector adjustable max 85°
2. Track width 18 cm
3. 34x47 cm feeding hopper

FUNCTIONAL SPECIFICATIONS

High Performance Professional Chipping System

The Attila ATS 1300 L Track shredding system is designed to efficiently process large-diameter branches, prunings, and woody debris. The combination of professional blades and counterblade ensures a clean and consistent cut, reducing vibration and improving chip quality, making it ideal for professional and industrial applications.

Large and Optimized Feed Hopper

The 34x47 cm feeding hopper , with a loading height of 116 mm , is designed to facilitate the introduction of even bulky material, improving operator ergonomics and increasing productivity. The generous size of the mouth allows for processing complex branches without pre-cutting, optimizing operating times in professional contexts.

Side Exhaust with Adjustable Deflector

The 162 cm high side discharge , equipped with a deflector that can be rotated up to 85° , allows the shredded material to be precisely directed, facilitating loading onto trailers or controlled distribution on the ground. This feature makes the Attila ATS 1300 L Track particularly versatile on construction sites where accurate control of the wood chip output flow is required.

Tracked Mobility for Difficult Terrain

The 18 cm wide rubber tracks ensure excellent traction and stability on uneven, muddy, or sloping surfaces. The tracked transporter with its dedicated motor allows for smooth and safe movements, improving the machine's accessibility in wooded areas and reducing operator fatigue during movement.

Advanced Operational Security

The Attila ATS 1300 L Track is equipped with an emergency stop system , a key feature for professional use in compliance with safety standards. This device allows the machine to be stopped immediately if necessary, protecting the operator and reducing the risk of accidents during intensive shredding operations.

Characteristics

• Professional wood chipper
• Petrol powered
• Loncin G420F OHV 420 cc engine
• Cut 10 cm
• Estimated hourly output 3÷6 m³/h
• Engine speed 3600 RPM
• 2 blade, 1 counter blade system
• Adjustable exhaust
• Crawler
• Weight 336 kg
• Made in Italy
