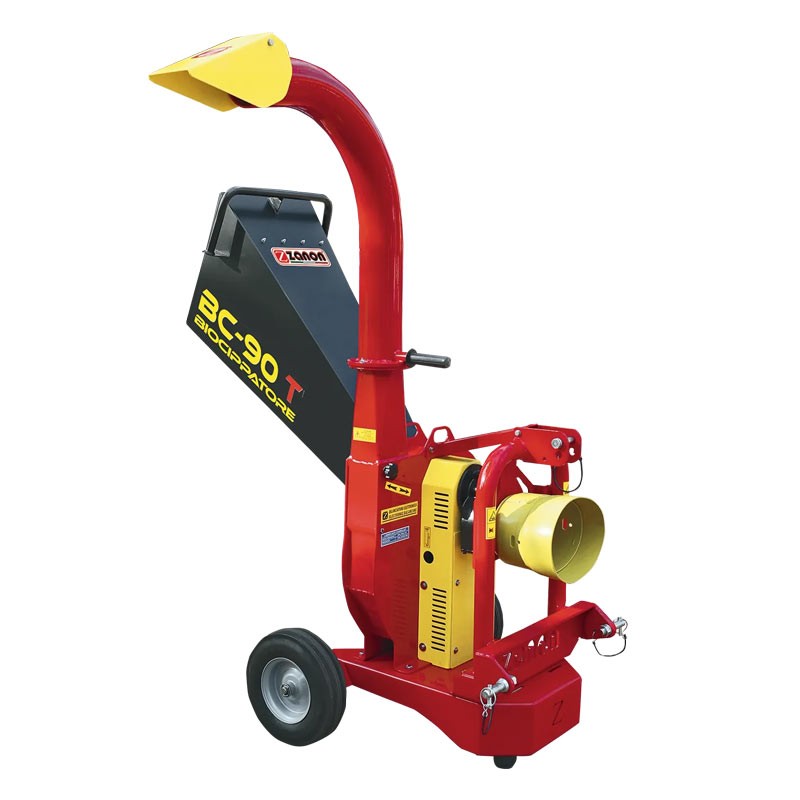

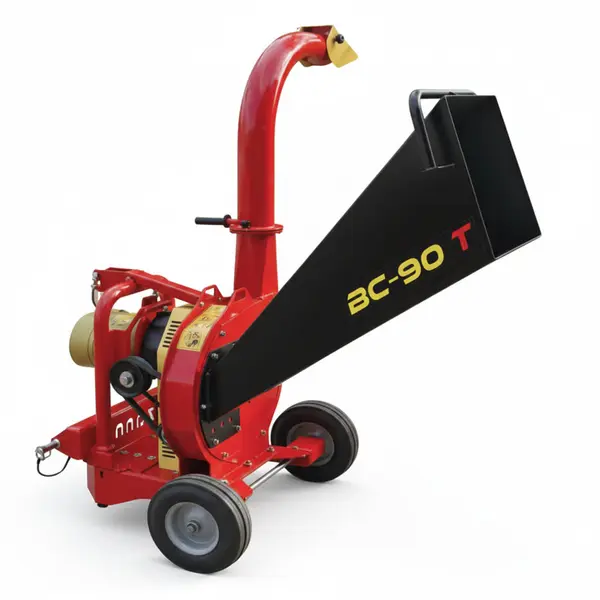

Zanon BC 90-T
20-50 HP Cardan Shaft Wood Chipper with 10 cm Cutting Width

Zanon BC 90-T - PTO Driven Wood Chipper for 20-50 HP Tractors with 10 cm Cutting Diameter

The Zanon BC 90-T wood chipper is a professional machine designed for use with tractors from 20 to 50 HP , intended for farmers , forestry workers and landscaping professionals . Thanks to its robust structure and large hopper , it allows you to shred branches , brushwood and pruning residues up to a maximum diameter of 10 cm , significantly reducing the volume of plant waste. This tractor-mounted wood chipper guarantees efficient and safe processing, with an adjustable chute that facilitates the collection of the shredded material, making it ideal for intensive professional use .

The BC 90-T stands out for its maneuverability and ability to process various types of branches and foliage , ensuring a five- or six-fold reduction in residue volume. The use of high-quality steel blades and a professional cutting system allows for a uniform and easily manageable final product, optimizing the chipping process and reducing field work times.

T-40 RL Cardan NOT INCLUDED.

TECHNICAL SPECIFICATIONS

The Zanon BC 90-T wood chipper is powered by a category I-II 3-point hitch and belt drive , with an oil-bath gearbox and T-40 RL type cardan shaft connection , compatible with tractors from 20 to 50 HP . The tractor engine must be set to 2850 RPM to ensure optimal performance, allowing the wood chipper to operate continuously and reliably even on harder materials such as dry branches or resistant brushwood. The device is equipped with puncture-proof wheels and safety guards compliant with CE regulations , ensuring maximum safety during professional use.

In terms of performance, the BC 90-T is designed to shred branches up to 10 cm in diameter , with an hourly production of 5-6 m³/h , thanks to the cutting system consisting of 10 hammers , 2 blades and 2 repositionable counterblades . The adjustable discharge , positioned 170 cm from the ground , and the adjustable refining sieve allow the final product to be adapted to different operational needs. The combination of belt drive , steel blades and professional counterblades guarantees constant efficiency and a long life of the machine even in demanding professional contexts.

FUNCTIONAL SPECIFICATIONS

High efficiency professional cutting system

The Zanon BC 90-T wood chipper features an advanced cutting system with high-quality steel blades , supported by 10 hammers and 2 repositionable counterblades . This allows for uniform chipping and reduces waste volume by up to five or six times, ensuring efficiency and precision when processing branches, brushwood, and pruning residues.

Larger hopper and adjustable discharge duct

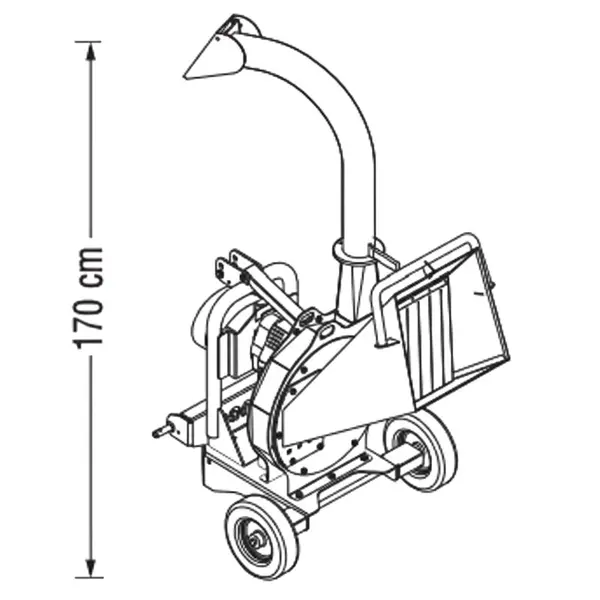

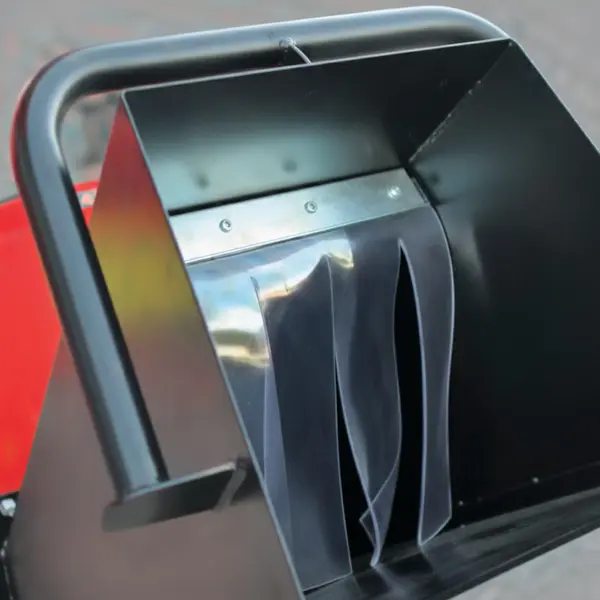

The large hopper facilitates the loading of bulky and diverse material, while the adjustable discharge chute, 170 cm above the ground, allows for precise dispensing of the shredded material. This solution increases productivity, reduces harvesting times, and offers operational flexibility in professional settings.

Safe and reliable transmission and connection

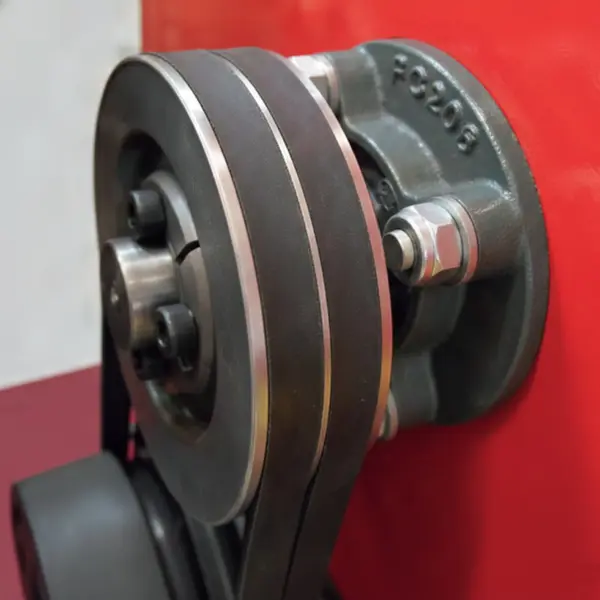

The belt drive and T-40 RL cardan shaft ensure efficient power transmission from the tractor to the shredder, allowing for safe operation even on hard and resistant materials. The oil-bath gearbox reduces wear and maintenance costs, ensuring long-term reliability.

Adjustable sieve for refining the material

The adjustable refining sieve allows you to control the particle size of the chopped material, offering the possibility of obtaining finer or coarser chips depending on your operational needs. This feature is particularly useful for professionals who require a specific end product for composting, biomass, or other agricultural applications.

CE certified protection and safety

The BC 90-T is equipped with all the safety features required by CE regulations , ensuring safe use even in professional and intensive contexts. Puncture-proof wheels and a robust construction complete the package, ensuring safety and ease of handling, making the machine ideal for professionals in the forestry and agricultural sectors.

Characteristics

• Professional wood chipper
• Cardan shaft drive
• For 20÷50 HP tractors
• Cut 10 cm
• Hourly output 5÷6 m³/h
• Engine speed 2850 RPM
• System of 2 blades, 2 counter blades, 10 hammers
• Repositionable 4-edge counterblades
• Adjustable exhaust
• Puncture-proof wheels
• Adjustable refining sieve
• Safety protections compliant with CE regulations
• Noise level 112 dB
• Weight 220 kg
• Made in Italy
