Zanon BC 90-S Honda
13 HP Petrol Wood Chipper with 9 cm Cutting Width

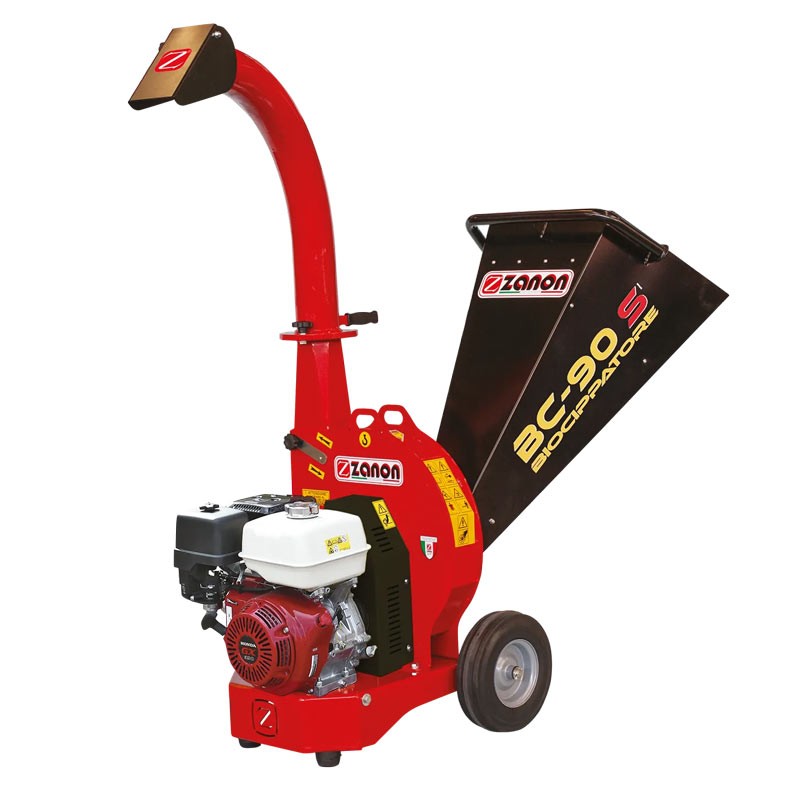

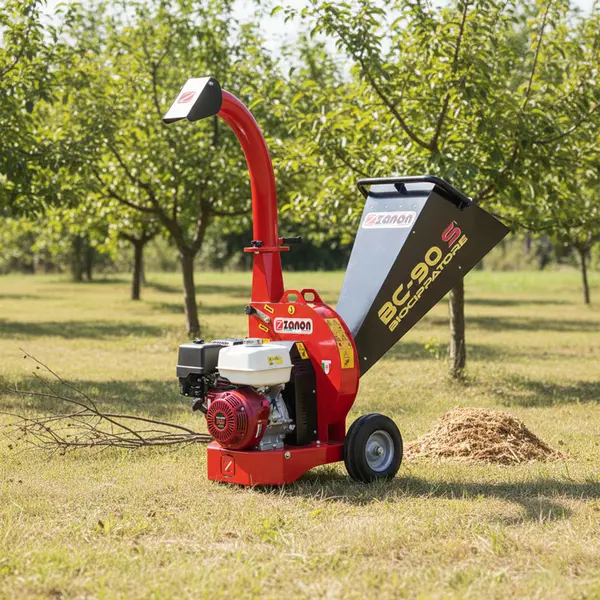

Zanon BC 90-S - Wood chipper with 13 HP Honda engine and 9 cm cutting diameter

The Zanon BC 90-S is a professional wood chipper designed for intensive use in agriculture , forestry and maintenance , ideal for specialized operators who need a reliable, stable and high-performance machine. Equipped with a 13 HP Honda GX390 petrol engine with expansion clutch , it guarantees efficient shredding management thanks to high torque and excellent operational continuity. The ability to shred branches up to Ø 9 cm and a productivity of 5-6 m³/h make this wood chipper an advanced solution for those who need to quickly reduce the volume of plant waste.

The machine stands out for its oversized hopper and discharge duct 170 cm from the ground , designed to speed up operations and improve the expulsion flow of the shredded material. The solid structure, puncture-proof wheels , and compliance with CE standards complete a product designed for high performance and long life.

TECHNICAL SPECIFICATIONS

The Zanon BC 90-S is powered by a Honda GX390 engine , a professional 13 HP petrol engine capable of reaching speeds of up to 3100 rpm , ensuring stable power delivery and ideal for continuous operation. The expansion clutch facilitates starting, reduces initial effort and optimizes the belt drive, allowing the cutting system to always operate in the best mechanical conditions.

The shredding unit develops an ideal working capacity for high volumes, thanks to the maximum cutting diameter of 9 cm , obtained through a system consisting of 10 hammers , 2 blades and 2 counterblades . Productivity of up to 6 m³/h allows the organic material to be reduced into homogeneous pieces, supported by the adjustable refining sieve that allows you to select the desired degree of shredding. The machine also complies with Directive 2000/14/EC on the limitation of environmental noise.

FUNCTIONAL SPECIFICATIONS

High efficiency professional cutting system

The Zanon BC 90-S cutting system uses high-quality steel blades combined with repositionable counterblades , a system designed to ensure rapid and even shredding even on particularly tough or fibrous branches. The combination of the hammers and the adjustable sieve allows for consistent particle size distribution and improved output quality.

Optimized performance with belt drive

The belt drive absorbs any impacts on the more resistant materials, thus protecting both the motor and the blade assembly. This solution increases the machine's overall reliability and extends the life of the entire mechanical system, ensuring continuity even during particularly demanding jobs.

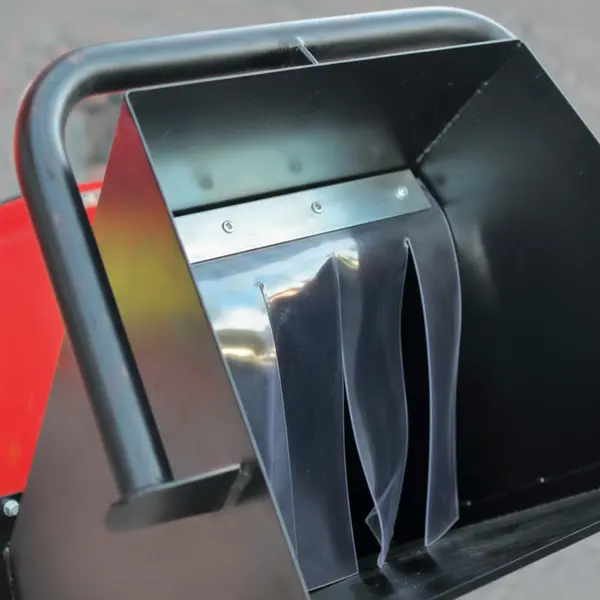

Larger hopper for easier loading

The oversized hopper is designed to easily accommodate bulky branches and irregular plant material, reducing downtime between loads. Its shape optimizes flow to the rotor and facilitates continuous loading by a professional operator.

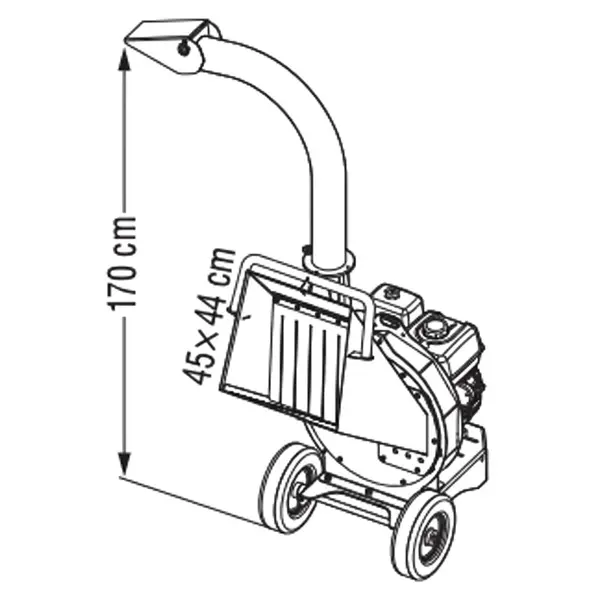

Adjustable and raised drain at 200 cm

The discharge chute , positioned 170 cm from the ground , ensures the expulsion of shredded material, ideal for direct loading into skips, trailers, or elevated containers. The adjustable discharge chute allows the flow to be directed precisely, improving safety and making the operation more orderly and faster.

Robust structure and easy mobility

The professional shredder's rugged construction combines with puncture-proof wheels , designed to handle rough terrain and complex operating conditions without the risk of punctures. The ergonomic design makes it easier to move, allowing the operator to quickly move it to different work areas.

Safety compliant with CE standards

The shredder is equipped with CE-certified safety guards , designed to ensure maximum safety during all phases of operation. These devices protect the operator without compromising handling and the fluidity of the work process.

Characteristics

• Professional wood chipper
• Petrol powered
• Honda GX390 engine
• Power 13 HP
• Cut 9 cm
• Hourly output 5÷6 m³/h
• Engine speed 3100 RPM
• System of 2 blades, 2 counter blades, 10 hammers
• Adjustable exhaust
• Puncture-proof wheels
• Adjustable refining sieve
• Safety protections compliant with CE regulations
• Noise level 112 dB
• Weight 210 kg
• Made in Italy
