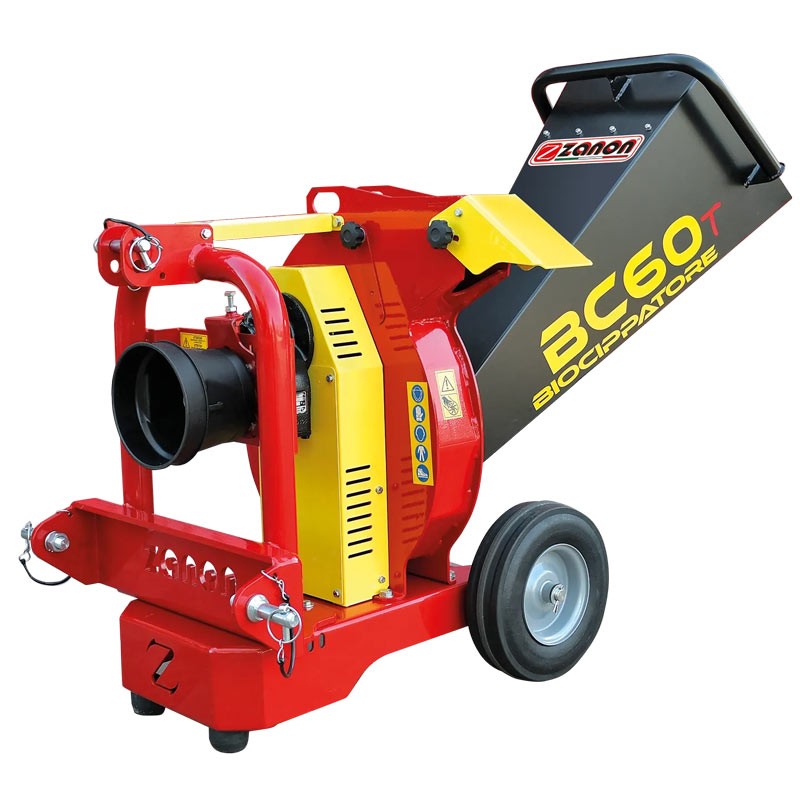

Zanon BC 60-T
20-50 HP Cardan Shaft Wood Chipper with 7 cm Cutting Width

Zanon BC 60-T - PTO Driven Wood Chipper for 20-50 HP Tractors with 7 cm Cutting Diameter

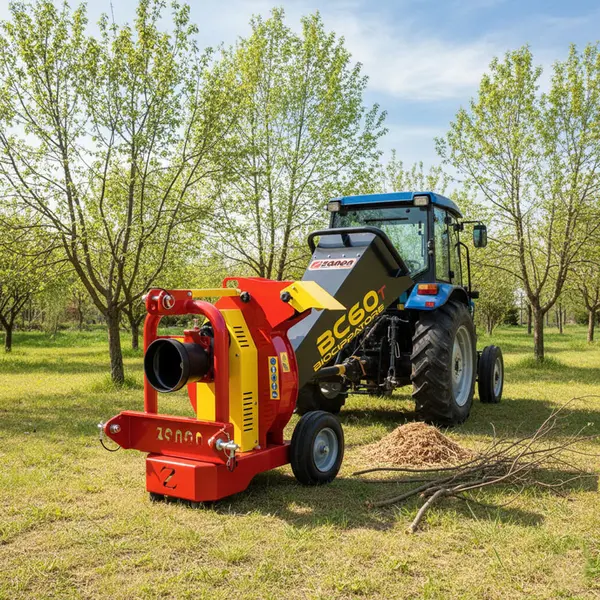

The Zanon BC 60-T is a PTO-driven wood chipper designed for professional use, ideal for agricultural workers , green maintenance workers and professionals who require a compact yet high-performance machine for use with 20-50 HP tractors. This model allows you to efficiently process branches , brushwood and pruning residues up to a maximum diameter of 7 cm , ensuring a significant reduction in the volume of the material, estimated at a ratio of 5/6 times. The presence of a high-performance cutting system and a larger hopper makes this wood chipper particularly effective even in intensive work contexts.

The solid structure, excellent handling and the exhaust duct positioned 70 cm from the ground make the Zanon BC 60-T a functional solution for those seeking reliability, productivity and operational continuity, with a set of professional standard equipment that expands its versatility of use.

T-40 RL Cardan NOT INCLUDED.

TECHNICAL SPECIFICATIONS

Powered by a cardan shaft , the BC 60-T tractor-mounted chipper is compatible with tractors ranging from 20 to 50 HP , ensuring stable and safe power transmission thanks to the integrated belt system. The Category I-II three-point hitch ensures quick attachment and perfect compatibility with most small and medium-powered tractors intended for agricultural and landscaping activities.

The machine's performance is expressed through an operating efficiency of 4-5 m³/h , supported by a rotation speed of 2850 RPM and the presence of a cutting set consisting of 10 hammers , 2 blades , and 2 repositionable counterblades . The maximum cutting diameter is set at 7 cm , a parameter that allows for efficient use with different types of plant material, from fresh residues to the most compact branches, supported by an adjustable sieve that optimizes the particle size of the resulting wood chips.

FUNCTIONAL SPECIFICATIONS

High efficiency professional cutting system

The Zanon BC 60-T cutting system is designed to ensure maximum performance thanks to a group of knives and blades made of the highest quality steel. The arrangement of the cutting elements allows for uniform wood chips and significantly reduces the strain on the PTO, ensuring stable operation even during prolonged operations. The repositionable counterblades ensure consistent cutting quality over time.

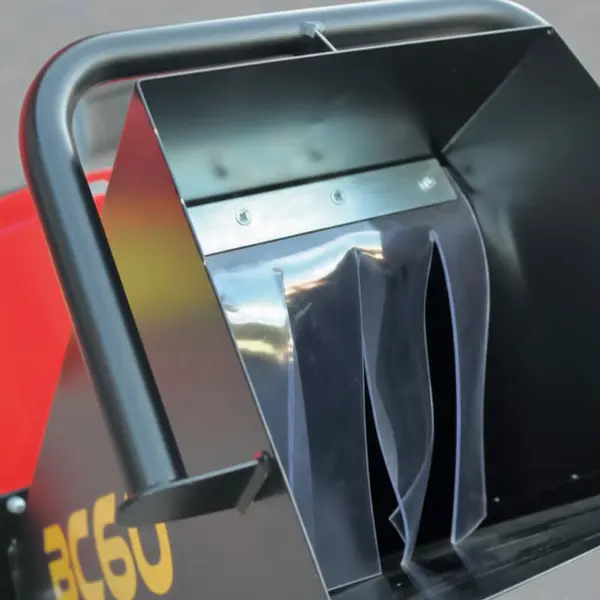

Larger hopper for quick feeding

The larger hopper facilitates material loading, improving operational continuity, especially when working with bulky branches or mixed pruning residues. Its shape is designed to optimize material flow to the cutting unit, reducing potential blockages and increasing work cycle productivity.

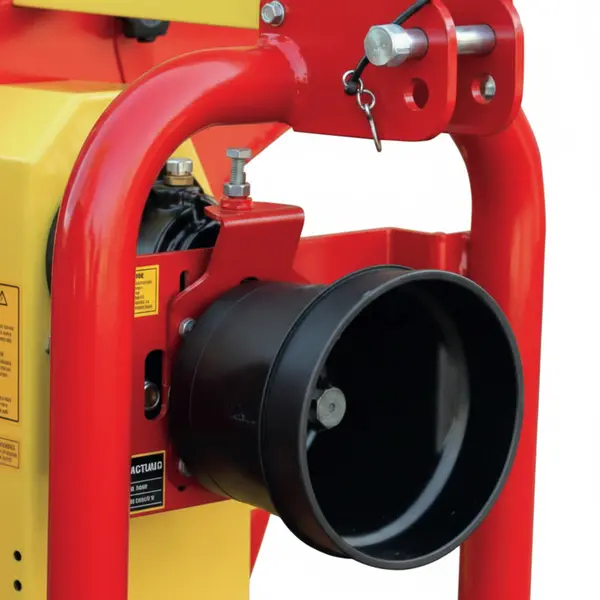

Adjustable exhaust duct for optimal wood chip management

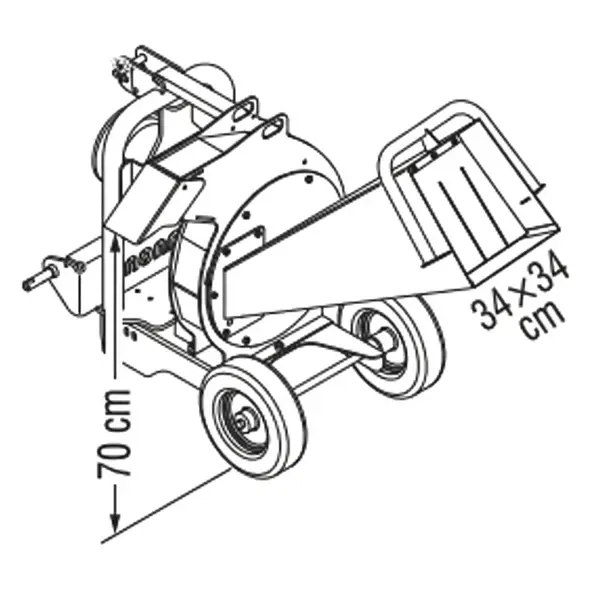

The 70 cm high discharge chute is designed to be fully adjustable, allowing for precise direction of the shredded material, adapting to different operating configurations and facilitating unloading into containers, carts, or specific areas of the job site. This flexibility ensures optimal wood chip management, making the machine efficient even in the tightest spaces.

Easy to handle structure with puncture-proof wheels

The ergonomics of the Zanon BC 60-T wood chipper are further enhanced by the presence of puncture-proof wheels that facilitate movement on uneven or uneven terrain. The compact structure, combined with safety devices compliant with CE regulations and certification according to Directive 2000/14/EC on the limitation of environmental noise, ensures practical, safe use, compliant with the standards required by industry professionals.

Characteristics

• Professional wood chipper
• Cardan shaft drive
• For 20÷50 HP tractors
• Cut 7 cm
• Hourly output 4÷5 m³/h
• Engine speed 2850 RPM
• System of 2 blades, 2 counter blades, 10 hammers
• Repositionable 4-edge counterblades
• Adjustable exhaust
• Puncture-proof wheels
• Adjustable refining sieve
• Safety protections compliant with CE regulations
• Noise level 115 dB
• Weight 140 kg
• Made in Italy
