Garland Chipper 780 QG-V23
196cc 6cm Petrol Wood Chipper

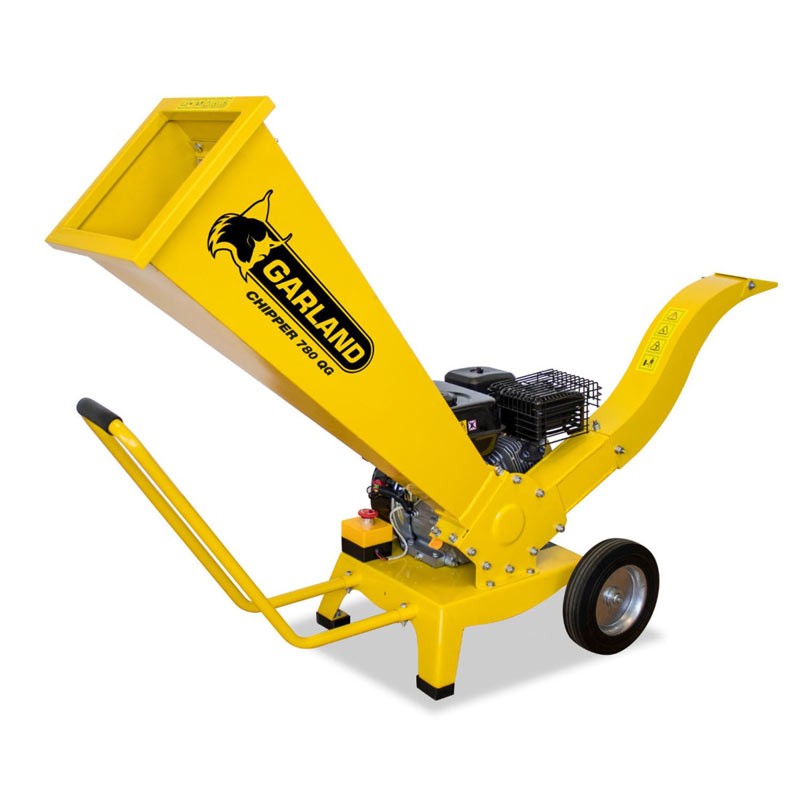

Garland Chipper 780 QG-V23 - Professional 6 cm Petrol Wood Chipper

The Garland Chipper 780 QG-V23 is a professional petrol-powered wood chipper designed for landscaping workers , maintenance workers , and agricultural and forestry professionals who require a robust, efficient, and reliable machine for the intensive management of plant residues. Equipped with a 196 cc 4-stroke petrol engine , this shredder guarantees constant performance even under prolonged load, offering a power output of 4 kW (5.4 HP) and a maximum torque of 13.5 Nm . The machine stands out for its shredding capacity of up to 60 mm in diameter , making it ideal even for palm trees and fibrous woods that are difficult to treat with traditional shredders.

Thanks to its shredding system with a roller equipped with opposing blades and a counterblade on the frame, the Garland Chipper 780 QG-V23 ensures uniform and precise shredding of material, significantly reducing the volume of waste. Its SC System safety system , centrifugal clutch for easy starting, and puncture-proof wheels confirm its highly professional nature, while also guaranteeing safety, ease of use, and a long operating life.

Technical Specifications

The Garland Chipper 780 QG-V23 is equipped with a 196 cc Garland 4-stroke 4-stroke petrol engine , running on higher octane fuel (90+) to optimise combustion and energy efficiency. The engine delivers 4 kW (5.4 hp) of maximum power at 3600 rpm , with a torque of 13.5 Nm , ensuring immediate response even on large branches. Specific fuel consumption at maximum power is less than 395 g/kWh , a sign of optimised efficiency. The 3.6 L fuel tank and 0.6 L oil sump ensure extended working autonomy, reducing the need for frequent refuelling during operating sessions.

Performance-wise, the shredder features a 191 mm rotor capable of reaching a rotation speed of 2800 rpm , with two 70 mm blades arranged opposite each other and a counterblade that optimizes cutting. This shredding system allows for processing branches up to 60 mm in diameter with a smooth shredded finish. The machine, with a total weight of 50 kg , offers an optimal balance between stability and maneuverability, further facilitated by the integrated transport wheels.

Functional Specifications

High performance 4-stroke petrol engine

The heart of the Garland Chipper 780 QG-V23 is a latest-generation 4-stroke engine , designed to deliver consistent power and low fuel consumption. The high torque available at low revs allows it to tackle even large-section woody materials with ease.

Cutting system with roller and opposing blades

The professional roller shredding system is designed to ensure clean cuts and uniform material volume reduction. The two 70 mm blades mounted on a 191 mm rotor operate against a fixed counterblade, providing efficient, clog-free shredding. This configuration reduces engine fatigue and extends blade life, allowing for quick and easy maintenance.

Cutting capacity up to 60 mm and suitable for palm trees

Thanks to its 4 kW power and reinforced structure, the Garland Chipper 780 QG-V23 can shred branches up to 60 mm in diameter , making it ideal for professional garden maintenance, municipal green spaces, and for processing palm trees. The large feed hopper allows for the insertion of bulky material without the risk of jamming.

Robust structure and optimized mobility

The machine is built on a high-strength steel frame , ensuring stability even during the most demanding shredding operations. The integrated puncture-proof wheels facilitate transport even on uneven terrain, making the shredder suitable for field work and frequent relocation.

Safety and comfort of use

The integrated SC System ensures immediate rotor shutdown in the event of an emergency or accidental opening of the protective covers. The ergonomic design and balanced layout of the controls reduce operator fatigue, making continuous work more efficient and safe.

Watch the video

Characteristics

• Professional wood chipper
• Powered by unleaded petrol (>90 RON)
• Garland 4-stroke 196cc engine
• Power 4 kW / 5.4 HP
• Maximum torque 13.5 Nm
• Engine speed 3600 RPM
• Max diameter Ø 60 mm
• Rotor Ø 191 mm with 2 blades of 70 mm
• Cutting system with roller and opposing blades
• SC System Security System
• Puncture-proof wheels
• Fuel tank 3.6 L
• Oil pan 0.6 L
• Weight 50 kg

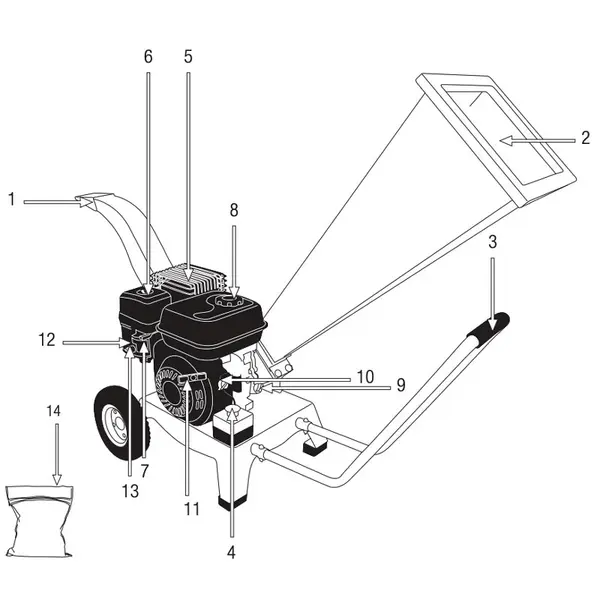

1. Exhaust pipe
2. Feed hopper
3. Carrying handle
4. Emergency button
5. Muffler
6. Air filter cover
7. Accelerator
8. Fuel tank cap
9. Oil tank cap
10. ON/OFF switch
11. Pull start handle
12. Fuel valve
13. Air starter
14. Accessories
