FBC CIP.10.PF
Tractor-Driven Biochipper - with Cardan Shaft

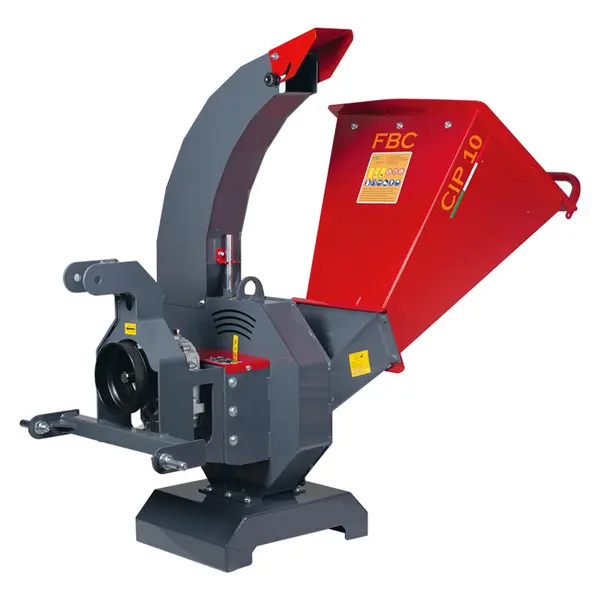

FBC CIP.10.PF - Tractor-mounted chipper with cardan shaft, working capacity 6-9 m³/h

The FBC CIP.10.PF cardan shaft wood chipper is a professional machine designed for intensive use in the management of prunings , branches , and woody residues . This professional chipper is the ideal solution for forestry workers, expert gardeners, and public or private greenery maintenance workers who require a robust, high-performance machine that complies with European safety regulations. The tractor-driven cardan shaft allows for efficient use even in complex environments such as woodlands, parks, or agricultural areas.

Thanks to the L-shaped blade and counterblade , combined with 10 straight mobile hammers , the FBC CIP.10.PF chipper effectively shreds plant material, producing chips that are ideal for composting , mulching or, after drying , use in wood chip boilers. The presence of a single loading hopper, combined with a self-feeding system and wheels with handles for movement, facilitates its use and increases its ergonomics in harsh operating conditions.

Belonging to the FBC CIP Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC CIP.10.PF is powered by a cardan shaft system with angle multiplier , specifically designed for tractors with a 540 RPM PTO and a minimum power of 14 HP . This system ensures high energy efficiency and optimal power transmission to the cutting system via an elastic joint and shear pin , while also ensuring machine protection in the event of overload.

In terms of performance, the professional wood chipper can process branches and wood up to 100 mm in diameter , with an hourly shredding capacity of between 6 and 9 m³/h , a value that varies based on the type of material processed and the operator's efficiency. The machine is equipped with a loading hopper with a material introduction height of 110 cm and an unloading height of 150 cm, with the option of mounting on both sides.

Functional specifications

High performance cutting system

The heart of the FBC CIP.10.PF chipper is the chipping disc equipped with a blade, an L-shaped counterblade, and ten straight moving hammers, which work synergistically to perform a clean cut and subsequently reduce the material into homogeneous fragments. This system allows for smooth processing even of fresh branches, significantly reducing the need for manual pre-treatment.

Automatic material feeding

The self-feeding system ensures a constant and regular flow of material into the cutting chamber, reducing operator fatigue and increasing hourly productivity. This system is particularly appreciated in professional settings, where efficiency and operational continuity are essential.

Robust construction and optimised transmission

The entire structure of the FBC CIP.10.PF professional chipper is constructed of high-thickness steel , making it resistant to the mechanical stresses typical of heavy-duty operations. The power transmission system uses an intermediate shaft with double bearing supports , designed to withstand even prolonged work cycles without compromising reliability.

Handling and ease of use

Despite its robustness, the FBC CIP.10.PF is easily transportable thanks to its wheels and handle, and fits into the tractor category with a longitudinal working position . This makes it practical to use even in confined spaces or on uneven terrain, increasing its versatility in different contexts.

Safety and simplified maintenance

In compliance with CE regulations, the shredder is equipped with safety pins to block rotation during maintenance operations, as well as integrated branch and leaf pushers . Manual greasing of the main components makes maintenance operations quick and easy, even during daily operations.

Watch the video

Characteristics

• Professional wood chipper for intensive use
• Cardan- powered
• Productivity between 6 and 9 m³/h
• Max diameter Ø 100 mm
• Chipping disc
• A blade
• Ten straight moving hammers
• An L-shaped counterblade
• Material introduction height from ground 1100 mm
• Exhaust pipe height 1500 mm
• Transmission to the flywheel via elastic coupling and safety pin
• Self-powered system
• 100% Made in Italy
