FBC CIP.8.PF
Tractor-Driven Biochipper
with Cardan Shaft

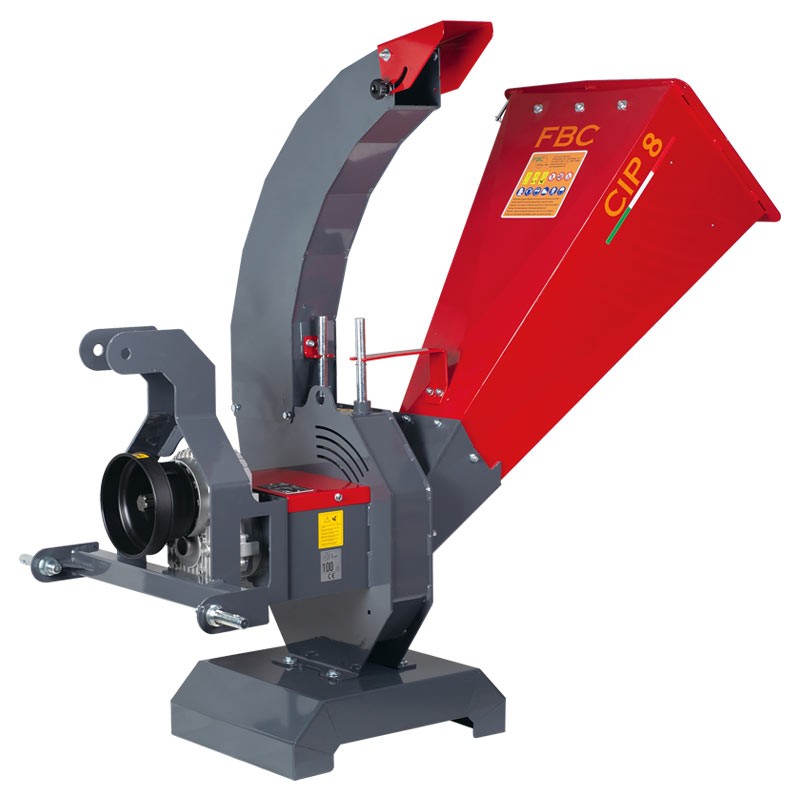

FBC CIP.8.PF - Tractor-mounted chipper with cardan shaft, working capacity 4-7 m³/h

The FBC CIP.8.PF professional cardan-driven wood chipper is designed for the efficient shredding of fresh household prunings and branches , ideal for experienced operators in the agricultural, forestry, and maintenance sectors. Part of the CIP Series , renowned for its reliability and high performance, this wood chipper combines a sturdy steel frame with an advanced cutting system that ensures fast and precise processing.

Thanks to its unique loading hopper and a combined system of blade , L-shaped counterblade and six S-shaped mobile hammers , the FBC CIP.8.PF reduces the material into chips ready for composting , mulching or use in wood chip boilers , provided it has been properly dried. All with a design that complies with European safety regulations and designed to ensure ease of use even in demanding working conditions.

Belonging to the FBC CIP Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC CIP.8.PF is powered by the tractor's PTO (cardan shaft) , with a 540 RPM angle multiplier and a minimum tractor power requirement of 14 HP . This configuration ensures a perfect combination of mechanical reliability and consistent performance, even during prolonged use on green materials and wet branches.

This professional chipper 's operating capacity is a maximum cutting diameter of 80 mm , with an hourly output of between 4 and 7 m³/h , depending on the type of material processed and the operator's efficiency. The loading hopper 's dimensions offer a wide and convenient entrance for handling even the bulkiest prunings. The 150 cm high discharge pipe can be installed on both sides to optimize workflow in the field.

Functional specifications

Professional and high-performance cutting system

The heart of the FBC CIP.8.PF is its advanced disc cutting system , featuring a main blade , an L-shaped counterblade , and six S-shaped moving hammers , which ensure multi-level shredding. The first clean cut is made by the fixed blade, while the hammers further reduce the material into uniform splinters. This configuration ensures high and consistent throughput , even on fresh and irregular pruning.

Self-powered system for simplified management

The automatic material feeding system facilitates continuous work without interruptions, maintaining a constant flow of wood chips and reducing operator fatigue. The material introduction height, equal to 110 cm , is designed to ensure an ergonomic position during loading, improving productivity in the field.

Reinforced steel structure for intensive use

Made entirely of high-thickness steel , the FBC CIP.8.PF is designed to withstand prolonged stress and harsh working environments. Its compact yet robust structure, combined with mounting on standard category tractors , makes it ideal for daily professional use, even on difficult terrain.

Safe transmission and easy maintenance

Power is transmitted to the flywheel via a flexible coupling and shear pin , ensuring protection for the machine in the event of accidental overloads. The cutting system is mounted on an " end shaft " with a rear flange and two self-lubricating bearings , a solution that simplifies maintenance and extends the machine's life. Shear pins block rotation during maintenance, while the included branch pusher ensures maximum operator protection.

Adjustable wood chip discharge for maximum versatility

The 150 cm discharge pipe , orientable on both sides, allows you to easily adapt the flow of the processed material based on the operating conditions and available space, thus optimising the collection or dispersion phases of the wood chips.

Watch the video

Characteristics

• Professional wood chipper
• Cardan- powered
• Productivity between 4 and 7 m³/h
• Max diameter Ø 80 mm
• Chipping disc
• A blade
• Six S-shaped moving hammers
• An L-shaped counterblade
• Material introduction height from ground 1100 mm
• Exhaust pipe height 1500 mm
• Transmission to the flywheel via elastic coupling and safety pin
• Self-powered system
• 100% Made in Italy
