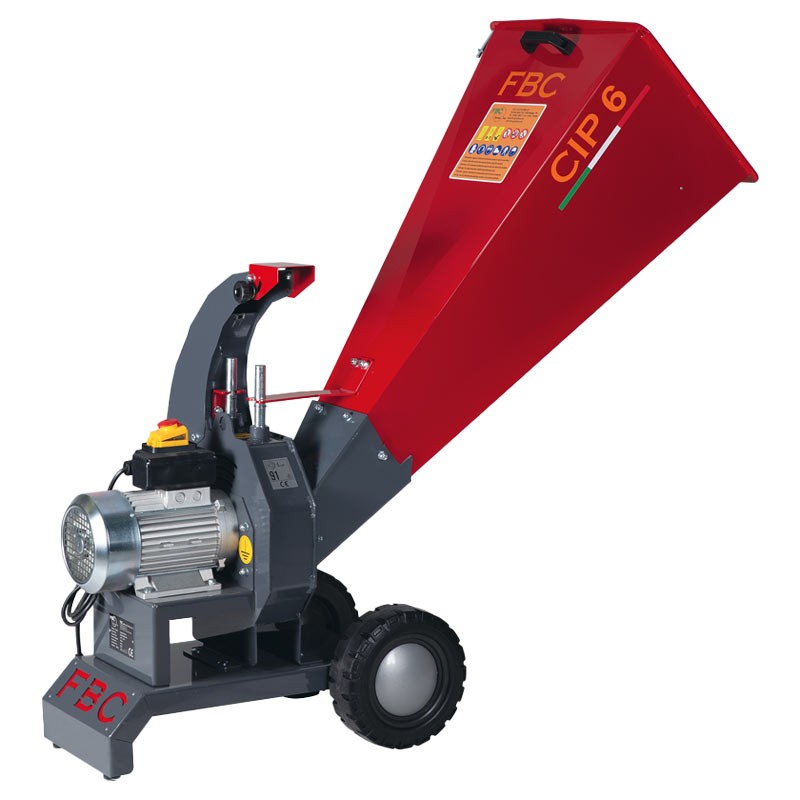

FBC CIP.6.EL
Electric Wood Chipper
3 HP Ø 4 cm

FBC CIP.6.EL - 3 HP Electric Wood Chipper with Working Capacity 2÷3 m³/h

The FBC CIP.6.EL electric wood chipper is a semi-professional machine designed for shredding branches and domestic prunings , ideal for greenery maintenance workers, small farmers, and landscaping professionals. The heart of the system is a chipping disc equipped with a steel blade and four S-shaped mobile hammers , supported by an L-shaped counterblade , which guarantee excellent woody material reduction capacity. The self-feeding system makes the work faster and smoother, while the 3 HP 230V electric power ensures continuity of operations.

With a cutting capacity of up to 50 mm in diameter and an hourly output of 2-3 m³/h , the FBC CIP.6.EL chipper is designed to efficiently meet the needs of shredding dry or fresh branches. Its compact design and push-type movement system on solid wheels make it easy to transport and use, even in small or irregular spaces.

Belonging to the FBC CIP Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC CIP.6.EL is powered by a 230V single-phase electric motor with a nominal power of 3 HP , which allows for low consumption and stable operation in residential or semi-professional work environments. The electric power supply ensures quiet, emission-free operation, even suitable for sensitive environments or those adjacent to residential areas.

The machine can process wood with a diameter of up to 50 mm , producing 2-3 m³/h , depending on the type of material being processed, the condition of the chipping blades , and the operator's skill level. The cutting system consists of a main blade , four S-shaped moving hammers , and an L-shaped counterblade , mounted on a high-strength chipping disc . The material is fed through a hopper with a 100 x 145 mm opening, positioned 100 cm from the ground , and the chips are expelled through a 90 cm high discharge pipe , ensuring a continuous and orderly processing cycle.

Functional specifications

Professional cutting system with disc and hammers

The heart of the FBC CIP.6.EL wood chipper is its disc cutting system , which incorporates a sharp and resistant steel blade , in combination with four S-shaped mobile hammers and an L-shaped counterblade . This configuration allows for uniform and rapid shredding even on materials of varying consistencies, effectively reducing branches and prunings into fragments of an optimal size for composting or disposal.

Self-feeding of material for continuous processing

The chipper is equipped with a self-feeding system , which facilitates the introduction of branches into the hopper, reducing operator effort and ensuring continuous processing even with bulky or irregularly shaped material. The 100 cm introduction height is designed for comfort and speed of operation.

Operational safety during maintenance

Designed for semi-professional use, the FBC CIP.6.EL features safety pins that block the cutting system from rotating during maintenance, minimizing the risk of accidents. The included branch pusher allows for the safe introduction of residual material, protecting the operator from direct contact with the cutting system.

Easy handling with solid wheels

The shredder can be easily transported thanks to its push-pull system, supported by solid wheels with cotter pins , ideal for uneven surfaces. This allows the operator to easily move the machine between work areas without the need for auxiliary equipment.

Direct transmission for maximum efficiency

Direct flywheel transmission eliminates energy loss, optimizing engine performance and ensuring immediate response from the cutting system. This type of transmission also reduces maintenance costs over time, as it is less subject to wear than belt systems.

Watch the videos

Characteristics

• Semi-professional wood chipper
• 230V single-phase electric motor
• Power 3 HP ( 2.2 kW)
• Productivity between 2 and 3 m³/h
• Max diameter Ø 50 mm
• Chipping disc
• A blade
• Four straight moving hammers
• An L-shaped counterblade
• Material introduction height from ground 1000 mm
• Exhaust pipe height 900 mm
• Direct flywheel transmission
• Self-powered system
• Solid wheels in cotter pin
• 100% Made in Italy
