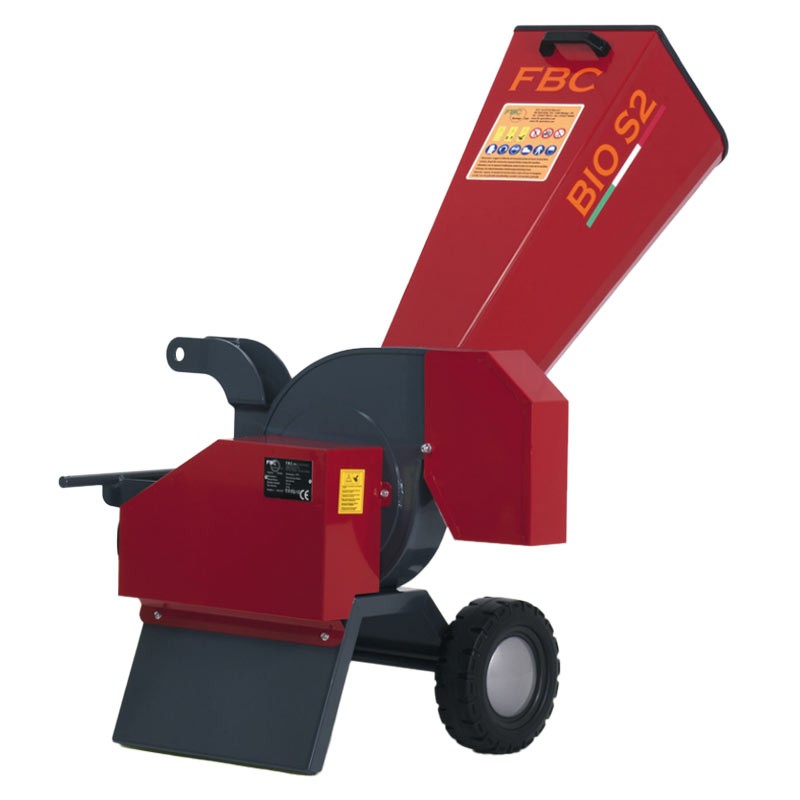

FBC BIO.S2.PF
Wood chipper with PTO shaft for tractors

FBC BIO.S2.PF - Tractor-mounted chipper with cardan shaft, working capacity 2÷3 m³/h

The FBC BIO.S2.PF cardan shaft wood chipper is a semi-professional machine designed for hobbyist and semi-professional use, or for those who need to independently manage small-scale domestic pruning tasks . This model is designed to offer reliable performance in non-industrial contexts that still require precision, continuity, and operational safety.

Thanks to its disc cutting system with 2 blades , 6 moving hammers and 1 counterblade , it can process branches up to 50 mm in diameter , guaranteeing an hourly production of 2-3 m³ , depending on the material and operating conditions. One of the most notable features is the self-feeding system , which facilitates the continuous insertion of material, improving efficiency and reducing operator effort.

Belonging to the FBC BIO Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC BIO.S2.PF chipper is powered by a cardan shaft PTO , with an angle multiplier for connection to the tractor. It requires a minimum power of 14 HP and a PTO speed of 540 RPM , ensuring efficient power transmission . It is perfectly compatible with small and medium-sized tractors , ideal for semi-professional and light agricultural use. Power is transmitted to the flywheel by means of a double belt and pulley , ensuring smoothness and protection of the cutting system from any stresses and impacts.

In terms of performance, the disc cutting system allows for the effective shredding of branches and green waste, with a maximum processing capacity of 50 mm in diameter . The machine is equipped with two main blades , six straight mobile hammers and a counterblade , ensuring effective reduction in the volume of the treated material. Hourly production varies between 2 and 3 m³/h , depending on the type of material treated and the operating conditions.

Functional specifications

Self-powering system for continuous efficiency

One of the distinctive features of the FBC BIO.S2.PF is its self-feeding system , which uses the material's inertia to continue feeding within the cutting chamber. This allows for a smoother workflow, minimizing manual intervention and improving hourly productivity. Ideal for light pruning and brushwood, this system also contributes to greater operational safety.

Tractor integration and flange mounting for increased durability

The cutting system is mounted via a rear-flange end shaft and double self-lubricating bearings , increasing the machine's lifespan and reducing maintenance requirements. This type of construction makes the FBC BIO.S2.PF cardan shaft wood chipper an ideal choice for those seeking a durable and robust solution for light pruning with agricultural machinery.

Compact structure and manual handling

Thanks to its push-pull design and solid wheels with cotter pins , the BIO.S2.PF is easily transportable even on uneven terrain. Its compact design and balanced center of gravity facilitate positioning close to the work area, while the 935 mm material entry height is optimized for easy loading.

Precise and robust cut

The heart of the machine is its disc cutting system , configured to ensure uniform, jam-free chipping . The sharp blades and moving hammers work synergistically to tackle fresh or dry branches and prunings with diameters up to 50 mm , while the straight counterblade ensures maximum cutting precision. The entire system is supported by a solid mechanical architecture and belt transmission that absorbs vibrations and protects the engine.

Optimized wood chip expulsion

The discharge pipe positioned at a height of 630 mm allows the chipped material to be directly expelled into containers or onto collection sheets, facilitating the management of plant residues and reducing cleaning times in the work area.

Watch the video

Characteristics

• Semi-professional wood chipper
• Cardan- powered
• Productivity between 2 and 3 m³/h
• Max diameter Ø 50 mm
• Chipping disc
• Two blades
• Six straight moving hammers
• A straight counter blade
• Material introduction height from ground 935 mm
• Exhaust pipe height 630 mm
• Transmission to the flywheel via belts and pulleys
• Self-powered system
• Solid wheels in cotter pin
• 100% Made in Italy
