FBC BIO.M5.30
Electric Wood Chipper
3 HP Ø 4 cm

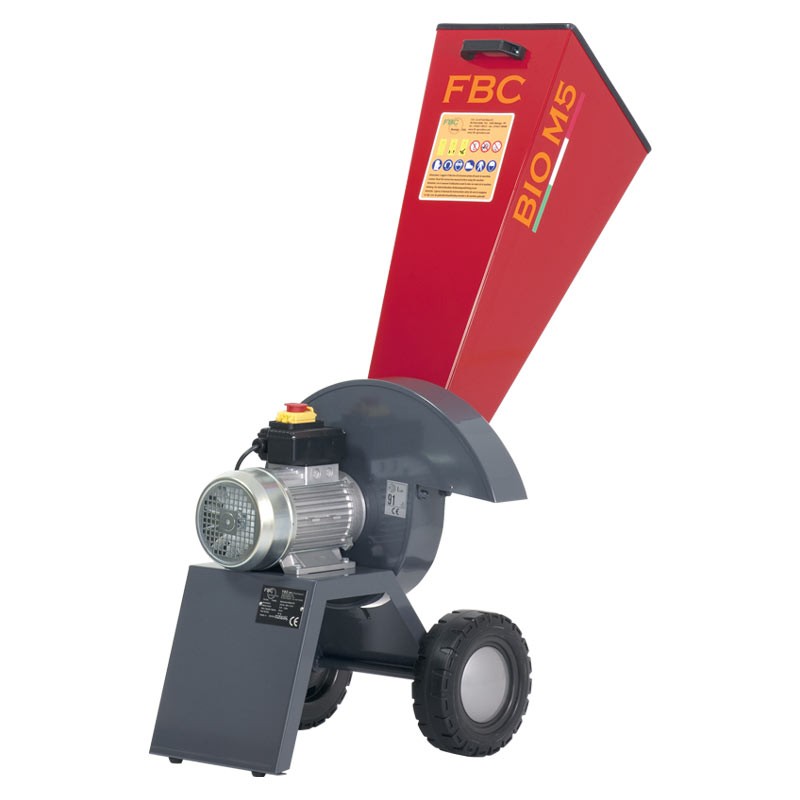

FBC BIO.M5.30 - 3 HP Electric Wood Chipper with Working Capacity 1÷3 m³/h

The FBC BIO.M5.30 is a semi-professional chipper designed for small-scale pruning jobs at home, ideal for experienced hobbyists and landscaping professionals looking for a compact yet high-performance machine. Capable of processing wood up to 40 mm in diameter , it guarantees an hourly output of between 1 and 3 m³/h , depending on the type of material and the operator's skill. The self-feeding system allows for continuous and regular feeding, optimizing work times and minimizing manual intervention.

Equipped with a 3 HP single-phase electric motor , the FBC BIO.M5.30 wood chipper ensures stable and quiet operation, perfect for residential settings with access to mains electricity. The disc cutting system , consisting of two blades and six moving hammers , ensures precise and effective shredding of twigs, residues and plant waste, making this model ideal for composting or for reducing the volume of material to be disposed of.

Belonging to the FBC BIO Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC BIO.M5.30 wood chipper is powered by a 230V single-phase electric motor with a power output of 3 HP , a configuration that ensures ease of use and low running costs, without sacrificing the power needed for light and medium-duty chipping jobs. The electric power supply makes it ideal for residential environments or contexts where the use of petrol engines is not possible due to noise emissions or exhaust fumes.

The chipper's performance is determined by a robust and efficient disc cutting system, equipped with two sharp blades , six straight moving hammers and an L-shaped counterblade . This setup allows it to tackle branches up to 40 mm in diameter , with an hourly production capacity of between 1 and 3 m³/h , depending on the type of wood and operating conditions. The direct transmission to the flywheel ensures high mechanical output, reducing power losses and improving the overall life of the system.

Functional specifications

Efficient self-powered power system

The FBC BIO.M5.30's self-feeding system allows for continuous and effortless introduction of materials to be chipped. This mechanism significantly reduces manual intervention, optimizing processing times and limiting the risk of blockages in the inlet duct. The material introduction height, 1050 mm from the ground , is designed to offer a good compromise between ergonomics and practicality.

Professional disc cutting system

The heart of the chipper is the disc cutting system , equipped with two main blades , six moving hammers , and an L-shaped counterblade . This configuration is designed to ensure clean cuts and fine shredding even with the toughest branches. This mechanical design offers a long operating time before requiring sharpening or extraordinary maintenance, making it a robust and reliable product over time.

Compact structure and simplified handling

The shredder is moved manually by pushing , facilitated by the presence of solid wheels with cotter pins . This solution ensures stability on uneven terrain and safety during movement. The compact dimensions of the hopper (105 x 150 mm and 320 x 310 mm) make the machine easy to place even in narrow work spaces or private gardens.

Optimized material unloading

The discharge pipe, positioned 465 mm from the ground , is designed to facilitate the direct collection of wood chips in containers or bags, reducing material dispersion and facilitating waste management. Its orientation and height are ideal for practical and orderly use, even in residential settings.

Watch the video

Characteristics

• Semi-professional wood chipper
• 230V single-phase electric motor
• Power 3 HP ( 2.2 kW)
• Productivity between 1 and 3 m³/h
• Max diameter Ø 40 mm
• Chipping disc
• Two blades
• Six straight moving hammers
• An L-shaped counter blade
• Material introduction height from ground 1050 mm
• Exhaust pipe height 465 mm
• Direct drive to the flywheel
• Self-powered system
• Solid wheels in cotter pin
• 100% Made in Italy
