Pramac PX 25
Pallet Truck Scale
2500 kg Double Roller

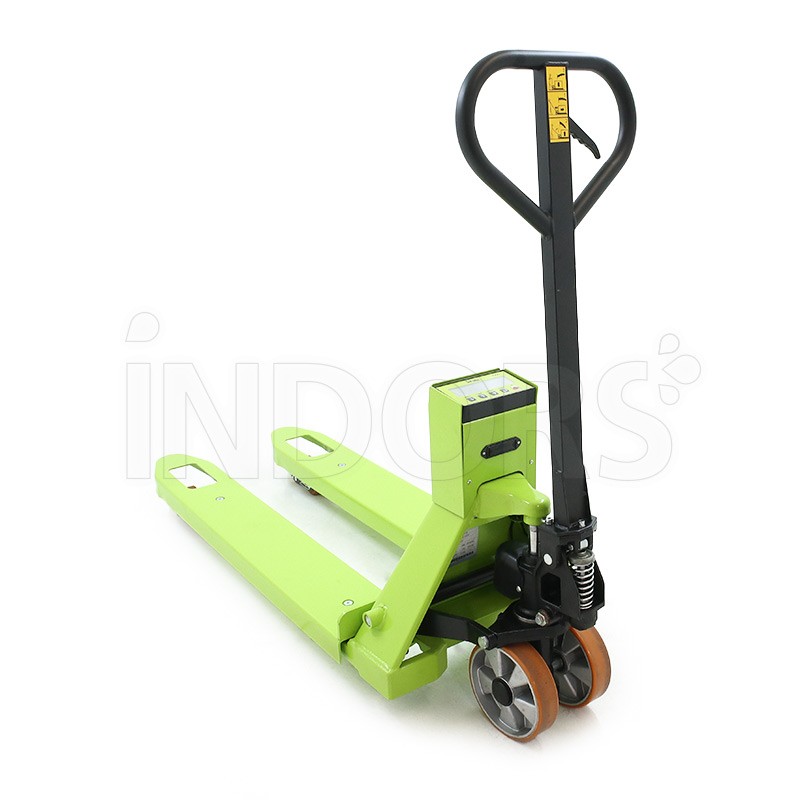

Pramac PX 25 - Professional Hand Pallet Truck Scale 2500 kg

Pramac PX 25 cod. G6B330UV100 with dimensions 1185 x 555 mm and maximum capacity of 2500 kg is a robust professional pallet truck with weighing function. Functional and precise, it is designed for weighing goods, to avoid overloads and determine weights before transport.

Functional Specifications

Professional Weigher

This pallet truck with scale function has 4 load cells that make the internal weighing reliable and with an accuracy of 0.05% . The 6-digit LCD digital display allows easy reading of the weights in kg and lb and offers the possibility of showing the gross and net weights. With tare function, unbalanced load , auto-off , piece counter and horizontal weight totalizer , the scale of this pallet truck guarantees accurate work and safe transport.

Sturdy Construction

The sturdy structure consists of a double frame with lower fork and counter fork . Each fork has 2 load cells for uniform load distribution , allowing to maintain weighing precision even in the case of a slightly unbalanced load.

Battery Powered Electronics

The electronic part of this Pramac pallet truck is powered by 4 standard AA batteries which are inserted into the appropriate compartment of the mast, offering an autonomy of approximately 30 hours which can be verified via the low charge indicator on the display.

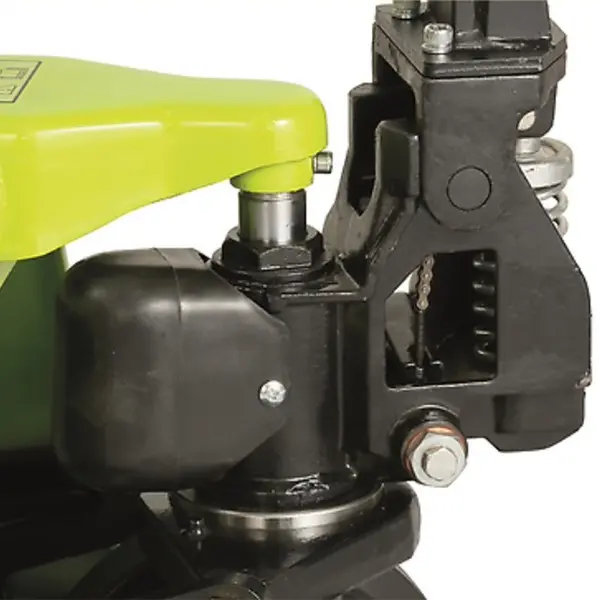

Hydraulic Unit

The durable and reliable cast iron pump includes a hydraulic unit with a maximum pressure valve that protects the pallet truck from overloads by blocking the forks when the pressure exceeds the set limit. It is also equipped with an ON/OFF lowering valve and an external oil tank , thus ensuring safe and efficient operation.

Easily Manoeuvrable Pallet Truck

The Pramac PX 25 pallet truck is equipped with nylon-polyurethane steering wheels that guarantee smooth and resistant maneuverability. The polyurethane tandem rollers offer greater stability and durability during the transport of loads. Ideal for intensive use, it ensures efficiency and safety in any work environment.

Characteristics

• Manual pallet truck for loads up to 2500 kg
• Dimensions 118.5 x 55.5 cm
• Weigher function
• Ideal for professional use
• Nylon-polyurethane steering wheels
• Tandem polyurethane rollers
• Sturdy double frame construction
• Maximum pressure valve and ON/OFF lowering valve
• LCD digital display
• Hydraulic unit with pressure relief valve
