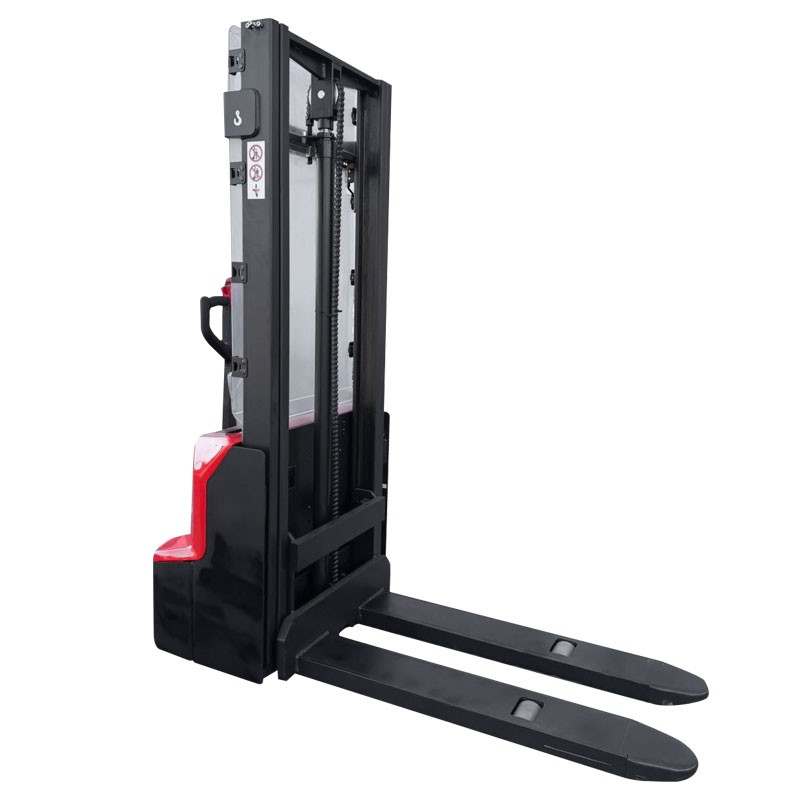

Novamach N1229E and N1236E
Electric Lift with 1200 kg Capacity
Fork height 8.6÷281/351 cm
Capacity 1200 kg
Dimensions 80 x 171 cm
€5,490.00
€4,500.00 tax excl.
Warranty 2
years
Shipped on Pallet

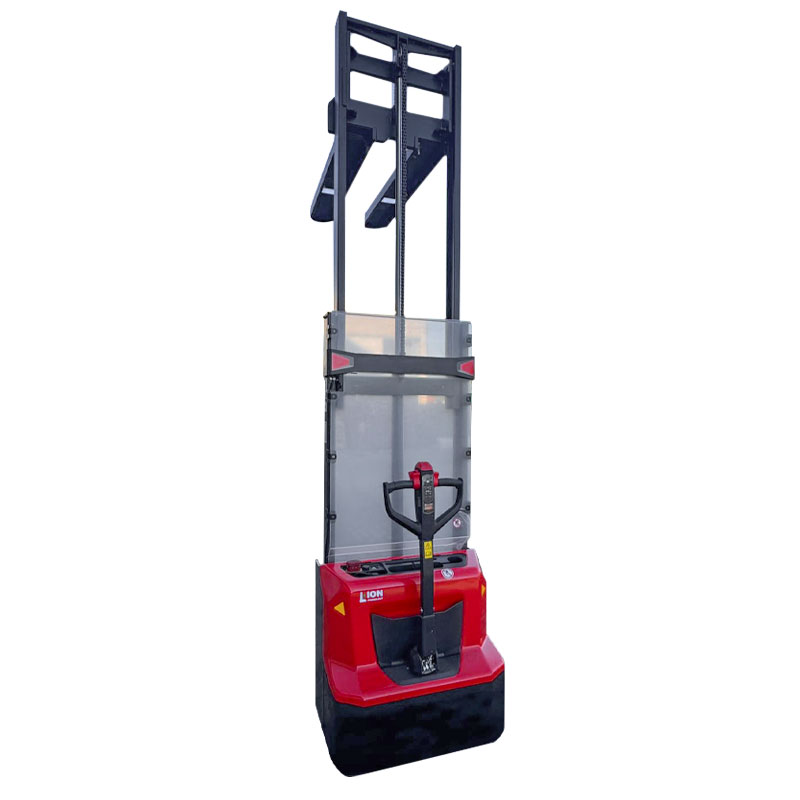

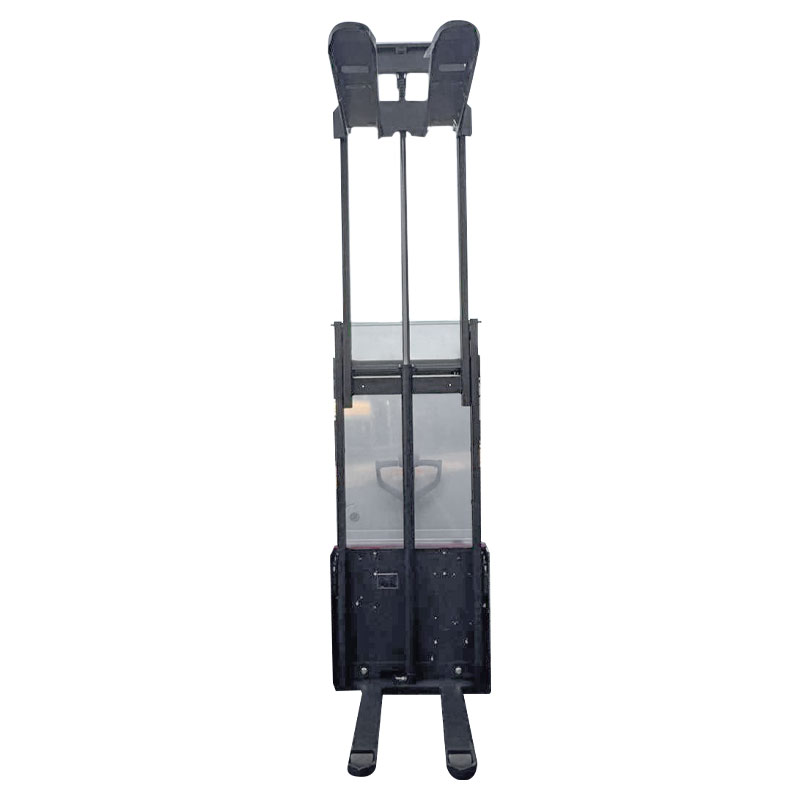

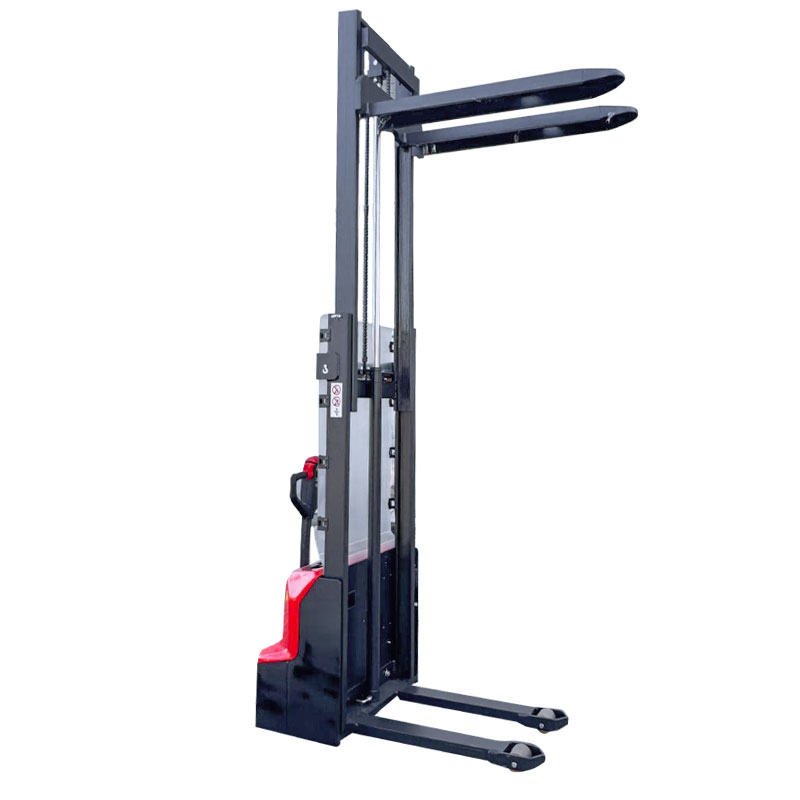

Novamach N1229E and N1236E - Electric Lifts with 1200 kg Capacity
The Novamach N1229E and N1236E rechargeable battery-powered electric pallet truck is a pallet truck with a capacity of up to 1200 kg designed for moving loads in warehouses and industrial settings . Its compact and lightweight design makes it suitable for operating in confined spaces.
Equipped with a 24V/260Ah battery and internal charger, it features DC motor technology .
Available models

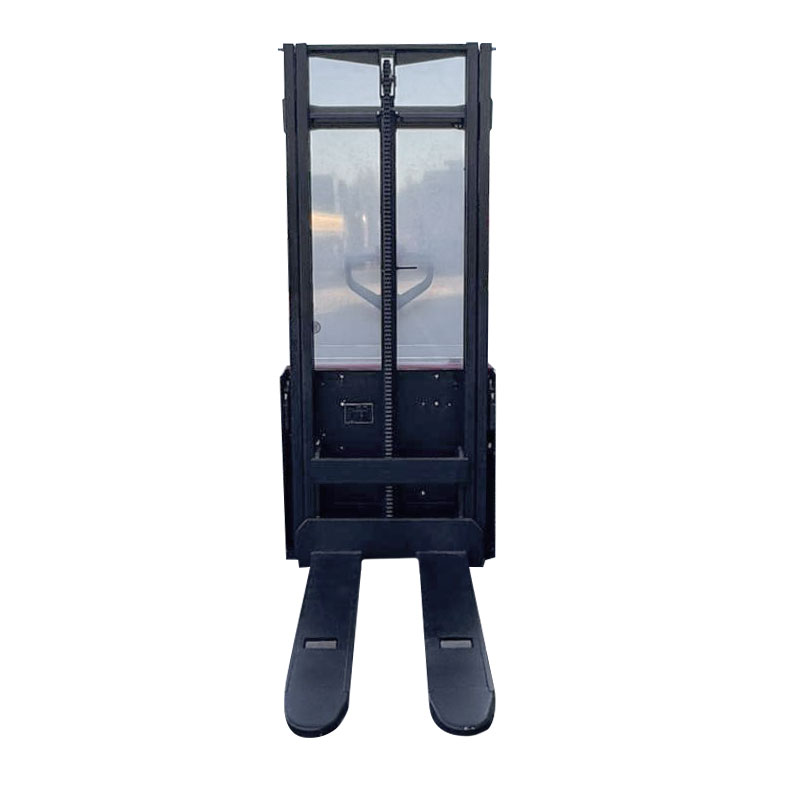

- N1229E - Max. Lifting Height 281.4 cm

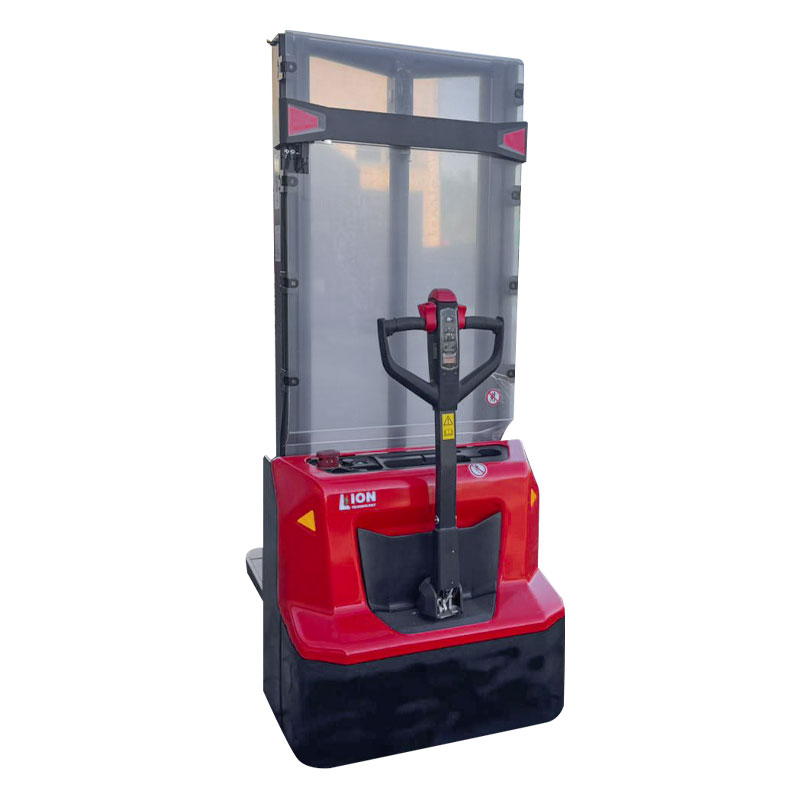

- N1236E - Max. Lifting Height 351.4 cm
Technical specifications
With electric lift , both models have electric translation and double-type mast . The overall length is 171 cm x 80 cm wide . The forks have dimensions 115 x 18 x 6 cm . These pallet trucks are equipped with an electromagnetic service brake .

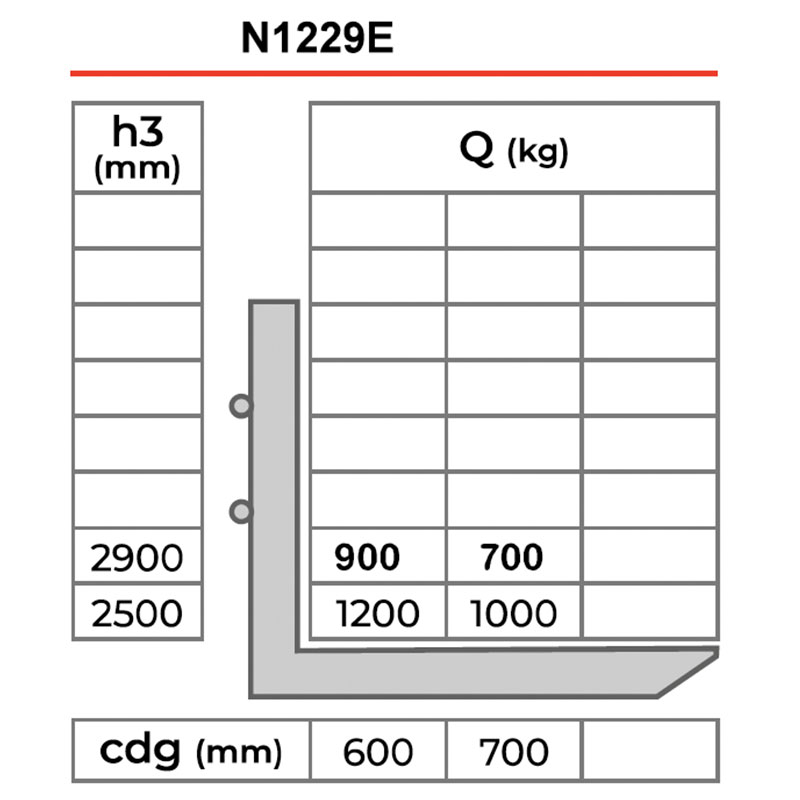

Load tables

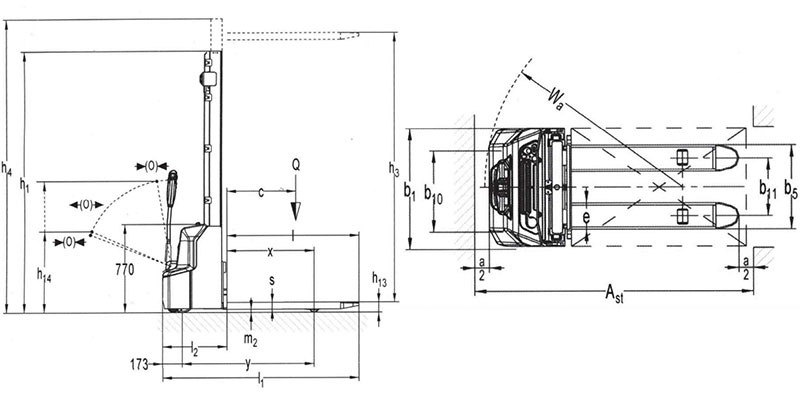

Dimensions
N1229E
- C - Distance from load center 600 m
- X - Distance between machine body and forks 760 mm
- Y - Wheelbase 1147 mm
- D - Wheels D xw 210 x 70 mm
- D xw - Roller size 84 x 93 mm
- D xw - Swivel wheel 80 x 30 mm
- b10 - Distance between center of pivoting wheels 100 x 50 mm
- b11 - Roller center distance 400/515 mm
- h14 - Height of guide handle min 710 - max 1150 mm
- h13 - Minimum fork height 86 mm
- L1 - Total length 1710 mm
- L2 - Fork body distance 560 mm
- b1 - Total width 800 mm
- b5 - External fork width 570 mm
- m2 - Height of raised forks 26 mm
- h1 - Height of closed upright 1930 mm
- h2 - Free lift 0 mm
- h3 - Lifting height 2814 mm
- h4 - Height of open upright 3337 mm
- h3 + h13 - Fork lifting height 2900 mm
N1236E
- C - Distance from load center 600 m
- X - Distance between machine body and forks 760 mm
- Y - Wheelbase 1147 mm
- D - Wheels D xw 210 x 70 mm
- D xw - Roller size 84 x 93 mm
- D xw - Swivel wheel 80 x 30 mm
- b10 - Distance between center of pivoting wheels 100 x 50 mm
- b11 - Roller center distance 400/515 mm
- h14 - Height of guide handle min 710 - max 1150 mm
- h13 - Minimum fork height 86 mm
- L1 - Total length 1710 mm
- L2 - Fork body distance 560 mm
- b1 - Total width 800 mm
- b5 - External fork width 570 mm
- m2 - Height of raised forks 26 mm
- h1 - Height of closed upright 2080 mm
- h2 - Free lift 0 mm
- h3 - Lifting height 3514 mm
- h4 - Height of open upright 4037 mm
- h3 + h13 - Fork lifting height 3600 mm
Characteristics
- Electric Lift
- Capacity 1200 kg
- Polyurethane wheels
- Dimensions 171 x 80 cm
- Weight 585 kg
Technical Data
| N1229E | N1236E | |
| Traction | Drums | Drums |
| Battery Type | 24V / 260 Ah Lithium | 24V / 260 Ah Lithium |
| Translation | Electric | Electric |
| Lifting | Electric | Electric |
| Type | Man down | Man down |
| Upright Type | Double Stage | Double Stage |
| Flow rate | 1200 kg | 1200 kg |
| Wheels | Polyurethane | Polyurethane |
| Turning Radius | 1350 mm | 1350 mm |
| Loading/unloading feed speed | 4.5 / 4.7 km/h | 4.5 / 4.7 km/h |
| Loading/unloading lifting speed | 0.12 / 0.19 m/s | 0.12 / 0.19 m/s |
| Loading/unloading descent speed | 0.13 / 0.11 m/s | 0.13 / 0.11 m/s |

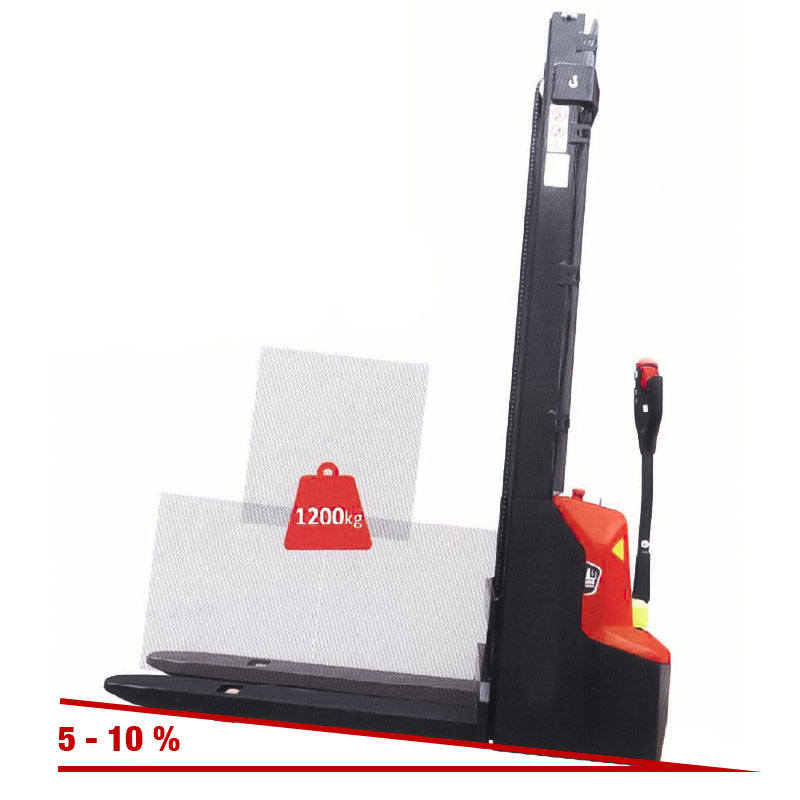

| Max. loading/unloading slope | 5 / 10 % | 5 / 10 % |
| Traction Engine | 0.65 kW | 0.65 kW |
| Lifting Motor | 2.2 kW | 2.2 kW |
| Closed upright height | 1930 mm | 2080 mm |
| Lifting Height | 2814 mm | 3514 mm |
| Open upright height | 3337 mm | 4037 mm |
| Fork Lift Height | 2900 mm | 3600 mm |
| Weight | 585 kg | 585 kg |
