MHS Gripen 015
Hydraulic Forestry Grapple
Open Forks
MPN: GRIPEN 015 BIO
Capacity 0.15 m³
Capacity 2000 kg
For excavators 3.0÷5.0 Ton
Warranty 2 years
Shipped on Pallet

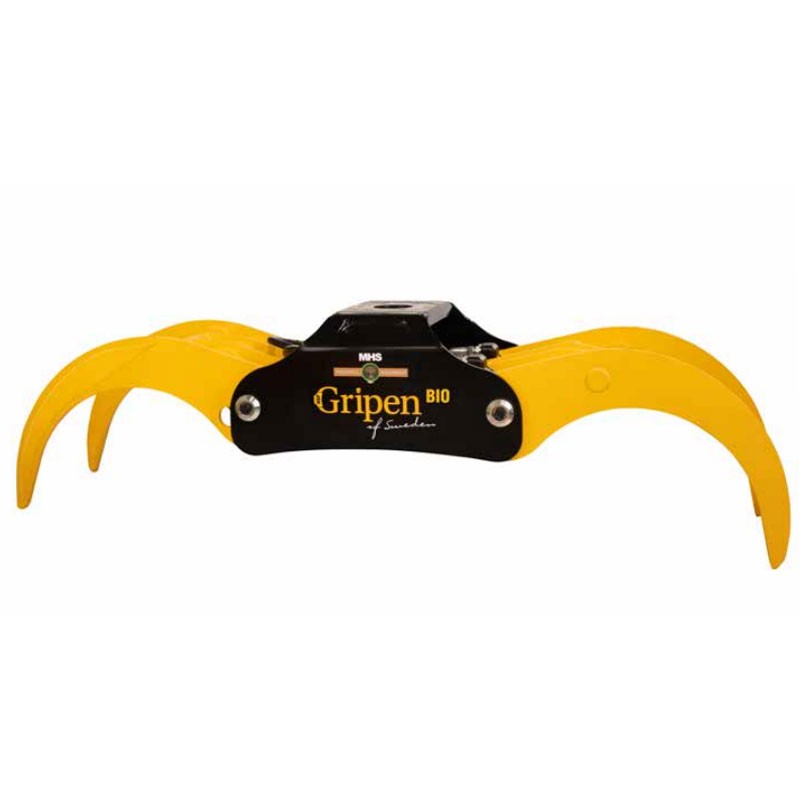

MHS Gripen 015 - Hydraulic Forestry Grapple with Open Forks
The MHS Gripen 015 log grapple is a high-quality tool, designed to optimize the handling and loading of timber . Thanks to its advanced hydraulic system , it guarantees a powerful and safe grip on logs of various sizes , ensuring maximum efficiency and precision in harvesting and transport operations.
The robust , wear-resistant HARDOX steel structure and rotation capacity allow it to tackle the most difficult terrain, improving productivity and operator safety .
This grapple for forestry and agricultural applications is reliable and durable, optimizing work by reducing operating times.
The open fork grippers ensure a stable grip and facilitate the transport of wood chips and timber.
This MHS hydraulic clamp is designed and manufactured entirely in Sweden , combining quality , innovation and reliability . 100% Made in EU , this hydraulic clamp guarantees superior performance , thanks to the integration of advanced technology and European craftsmanship .
Technical Specifications
Log and wood grab for agricultural and forestry use , with maximum capacity of 0.15 m³ and maximum load capacity of 2000 kg .
Designed to withstand maximum pressures of 23 Mpa (equal to 230 bar ), it offers optimum performance in heavy-duty working conditions.
The structure is made of resistant Hardox steel , to ensure solidity, durability and excellent tensile strength.
Compatible with excavators from 3.0 to 4.0 Ton (Standard model) or from 3.0 to 5.0 Ton (Heavy Duty model) .
Dimensions in millimeters
| Model | TO | B | C | D | AND | F |
| Gripen 015 BIO | 510 | 740 | 90 | 685 | 1170 | 397 |
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Load Capacity of Clamp |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Characteristics
- Forestry grapple for wood and wood chips
- With open forks
- Horizontal cylinder
- Hardox steel structure
- Capacity 0.15 m³
- Capacity 2000 kg
- Maximum pressure 23 Mpa / 230 bar
- For excavators from 3.0 to 5.0 tons
- Made in Sweden
- Made in EU
Technical Data
| Model | Gripen 015 Bio |
| Forks | Open |
| Max Capacity | 0.15 m³ |
| Max. capacity | 2000 kg |
| Max Pressure | 23 Mpa - 230 bar |
| Material | HARDOX Steel |
| For Excavators | 3.0÷5.0 Ton |
| Closed Dimension | 51 x 74 x 39.7 cm |
| Open Dimension | 68.5 x 117 x 39.7 cm |
| Weight | 135 kg |
Technical Data
| Model | Gripen 015 Bio |
| Forks | Open |
| Max Capacity | 0.15 m³ |
| Max. capacity | 2000 kg |
| Max Pressure | 23 Mpa - 230 bar |
| Material | HARDOX Steel |
| For Excavators | 3.0÷5.0 Ton |
| Closed Dimension | 51 x 74 x 39.7 cm |
| Open Dimension | 68.5 x 117 x 39.7 cm |
| Weight | 135 kg |
