MHS Gripen 080
Forestry Log Grapple
Closed Forks
Capacity 0.20 m³
Capacity 6500 kg

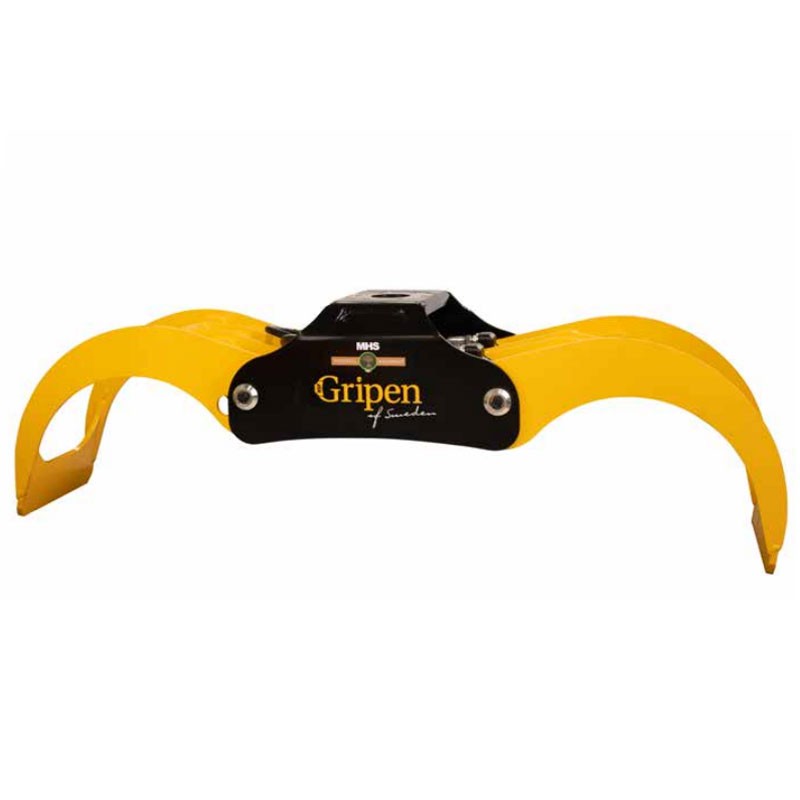

MHS Gripen 080 - Forestry Grapple with Closed Forks - Standard and Heavy Duty Model
The MHS Gripen 080 log grapple is a high-quality tool, designed to optimize the handling and loading of timber . Thanks to its advanced hydraulic system , it guarantees a powerful and safe grip on logs of various sizes , ensuring maximum efficiency and precision in harvesting and transport operations.
The robust , wear-resistant HARDOX steel structure and rotation capacity allow it to tackle the most difficult terrain, improving productivity and operator safety .
This grapple for forestry and agricultural applications is reliable and durable, optimising work by reducing operating times.
Closed fork clamps hold timber securely, preventing spillage and improving load efficiency during handling.
This MHS hydraulic clamp is designed and manufactured entirely in Sweden , combining quality , innovation and reliability . 100% Made in EU , this hydraulic clamp guarantees superior performance , thanks to the integration of advanced technology and European craftsmanship .

Available Models
- MHS GRIPEN 080 Standard - weight 680 kg
- MHS GRIPEN 080 Heavy Duty - weight 800 kg, increased thicknesses, oversized rotor plate, double arm, reinforced lower arm tubes, expansion pins
Technical Specifications
Log and wood grab for agricultural and forestry use , with maximum capacity of 0.20 m³ and maximum load capacity of 6500 kg .
Designed to withstand maximum pressures of 19 Mpa (equal to 190 bar ), it offers optimum performance in heavy-duty working conditions.
The structure is made of resistant Hardox steel , to ensure solidity, durability and excellent tensile strength.

MHS Gripen Heavy Duty
For maximum strength, the Gripen HD model features increased thicknesses , double arm , enlarged rotor plate , reinforced tubes and expansion pins for greater solidity.
Dimensions in millimeters
| Model | TO | B | C | D | AND | F |
| Gripen 080 STD | 835 | 1355 | 175 | 890 | 2840 | 800 |
| Gripen 080 HD | 835 | 1355 | 175 | 890 | 2840 | 800 |

Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Load Capacity of Clamp |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Characteristics
- Forestry grapple for logs and wood
- With closed forks
- Double horizontal cylinder
- Hardox steel structure
- Capacity 0.20 m³
- Capacity 6500 kg
- Maximum pressure 19 Mpa / 190 bar
- Designed for standard G/ mounting
- Standard or Heavy Duty model of your choice
- Made in Sweden
- Made in EU
Technical Data
| Model | Gripen 080 Standard | Gripen 080 Heavy Duty |
| Forks | Closed | Closed |
| Max Capacity | 0.20 m³ | 0.20 m³ |
| Max. capacity | 6500 kg | 6500 kg |
| Max Pressure | 19 Mpa - 190 bar | 19 Mpa - 190 bar |
| Material | HARDOX Steel | HARDOX Steel |
| Closed Dimension | 83.5 x 135.5 x 80 cm | 83.5 x 135.5 x 80 cm |
| Open Dimension | 89 x 284 x 80 cm | 89 x 284 x 80 cm |
| Weight | 680 kg | 800 kg |
