MHS Gripen 040
Forestry Log Grapple
Closed Forks
Capacity 0.40 m³
Capacity 5000 kg
For excavators 12.0÷18.0 Ton
Warranty 2 years
Shipped on Pallet

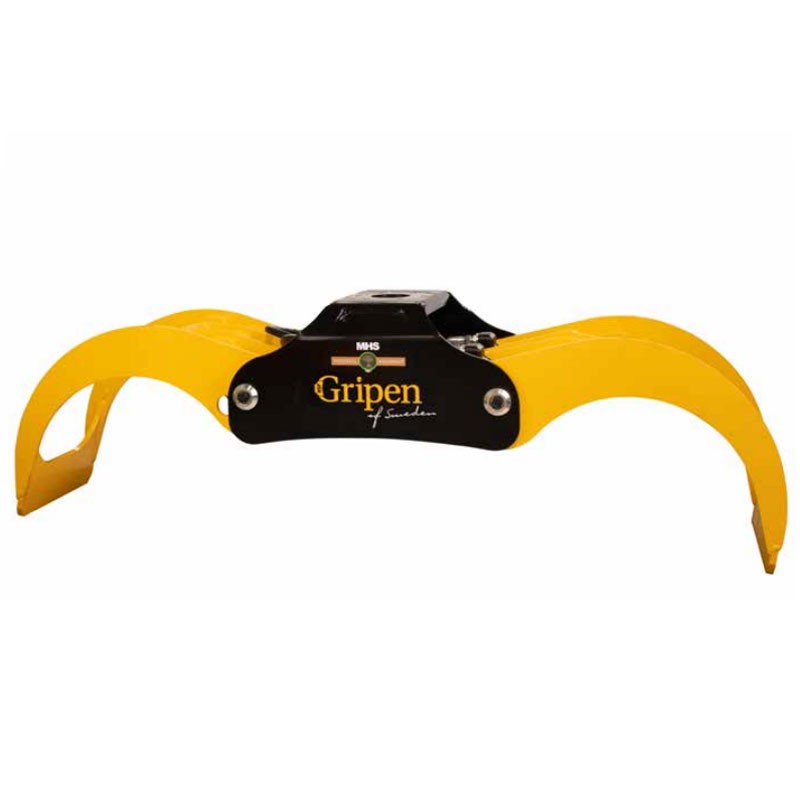

MHS Gripen 040 - Forestry Grapple with Closed Forks - Standard and Heavy Duty Model
The MHS Gripen 040 log grapple is a high-quality tool, designed to optimize the handling and loading of timber . Thanks to its advanced hydraulic system , it guarantees a powerful and safe grip on logs of various sizes , ensuring maximum efficiency and precision in harvesting and transport operations.
The robust , wear-resistant HARDOX steel structure and rotation capacity allow it to tackle the most difficult terrain, improving productivity and operator safety .
This grapple for forestry and agricultural applications is reliable and durable, optimizing work by reducing operating times.
Closed fork clamps hold timber securely, preventing spillage and improving load efficiency during handling.
This MHS hydraulic clamp is designed and manufactured entirely in Sweden , combining quality , innovation and reliability . 100% Made in EU , this hydraulic clamp guarantees superior performance , thanks to the integration of advanced technology and European craftsmanship .
Available Models
- MHS GRIPEN 040 Standard - weight 285 kg
- MHS GRIPEN 040 Heavy Duty - weight 320 kg, increased thicknesses, oversized rotor plate, double arm, reinforced lower arm tubes, expansion pins
Technical Specifications
Log and wood grab for agricultural and forestry use , with maximum capacity of 0.40 m³ and maximum load capacity of 5000 kg .
Designed to withstand maximum pressures of 23 Mpa (equal to 230 bar ), it offers optimum performance in heavy-duty working conditions.
The structure is made of resistant Hardox steel , to ensure solidity, durability and excellent tensile strength.
Compatible with excavators from 12.0 to 16.0 Ton (Standard model) or from 12.0 to 18.0 Ton (Heavy Duty model) .
MHS Gripen Heavy Duty
For maximum strength, the Gripen HD model features increased thicknesses , double arm , enlarged rotor plate , reinforced tubes and expansion pins for greater solidity.
Dimensions in millimeters
| Model | TO | B | C | D | AND | F |
| Gripen 040 STD | 565 | 885 | 120 | 600 | 1880 | 526 |
| Gripen 040 HD | 565 | 885 | 120 | 600 | 1880 | 526 |
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Load Capacity of Clamp |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Characteristics
- Forestry grapple for logs and wood
- With closed forks
- Horizontal cylinder
- Hardox steel structure
- Capacity 0.40 m³
- Capacity 5000 kg
- Maximum pressure 23 Mpa / 230 bar
- For excavators up to 18.0 tons
- Standard or Heavy Duty model of your choice
- Made in Sweden
- Made in EU
Technical Data
| Model | Gripen 040 Standard | Gripen 040 Heavy Duty |
| Forks | Closed | Closed |
| Max Capacity | 0.40 m³ | 0.40 m³ |
| Max. capacity | 5000 kg | 5000 kg |
| Max Pressure | 23 Mpa - 230 bar | 23 Mpa - 230 bar |
| Material | HARDOX Steel | HARDOX Steel |
| For Excavators | 12.0÷16.0 Tons | 12.0÷18.0 Tons |
| Closed Dimension | 61 x 97 x 52.6 cm | 61 x 97 x 52.6 cm |
| Open Dimension | 63 x 207 x 52.6 cm | 63 x 207 x 52.6 cm |
| Weight | 285 kg | 320 kg |
Technical Data
| Model | Gripen 040 Standard | Gripen 040 Heavy Duty |
| Forks | Closed | Closed |
| Max Capacity | 0.40 m³ | 0.40 m³ |
| Max. capacity | 5000 kg | 5000 kg |
| Max Pressure | 23 Mpa - 230 bar | 23 Mpa - 230 bar |
| Material | HARDOX Steel | HARDOX Steel |
| For Excavators | 12.0÷16.0 Tons | 12.0÷18.0 Tons |
| Closed Dimension | 61 x 97 x 52.6 cm | 61 x 97 x 52.6 cm |
| Open Dimension | 63 x 207 x 52.6 cm | 63 x 207 x 52.6 cm |
| Weight | 285 kg | 320 kg |
