MHS Gripen 020
Forestry Grapple for Logs
Closed Forks
MPN: GRIPEN-020-STANDARD
Capacity 0.20 m³
Load capacity 2000 kg
For excavators 3.0÷4.0 Ton
Warranty 2
years
Shipped on Pallet

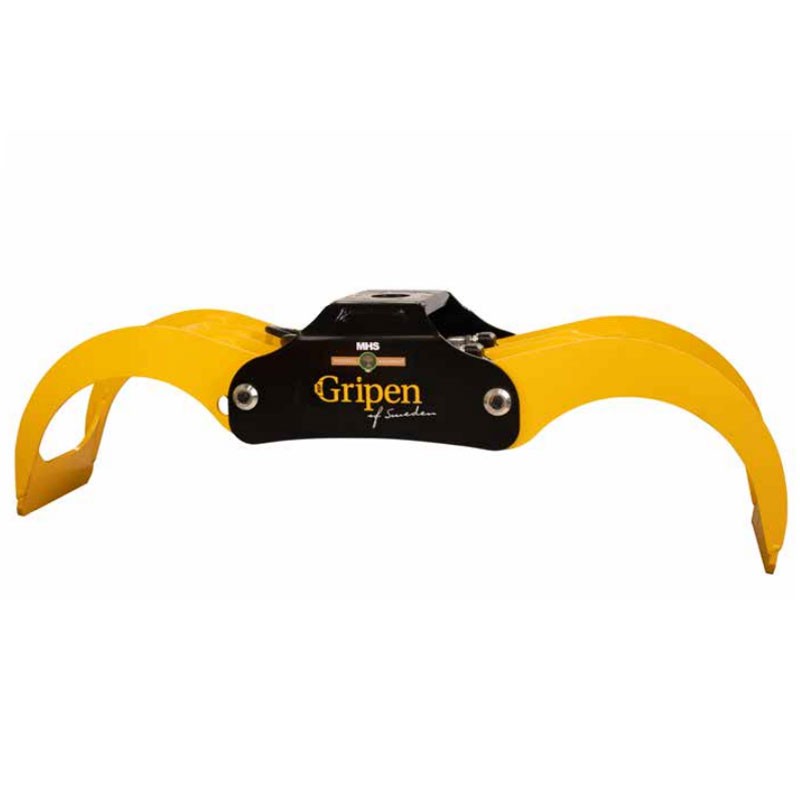

MHS Gripen 020 Standard - Forestry Grapple with Closed Forks
The MHS Gripen 020 log grapple is a high-quality tool designed to optimize timber handling and loading. Thanks to its advanced hydraulic system, it ensures a powerful and secure grip on logs of various sizes, guaranteeing maximum efficiency and precision in collection and transport operations.
The robust structure made of wear-resistant HARDOX steel and the rotation capability allow it to tackle the toughest terrains, improving productivity and operator safety.
This grapple for forestry and agricultural applications is reliable and durable, optimizing work by reducing operational times.
Closed fork grapples firmly hold timber, preventing slippage and improving loading efficiency during handling.
The design and production of this MHS hydraulic grapple take place entirely in Sweden, combining quality, innovation, and reliability. 100% Made in EU, this hydraulic grapple guarantees superior performance, thanks to the integration of advanced technology and European craftsmanship.
Technical Specifications
Grapple for logs and timber for agricultural and forestry use, with a maximum capacity of 0.20 m³ and a maximum load capacity of 2000 kg.
Designed to withstand maximum pressures of 23 Mpa (equal to 230 bar), it offers optimal performance in demanding working conditions.
The structure is made of durable Hardox steel, to ensure solidity, durability, and excellent tensile strength.
Compatible with excavators from 3.0 to 4.0 Ton.
Dimensions in millimeters
| Model | A | B | C | D | E | F |
| Gripen 020 STD | 510 | 780 | 95 | 645 | 1400 | 397 |
Compatibility table for recommended maximum load capacity
| Operating Machine Tonnage Range | Recommended Maximum Grapple Load Capacity |
| 3 ÷ 4 ton | 2000 kg |
| 4 ÷ 5 ton | 2000 kg |
| 5 ÷ 6 ton | 2000 ÷ 3500 kg |
| 6 ÷ 8 ton | 3500 kg |
| 8 ÷ 10 ton | 3500 kg |
| 10 ÷ 12 ton | 4000 ÷ 5000 kg |
| 12 ÷ 14 ton | 5000 kg |
| 14 ÷ 16 ton | 5000 kg |
| 16 ÷ 18 ton | 5000 kg |
| 18 ÷ 20 ton | 5000 kg |
| 20 ÷ 24 ton | 5000 kg |
Features
- Forestry grapple for logs and timber
- With closed forks
- Horizontal cylinder
- Structure in Hardox steel
- Capacity 0.20 m³
- Load capacity 2000 kg
- Maximum pressure 23 Mpa / 230 bar
- For excavators up to 4.0 Ton
- Made in Sweden
- Made in EU
Technical Data
| Forks | Closed |
| Max Capacity | 0.20 m³ |
| Max Load Capacity | 2000 kg |
| Max Pressure | 23 Mpa - 230 bar |
| Material | HARDOX Steel |
| For Excavators | 3.0÷4.0 Ton |
| Closed Size | 51 x 784 x 39.7 cm |
| Open Size | 64.5 x 140 x 39.7 cm |
| Weight | 130 kg |
