Eco Fresh Air FRE42000F
Industrial Fan
Ventilated Area 600-650 m²

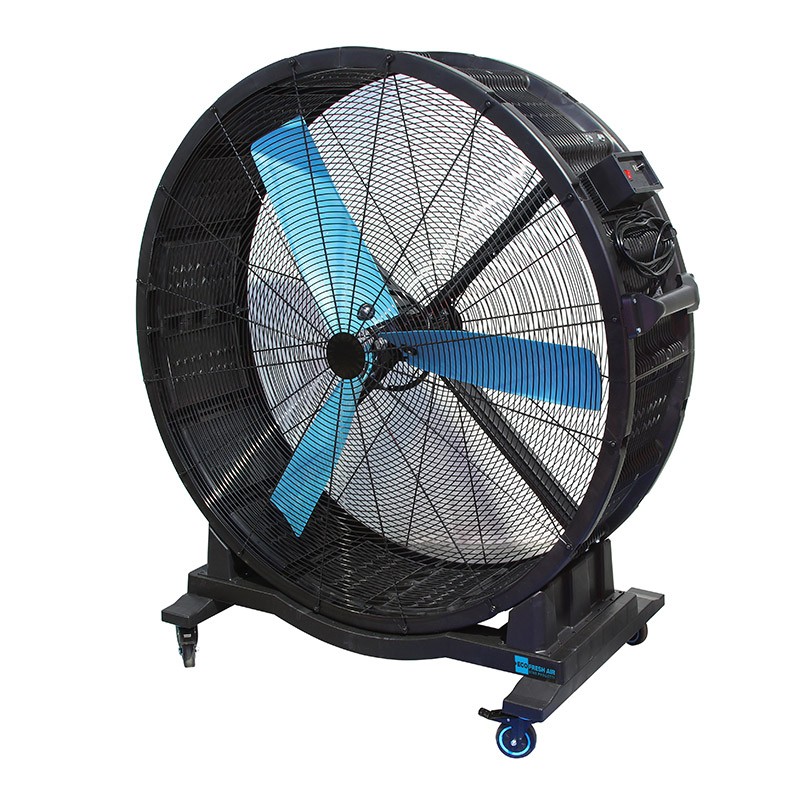

Eco Fresh Air FRE42000F - Industrial Fan

The Eco Fresh Air FRE42000F is a professional industrial fan designed for cooling and air movement in large spaces. Part of the company's range of high-capacity portable air conditioners and fans, it offers high performance thanks to advanced technology that ensures a powerful and uniform airflow. The system is ideal for warehouses, workshops, and production spaces where it is necessary to quickly improve air circulation without permanent installations. Its robust construction and wheeled design make it easy to move, while the high-efficiency motor ensures low energy consumption and continuous operation. With an extended air throw and wide coverage, this device represents an effective solution for industrial environmental comfort, combining power, reliability, and ease of use in a single high-performance professional machine.

Ventilated area 600-650 m²

Functional specifications

High air flow and extended coverage

Eco Fresh Air FRE42000F is capable of generating an air flow rate of up to 42,000 m³/h, with indicative coverage of between 600 and 650 m². The air throw can reach up to 45 m , ensuring uniform distribution even in very large spaces. Under certain operating conditions, the flow can be felt up to approximately 14 m of effective height , contributing to effective cooling even in vertical structures or with high ceilings.

PMSM permanent magnet motor

The professional fan is equipped with a PMSM brushless synchronous motor with permanent magnets , designed for high energy efficiency and low maintenance. The VFD inverter control system with potentiometer allows for precise adjustment of the fan speed. The maximum speed can reach up to 480 RPM , allowing the airflow to be adapted to different environmental and operating conditions.

Robust structure and industrial safety

The fan has a diameter of 1.25 m (48”) , which allows for a large air movement capacity. The structure is made of resistant materials and is IP54 certified , guaranteeing protection against dust and splashes of water. The integrated wheels with braking system make it easy to move and ensure stability during use.

Efficiency and low noise

With low power consumption (approximately 600 W) and a noise level of less than or equal to 75 dB , the Eco Fresh FRE42000F fan represents an efficient solution for industrial cooling. It is powered by 220–240V, making it compatible with standard systems. Thanks to the combination of power, mobility, and advanced airflow control, it is ideal for production environments that require continuous and reliable ventilation without fixed installations.

Eco Fresh Air FRE4200F is a single-phase fan designed for industrial use , powered by a PMSM (permanent magnet synchronous) motor , equipped with VFD control with potentiometer and adjustable speed .

Scope of application

• Industrial
• Large spaces

Characteristics

• PMSM engine
• VFD Control
• Adjustable speed
• Fan diameter 1.25 m (48”)
• Maximum speed 480 RPM
• Air outlet distance 45 m
• Consumption 600 W
• Air flow 42000 m³/h
• Ventilated area 600÷650 m²
• Wheels with brakes
