Fral FAN COIL 20-40
Summer/Winter fan
MPN: FAN COIL 20-40
230 V - 0,5 kW
2100 m³/h - 53 dB - Made in Italy
Warranty 2 years
14 days to change your mind
Shipped on Pallet
Fral FAN COIL 20-40 - Air Treatment Fan 20/40 kW
Fral FAN COIL 20-40 , fan The Fan Coil 20-40 is a powerful and reliable air treatment unit with a maximum air flow rate of 2100 m³/h . The unit connects quickly to a chiller or chilled water circuit via a 11/4" camlock connection .
Ideal as a fan with a cooling capacity of 20 kW , Fral FAN COL has a heating capacity of 40 kW .
Professional fan with a pleasant and space- saving design, Fral FAN COIL is equipped with a silent motor that allows very low noise (53 dB) . Fral single-phase fan, Fral FAN COIL 20-40 has:
- Standard single-phase connection
- Adjustable air discharge grille
- Electronic control
- Motorized 3-way valve
- Automatic thermostat
- Remote control
Model 20 kW cooling and heating capacity

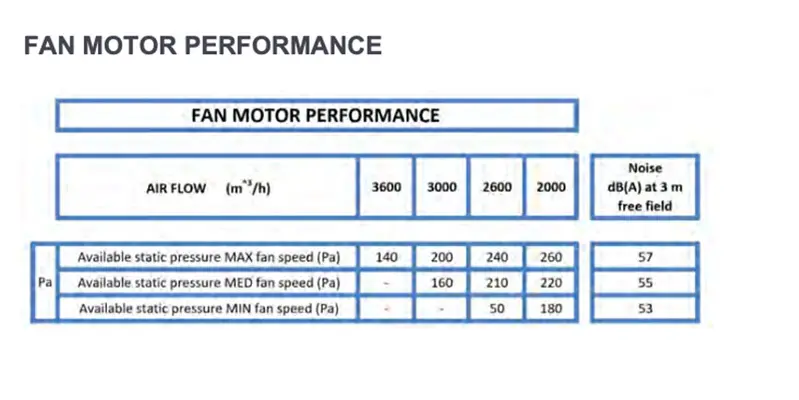

Fan capacity

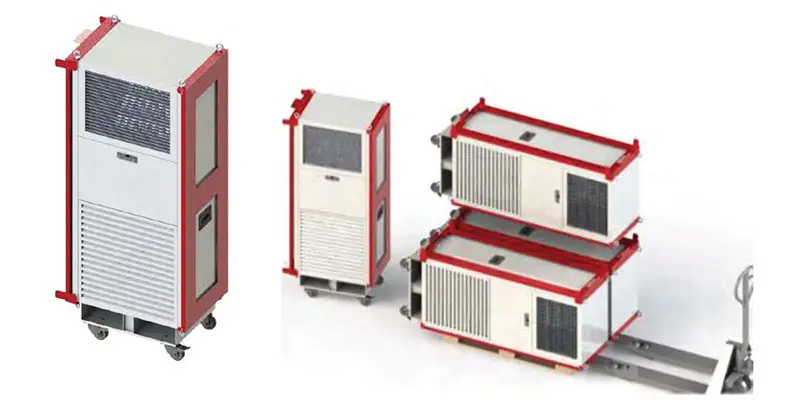

Special Cages for Unit Storage
Fral FAN COIL 20-40 can be placed in special cages: ideal for industrial, shipbuilding and building use.
Main features
- Professional fan with hot/cold function
- Silent motor
- Pleasant design
- Electronic control
- Air discharge grille
- Motorized 3-way valve
- Made in Italy
- Remote Control
Technical data
| Cooling capacity | 20 kW |
| Max Absorbed Power | 40 kW |
| Working Temperature Range | 10 / 50 °C |
| Water temperature range on coil | 5 / 80°C |
| Loss of liquid pressure | 38kPa |
| max pressure | 6 bars |
| Condensate drain connection | 3/4'' |
| Fluid Coupling | 1 |
| Power Supply | 230V |
| Max Absorbed Power | 0.5 kW |
| Max Absorbed Current | 1.6A |
| LRA current | 11 A |
| Air Flow | 1600÷2100 m³/h |
| Massimo Launch | 10/12/18m |
| Noisiness | 53dB |
| Dimensions | 72 x 165 x 52cm |
| Weight | 101kg |
Technical data
| Cooling capacity | 20 kW |
| Max Absorbed Power | 40 kW |
| Working Temperature Range | 10 / 50 °C |
| Water temperature range on coil | 5 / 80°C |
| Loss of liquid pressure | 38kPa |
| max pressure | 6 bars |
| Condensate drain connection | 3/4'' |
| Fluid Coupling | 1 |
| Power Supply | 230V |
| Max Absorbed Power | 0.5 kW |
| Max Absorbed Current | 1.6A |
| LRA current | 11 A |
| Air Flow | 1600÷2100 m³/h |
| Massimo Launch | 10/12/18m |
| Noisiness | 53dB |
| Dimensions | 72 x 165 x 52cm |
| Weight | 101kg |
