Eco Fresh Air FRE18000F
Oscillating Wall Fan

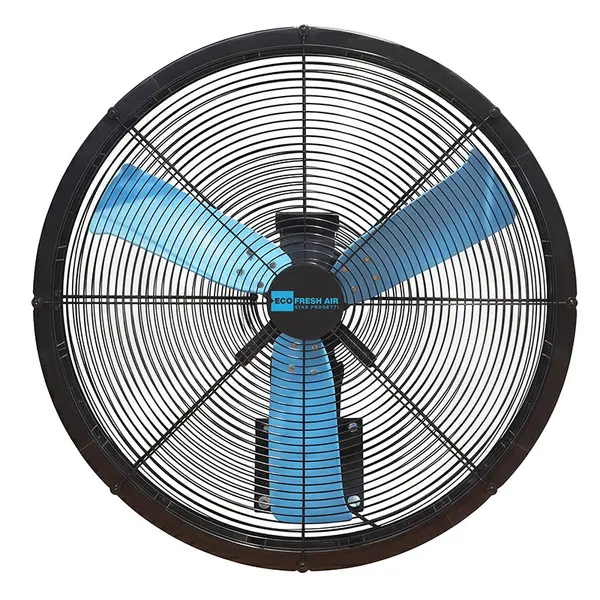

Eco Fresh Air FRE18000F - Professional Industrial Wall Fan

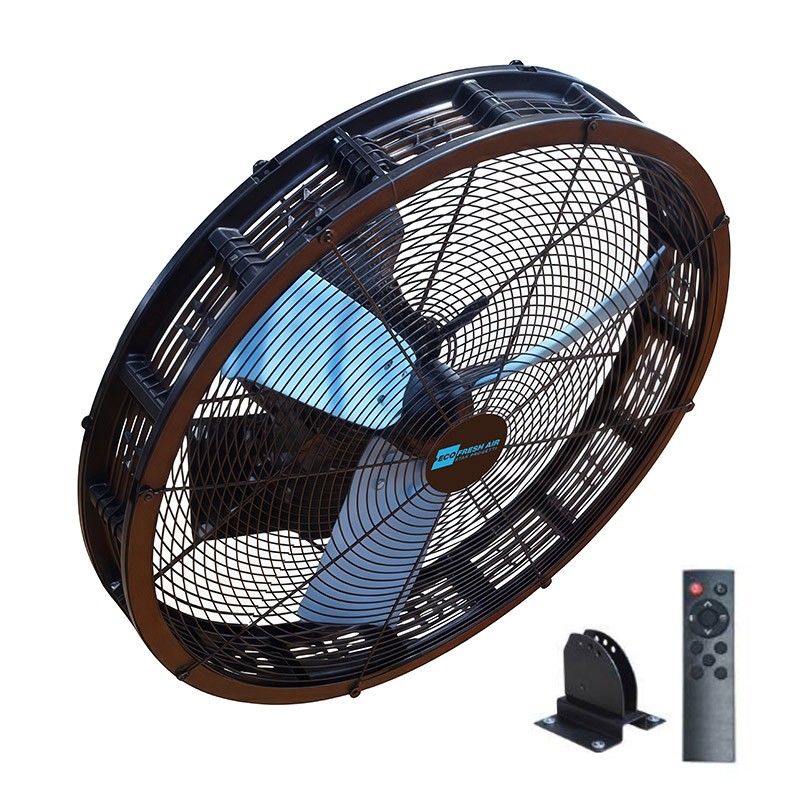

The Eco Fresh Air FRE18000F professional wall-mounted oscillating fan is an industrial solution designed to ensure high air flow and effective cooling in medium and large spaces. Thanks to the PMSM brushless synchronous motor with permanent magnets , it offers high performance with low consumption and a long operating life. With an air flow rate of up to 18,000 m³/h and a throw of approximately 30 m , it ensures uniform ventilation over surfaces between 100 and 150 m² . The 82 cm fan diameter and oscillating system allow for optimal air flow distribution. Equipped with a 3-speed remote control , it is easy to manage even from a distance. The robust black structure and adjustable wall mounting bracket make it ideal for industrial and professional installations, with a recommended height between 2.5 and 2.8 m . Perfect for warehouses, workshops and large production spaces.

Wall installation
Ventilated area 100-150 m²
Remote control included

Functional specifications

Industrial Wall Fan

The Eco Fresh Air FRE18000F fan is designed for professional applications requiring powerful and constant air exchange. The air flow rate of up to 18,000 m³/h allows for the movement of large volumes of air, improving thermal comfort in industrial environments, warehouses, and production areas. The oscillating system expands the airflow coverage, ensuring even distribution over surfaces up to 150 m². The robust construction and 82 cm fan diameter ensure stability and high performance even during continuous use. This model represents an efficient solution for professional ventilation.

Brushless Motor and Reduced Consumption

The brushless PMSM synchronous motor with permanent magnets is the technological heart of the FRE18000F fan. This solution guarantees high energy efficiency, reducing consumption to just 420 W while maintaining high performance over time. The system is designed for continuous operation with low noise levels, ideal for industrial environments where acoustic comfort is important. The 3 speeds, adjustable via remote control, allow the airflow to be adapted to different operating needs, optimizing consumption and improving the overall efficiency of the ventilation system.

Wall installation and coverage area up to 150 m²

The FRE18000F fan is designed for wall installation using an adjustable mounting bracket, which allows for stable and secure mounting. The recommended installation height varies between 2.5 and 2.8 m , optimizing air diffusion in the room. With an estimated ventilated area of 100 to 150 m² , the device is ideal for industrial spaces, warehouses and workshops. The net weight of 22 kg guarantees structural solidity without compromising ease of installation . The air throw of up to 30 m ensures effective ventilation even in deep and complex spaces.

Scope of application

• Warehouses and sheds
• Workshops and production plants
• Gyms and sports halls
• Showrooms, fairs, nightclubs
• Restaurants and clubs

Characteristics

• PMSM engine
• Oscillating
• Fan diameter 82 cm
• 800 RPM
• Air throw up to 30 m
• Complete with bracket and wall fixing
• Includes remote control
• Installation height 2.5/2.8 m
• Ideal for commercial spaces and warehouses
