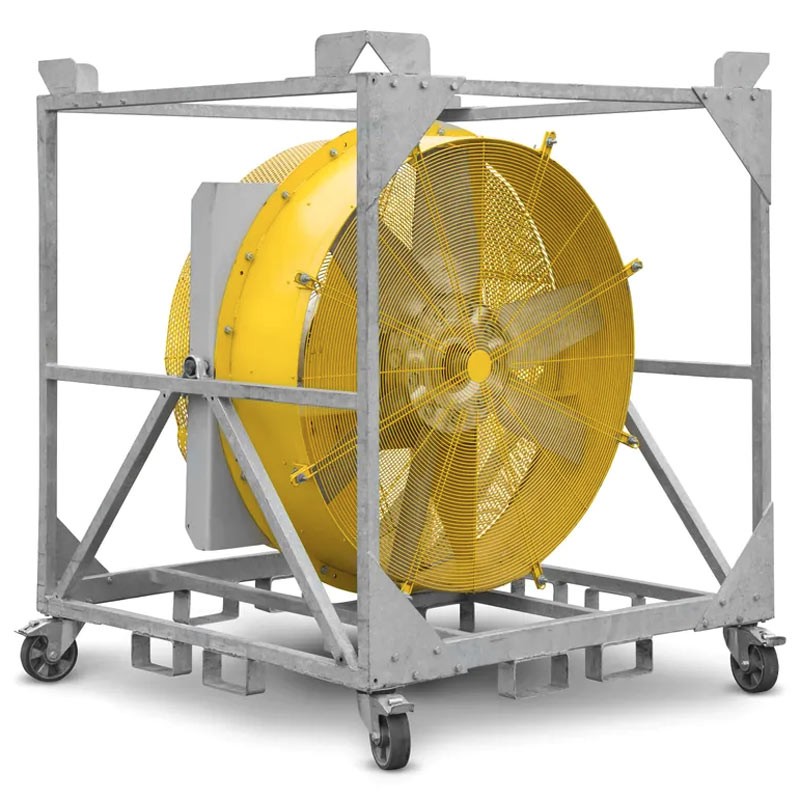

Trotec TTW 100000 Industrial Axial Fan 109,000 m³/h

Trotec TTW 100000 - Industrial Axial Fan with Air Flow of 109,000 m³/h

The Trotec TTW 100000 is an industrial axial fan designed for high-intensity professional applications in the industry , logistics and entertainment sectors. With a maximum air flow rate of 109,000 m³/h , it represents a reliable solution for powerful and efficient mobile ventilation , even in complex and explosion-risk environments thanks to ATEX Zone 2 (Ex II 3 G), T4 explosion protection . Manufactured in Germany to the highest standards, it features an extremely robust construction and adjustable air flow angle , ideal for intensive use indoors and outdoors.

Thanks to the presence of the frequency regulator , the TTW 100000 allows precise control of performance, allowing optimal management of the air flow even over long distances. The IP55 protection class , combined with the possibility of movement by forklift or crane , guarantees maximum operational versatility even in critical industrial contexts.

Technical Specifications

The Trotec TTW 100000 axial fan is powered by a three-phase 400V voltage and has a power consumption of 20 kW . The motor is integrated into a high IP55 protection structure, making it suitable for humid and dusty environments.

The TTW 100000's performance reaches an air output speed of 88.56 km/h , with a maximum pressure of 600 Pa and a maximum air flow temperature of 60°C . It is capable of covering a throw distance of up to 120 m outdoors and 400 m indoors , while maintaining low noise levels of 86 dB(A) at 3 m away.

Functional Specifications

High-capacity industrial ventilation

The heart of the TTW 100000 industrial axial fan is its ability to generate a continuous and powerful airflow, with a maximum capacity of 109,000 m³/h . The outgoing airflow is direct and concentrated, ideal for forced ventilation, cooling, drying, or rapid air exchange in large spaces, such as warehouses, tent structures, or industrial buildings.

Precise performance control with continuous adjustment

The device features stepless airflow regulation thanks to its frequency regulator , allowing for precise adjustment of the desired power output based on specific site requirements. This level of control makes it ideal for integration into temporary or dynamic systems, where operational flexibility is essential.

ATEX protection for hazardous environments

The TTW 100000 is certified for use in ATEX Zone 2 , thanks to the protection class Ex II 3 G, T4 . This feature makes it suitable for use in industrial environments with risk of explosive atmospheres generated by flammable gases or vapors, such as refineries, chemical plants, or logistics environments with volatile substances.

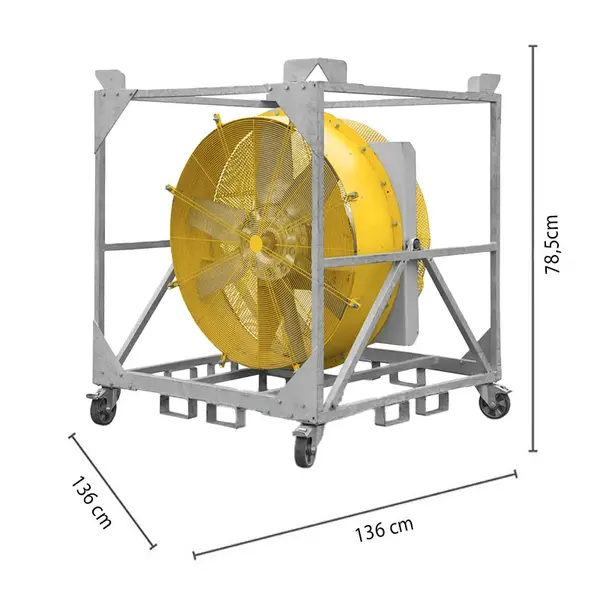

Mobile and resistant structure for professional use

Made from a high-strength steel frame, the Trotec TTW 100000 is built to withstand harsh conditions and frequent transport. Rubber wheels and attachment points for forklifts or cranes ensure easy and safe handling, even on uneven terrain or outdoors.

Adjustable airflow orientation

The continuously adjustable tilt mechanism allows the air flow to be directed towards walls or ceilings , optimizing flow distribution even in complex structures. This feature is particularly useful when drying large surfaces or for temporarily air conditioning vertical spaces.

Characteristics

• Axial fans for industry and entertainment
• Maximum flow rate 109,000 m³/h
• Max pressure 600 PA
• ATEX Zone 2 Explosion Protection - Ex II 3G
• IP55 protection
• Low noise 86 dB(A)
• Weight 430 kg
