Trotec TTW 45000
Axial Fan - Industrial 45,600 m³/h

Trotec TTW 45000 - Industrial Axial Fan with Air Flow Rate of 45,600 m³/h

The Trotec TTW 45000 is a high-performance industrial axial fan designed for professional ventilation of large spaces in industrial, commercial, and entertainment settings. This extremely robust and reliable mobile professional fan stands out for its powerful airflow and ability to operate even under the most challenging conditions, making it the ideal choice for large warehouses, hangars, film studios, and event venues. Designed for intensive and prolonged use, the TTW 45000 is engineered for maximum operational stability, with the option of stacking up to 4 units for large-scale ventilation setups.

Technical Specifications

The Trotec TTW 45000 axial fan operates on a three-phase 400V power supply , with a power consumption of 1.5 kW , enabling high and continuous output. The three-phase power supply ensures greater energy efficiency and reliability in demanding industrial environments, while the IP55 protection class ensures safe use even in harsh environmental conditions, where humidity and dust are present.

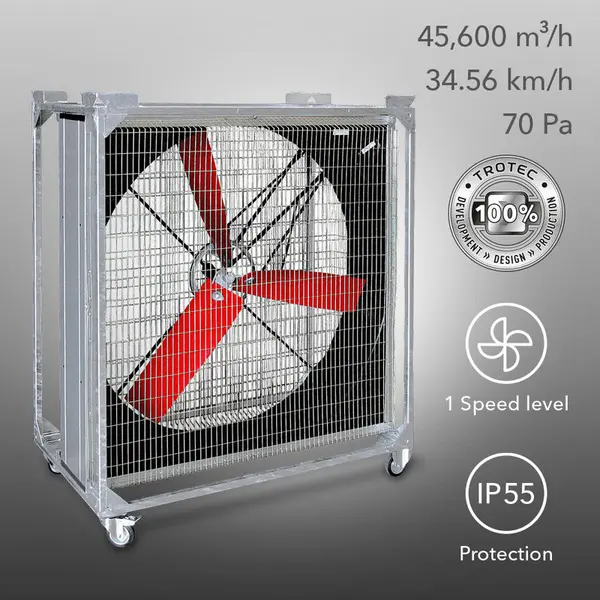

This professional industrial fan reaches an air flow rate of 45,600 m³/h , with an air flow speed of 34.56 km/h . The maximum pressure of 70 Pa , combined with a throw distance of up to 120 m indoors (20 m outdoors), makes it perfect for applications requiring long-distance air transport. The low noise level of 65 dB(A) at 3 m allows it to be used even in contexts where low acoustic standards are required.

Functional Specifications

High-capacity industrial ventilation

The TTW 45000 is designed to ensure extremely high-volume air circulation , making it ideal for cooling large spaces , continuously ventilating warehouses , or removing fumes and heat from production areas. Its structure allows for a powerful and direct air thrust, useful in all situations where a stable and constant flow is required.

Designed for events and stage productions

This professional axial fan is widely used in the entertainment industry, thanks to its ability to realistically simulate wind and turbulence . Perfect for photo shoots , theaters , film productions , or fashion shows , it guarantees high-impact scenic effects even on very large surfaces.

Robustness and reliability in harsh environments

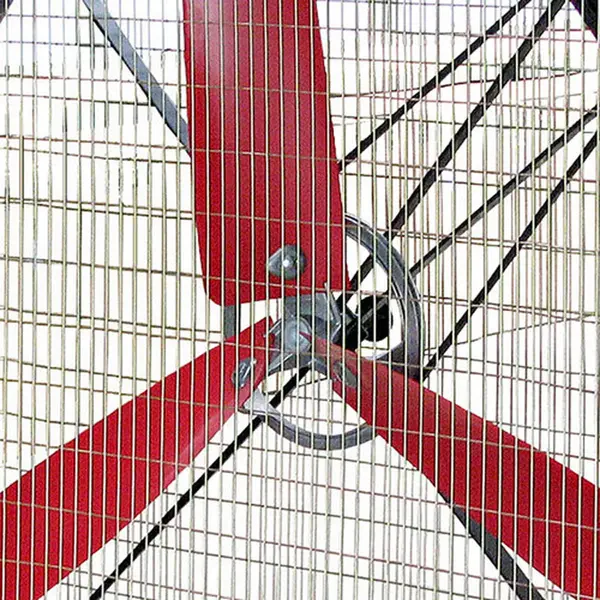

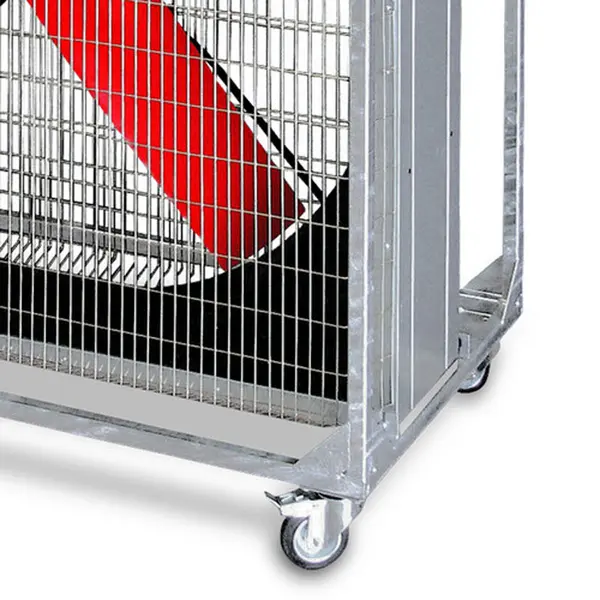

The Trotec TTW 45000 is constructed from high-quality industrial materials and features protective grilles on both the intake and outlet sides. The metal housing and rubber-coated metal wheels ensure maximum durability, even in dusty industrial environments or those subject to shock, vibration, and frequent transport.

Mobility and simplified management

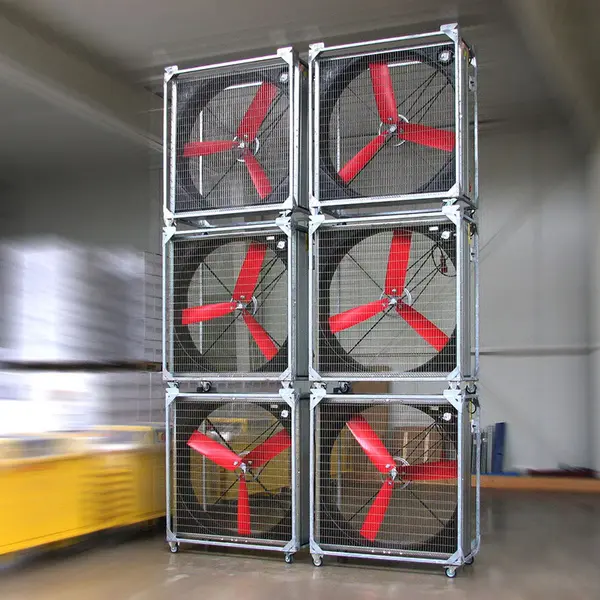

Equipped with a chassis with parking brakes and forklift and crane predisposition, the TTW 45000 is easily maneuverable, even on uneven surfaces. Its compact structure allows for optimizing warehouse space , with stacking up to 4 units high , making it an efficient "wind wall" that generates excellent ventilation on a large scale , while also offering a logistical advantage during storage.

Simple and intuitive operation

The fan features a single fan speed , optimized to always deliver maximum performance with minimal operating effort. The 0.7 m cable allows for quick connection to the network, while the control interface is designed for everyday use, even by non-specialist operators.

Characteristics

• Axial fans for industry and entertainment
• Maximum flow rate 45,600 m³/h
• Max pressure 70 PA
• IP55 protection
• Low noise 65 dB(A)
• Weight 88 kg
