Trotec TTW 20000
Axial Fan
Industrial 20,000 m³/h

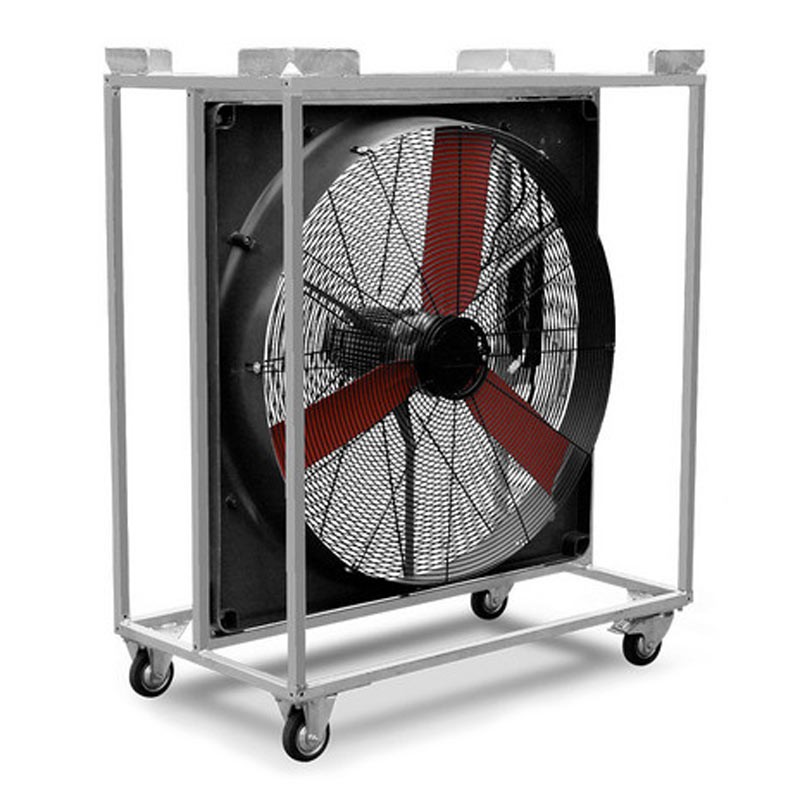

Trotec TTW 20000 - Industrial Axial Fan with Air Flow of 20,000 m³/h

The Trotec TTW 20000 is an industrial axial fan designed to meet the highest demands for professional air circulation . Designed for heavy-duty applications in industrial, commercial, and entertainment settings, this mobile professional fan is the ideal solution for cooling, continuous ventilation, or creating scenic effects on photo shoots, live events, and film productions. Its extremely robust construction, combined with a modular design that also allows for vertical stacking of up to 4 units , makes it perfect for intensive use by technical professionals.

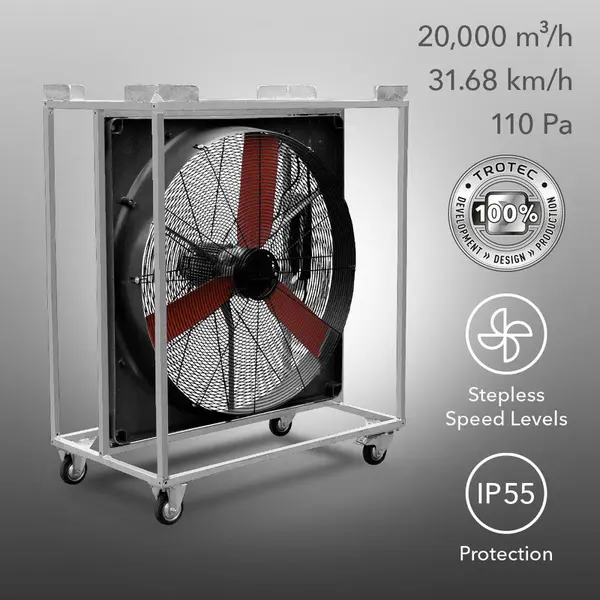

With an air flow rate of 20,000 m³/h , a flow velocity of 31.68 km/h and an air pressure of 110 Pa , the Trotec TTW 20000 offers high performance in any application. Equipped with continuously adjustable ventilation , it is able to generate powerful and constant air flows , proving extremely effective both indoors and outdoors. Its mobility, guaranteed by the frame with lockable wheels, allows for quick positioning wherever needed.

Technical Specifications

The Trotec TTW 20000 axial fan is powered by a single-phase 230V mains supply and has a power consumption of 0.79 kW , thus offering an optimal balance between energy consumption and operating efficiency. It is equipped with a 2.8 m power cable and is certified with protection class IP55 , ensuring effective protection against dust and water jets, for safe use even outdoors or in harsh conditions.

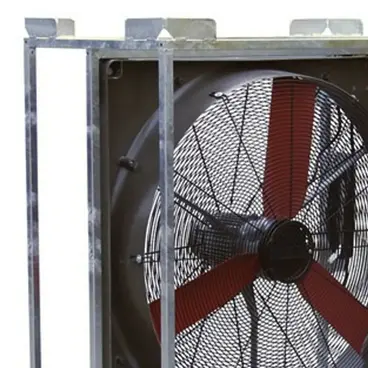

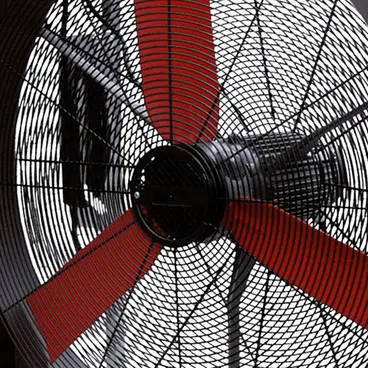

This professional industrial fan reaches an air flow rate of 20,000 m³/h with an air expulsion speed of 31.68 km/h , corresponding to a throw distance of up to 15 m outdoors and 58 m indoors . The air pressure developed is 110 Pa , while the noise level at a distance of 3 m is around 80 dB(A) . The axial ventilation system is supported by a high-performance plastic blade mounted on a robust metal housing with protective grilles on both sides.

Functional Specifications

Stackable structure for modular wind walls

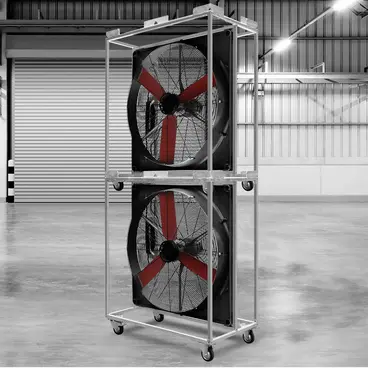

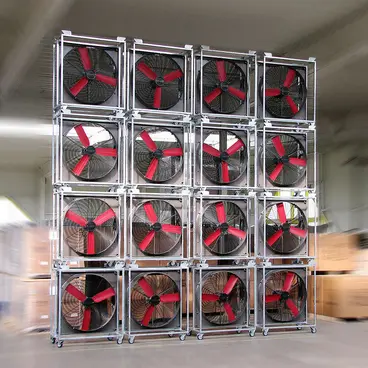

One of the most distinctive features of the Trotec TTW 20000 is the ability to stack up to four units on top of each other , creating true industrial air curtains or "wind walls." This feature is particularly appreciated in contexts requiring large-scale ventilation or weather simulations for stage sets, while also offering a logistical advantage during storage.

Adjustable ventilation for maximum operational precision

Thanks to its continuous ventilation regulation , the TTW 20000 allows you to adapt the airflow to the specific needs of the environment or type of use. This function is essential for achieving realistic atmospheric simulations or for modulating ventilation in large workspaces, improving the safety and comfort of technical personnel.

High mobility for dynamic applications

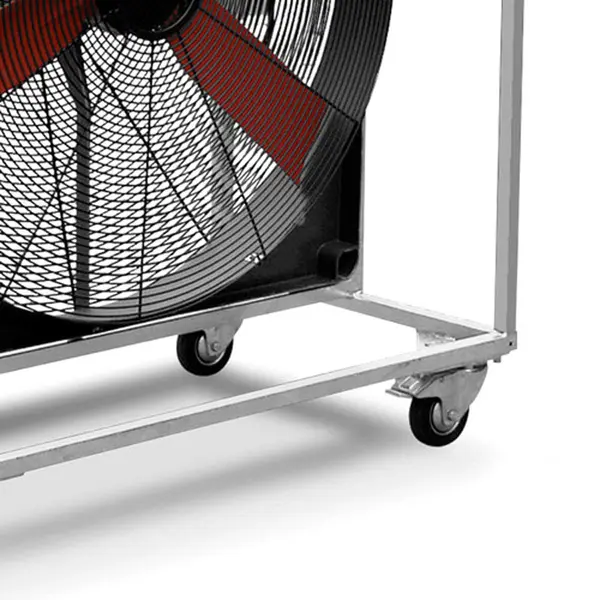

The presence of rubber-coated metal industrial wheels and a transport frame with parking brakes make this fan easily transportable, even on uneven surfaces. It can be maneuvered with forklifts or cranes in areas where frequent movement is required, without compromising stability during operation.

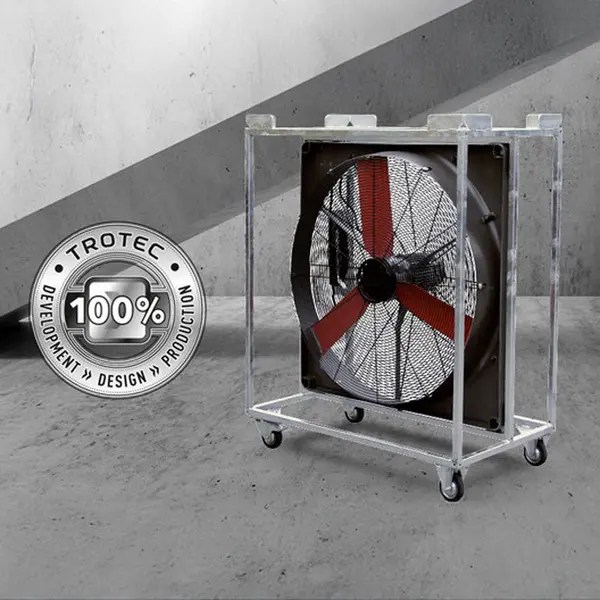

Ruggedness designed for continuous use

The Trotec TTW 20000 is designed to work continuously even in adverse environmental conditions , thanks to its all-metal frame , reinforced protective grilles and the mechanical resistance of the internal elements. It is particularly suitable for environments such as warehouses , hangars , industrial plants , stables , workshops and sheds , where high reliability and a long operating life are required.

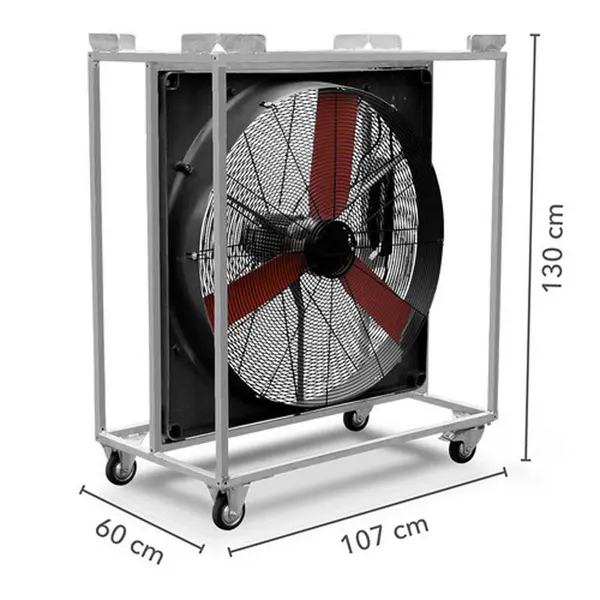

Professional applications in the events and entertainment sector

For theaters, television studios, film productions, music events, and concerts, the Trotec TTW 20000 professional wind machine is the ideal choice for generating spectacular wind effects , enhancing the visual and scenographic impact of productions. Its power and versatility make it indispensable in contexts where the dynamic effect of the air is an integral part of the final result.

Characteristics

• Axial fans for industry and entertainment
• Max flow rate 20,000 m³/h
• Max pressure 110 PA
• IP55 protection
• Low noise 80 dB(A)
• Weight 52 kg
