Trotec TTV 7000
Axial Fan 8500 m³/h
for Quick Drying

Trotec TTV 7000 - Professional Stackable Axial Fan

Trotec TTV 7000 is the reference axial fan for those looking for maximum power and versatility in industrial, construction or agricultural environments. Thanks to an air flow adjustable on 3 levels up to 8500 m³/h , it guarantees excellent air circulation even in very large spaces.

With a throw distance of up to 65 m indoors, it is the ideal solution for the effective ventilation of warehouses , production areas and storage rooms.

Suitable for high workloads , this product is stackable for transport and storage . The Trotec TTV7000 is Made in Germany .

Functional specifications

Efficient Fan with 8500 m³/h

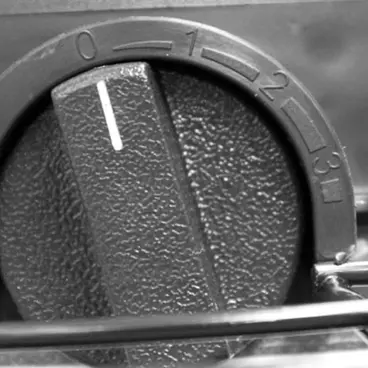

The Trotec TTV 7000 is equipped with a powerful axial fan with 3 adjustable fan speeds, capable of reaching a maximum air flow of 8500 m³/h . The air flow speed reaches up to 11 m/s (39.6 km/h) , allowing for rapid and effective ventilation even in large rooms. Thanks to its maximum pressure of 100 Pa , the device ensures excellent air distribution, making it ideal for industrial use and on construction sites.

Fan with the ability to project air over long distances

One of the distinctive features of the Trotec TTV 7000 axial fan is its ability to project air over long distances. In closed spaces, the throw distance is up to 65 meters, while in outdoor environments it reaches 20 meters . This feature makes it perfect for ventilation of warehouses, tunnels, construction sites and other environments that require a high air circulation capacity.

For drying and dehumidifier support

Thanks to its ability to increase the speed of the air flow on the surface of the materials, the TTV 7000 is a valuable ally in the building drying processes. The combination of a dehumidifier with the fan allows to reduce drying times by up to 50% , optimizing efficiency and accelerating delivery times on construction sites.

Ideal for renovation and restoration work

The Trotec TTV 7000 is compatible with a class M dust collector, ideal for protecting workers from the dangerous effects of fine dust. The combined use with washable dust bags allows compliance with DIN EN 60335-2-69, reducing exposure to harmful particles to a maximum dispersion of < 0.1% . A reliable and safe solution for remediation and demolition work.

Silent operation

The Trotec TTV 7000 has low energy consumption, with a power consumption of only 0.41 kW (1.8 A) at 230 V and 50 Hz. The maximum noise level is only 58 dB(A ) at a distance of 3 metres, ensuring quiet operation even in noise-sensitive working environments.

Robust construction and IP55 protection for external agents

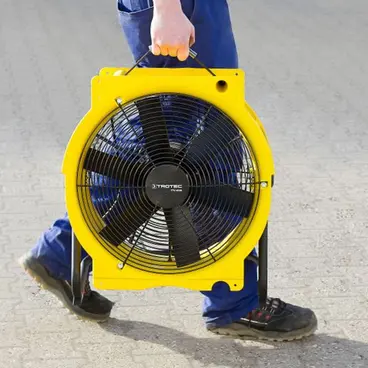

Built to last, the TTV 7000 is designed to operate in harsh conditions. Its robust construction and IP55 protection class make it resistant to splashes of water and external agents, while the carrying handle makes it easy to move the device. The fan is also stackable, optimizing storage and transport space.

Stackable for greater portability

The stackability of the Trotec TTV 7000 saves space during transport and storage , facilitating logistics management especially on construction sites and in rentals. The stable design allows multiple units to be safely stacked , reducing the risk of damage. It is ideal for orderly warehouses and rapid operations , without compromising its robustness. A smart solution for those who work in dynamic environments and need efficiency and organization in the field.

Axial fans for more effective drying

Trotec axial fans of the TTV and TTV-S series are the ideal solution to support construction drying in combination with professional dehumidifiers . These fans, thanks to the powerful air recirculation, optimize the drying process by drastically reducing the time required.

The use of Trotec fans together with Trotec dehumidifiers promotes rapid evaporation of humidity , improving the overall efficiency of the treatment. In fact, the higher the speed of the air on the surface of the materials, the faster the drying will be. Thanks to these characteristics, Trotec TTV and TTV-S fans are essential for rapid and professional building drying .

Characteristics

• Axial fan for industry and construction
• Max flow rate 8500 m³/h
• Adjustable airflow inlet/outlet
• 3 ventilation levels
• Max pressure 100 PA
• IP55 protection
• Low noise 56 dB(A)
• Weight 18.5 kg
