Trotec TTV 4500
Axial Fan 5300 m³/h
for Quick Drying

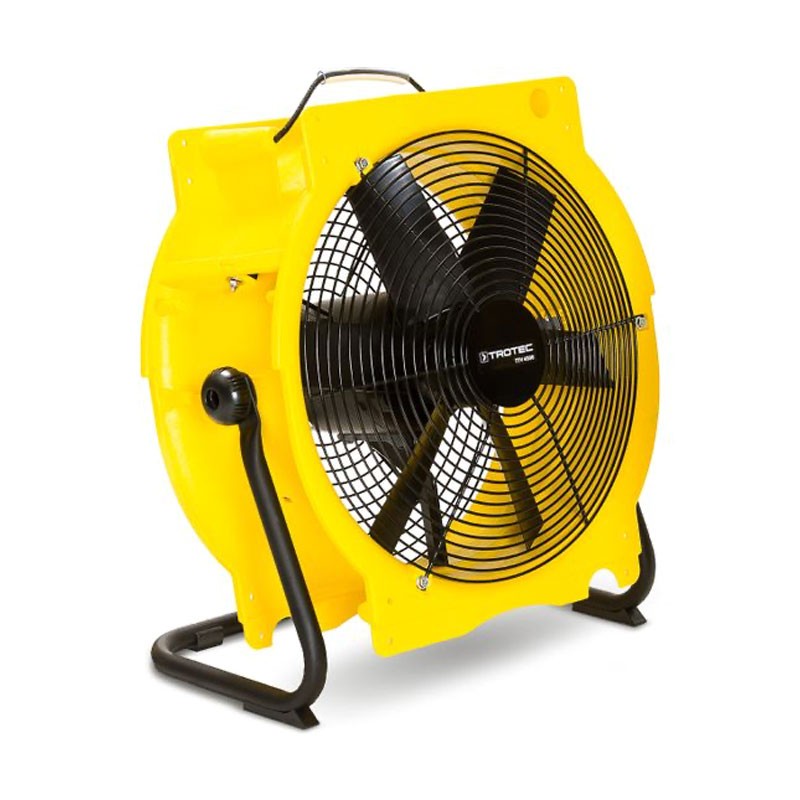

Trotec TTV 4500 - Professional Stackable Axial Fan

The Trotec TTV 4500 axial fan offers high performance for ventilation, building drying and dust extraction. Robust and durable , it is designed for harsh environments and continuous use. With an air flow rate of up to 5300 m³/h and compatibility with hose adapters and dust bags, it guarantees efficiency and safety at work. Thanks to its flexibility, it reduces drying times on construction sites and improves air quality in industrial environments.

Can be used in combination with condensation dehumidifiers in building drying processes.

Thanks to its powerful air circulation, it accelerates the evaporation of humidity , significantly reducing the drying times of materials.

Functional specifications

Efficient Fan with 5300 m³/h

The Trotec TTV 4500 is equipped with a powerful axial fan with three adjustable fan speeds, which can reach a maximum air flow rate of 5300 m³/h . The air flow speed reaches up to 11 m/s (39.6 km/h) , allowing for fast and effective ventilation even in large rooms. Thanks to its maximum pressure of 80 Pa , the device ensures excellent air distribution, making it ideal for industrial use and on construction sites.

Fan with the ability to project air over long distances

One of the distinctive features of the Trotec TTV 4500 axial fan is its ability to project air over long distances. In closed spaces, the throw distance is up to 50 meters, while in outdoor environments it reaches 15 meters . This feature makes it perfect for ventilation of warehouses, tunnels, construction sites and other environments that require a high air circulation capacity.

For drying and dehumidifier support

Thanks to its ability to increase the speed of the air flow on the surface of the materials, the TTV 4500 is a valuable ally in the building drying processes. The combination of a dehumidifier with the fan allows to reduce drying times by up to 50% , optimizing efficiency and accelerating delivery times on construction sites.

Ideal for renovation and restoration work

The TTV 4500 fan is particularly useful in renovation and disposal work, where dust can pose a health risk. Trotec dust bags, compliant with dust class M and DIN EN 60335-2-69, ensure effective filtration of dirt particles, protecting workers from dangerous fine dust.

Silent operation

The Trotec TTV 4500 has low energy consumption, with a power consumption of just 0.25 kW (1.1 A) at 230 V and 50 Hz. The maximum noise level is only 53 dB(A ) at a distance of 3 metres, ensuring quiet operation even in noise-sensitive working environments.

Robust construction and IP55 protection for external agents

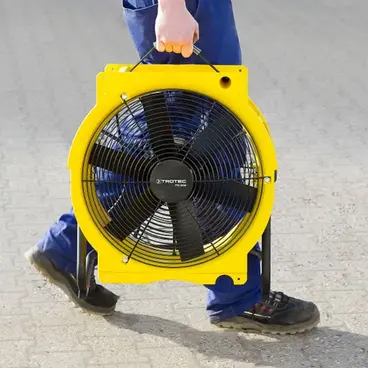

Built to last, the TTV 4500 is designed to operate in harsh conditions. Its robust construction and IP55 protection class make it resistant to splashes of water and external agents, while the carrying handle makes it easy to move the device. The fan is also stackable, optimizing storage and transport space.

Axial fans for more effective drying

Trotec axial fans of the TTV and TTV-S series are the ideal solution to support construction drying in combination with professional dehumidifiers . These fans, thanks to the powerful air recirculation, optimize the drying process by drastically reducing the time required.

The use of Trotec fans together with Trotec dehumidifiers promotes rapid evaporation of humidity , improving the overall efficiency of the treatment. In fact, the higher the speed of the air on the surface of the materials, the faster the drying will be. Thanks to these characteristics, Trotec TTV and TTV-S fans are essential for rapid and professional building drying .

Characteristics

• Floor fan
• Max flow rate 5300 m³/h
• Adjustable airflow inlet/outlet
• 3 ventilation levels
• Max pressure 80 pa
• IP55 protection
• Low noise 53 dB(A)
• Weight 14.5 kg
