Fral EVC 12
Evaporative cooler 1200 m³/h - 3 speed operation

Fral EVC 12 - Evaporative cooler with flow rate 1200 m³/h and 3 speeds

Fral EVC 12 is an evaporative cooler characterized by a large cooling capacity and easy installation . Thanks to the air flow of 1200 m³/h this mobile cooling system can cover a surface of up to 30 m² .

Very silent thanks to the latest generation electronic fans, this Fral EVC12 cooler is equipped with a water storage system with 18L capacity and allows you to monitor the water level thanks to a special control system .

Catalog image

Technical specifications

Fral EVC 12 has an average nominal absorbed power of 20 W and can cover surfaces of up to 30 m². The fans have adjustable speed in 3 modes depending on the needs of the environment and the silent operation with a sound pressure level of less than 54 dB(A) allows it to be used even in more sensitive environments.

Equipped with a water tank with a capacity of 18L, it has a direct water connection designed for automatic refilling.

230V connection (50 Hz).

Functional Specifications

The Fral EVC12 Evaporative Cooling System has 4 sturdy wheels to facilitate movement and has automatic restart in the event of a sudden power cut.

With a washable air filter, this cooler allows for simplified and regular maintenance even by the less experienced user and features a highly corrosion-resistant body to guarantee a longer life.
Plug and Play system with installation in a few minutes for immediate use.

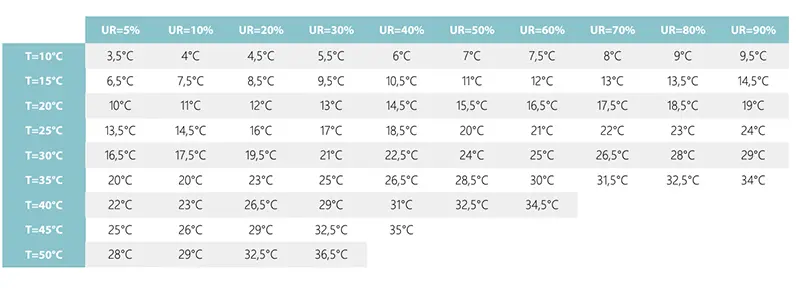

Theoretical temperature of the outlet air

OPERATION

Fral EVC 12 is an evaporative cooler that uses the evaporation of water to lower the temperature of the surrounding environment.

This evaporative cooler is mainly made up of a panel in which the water is distributed via a pump , the hot air present in the environment is sucked through this humid material by a fan.

The cooling process begins when the hot air absorbs the moisture present in the porous material and the evaporated water absorbs the heat present in the air , thus reducing its temperature.

As a result, the refreshed air is blown into the surrounding environment via grilles or vents, creating a pleasant cooling effect .

It's important to note that evaporative cooling works best in places with low humidity , as the air has a greater ability to absorb moisture; In very humid environments, the air has a limited ability to absorb additional moisture, thus reducing the effectiveness of the cooling process.

Fields of Application

• Offices
• Industry
• Army
• Workshops
• Events
• Bar

Characteristics

• Great cooling capacity
• High efficiency and easy to use
• Plug and Play with installation in minutes
• Corrosion-resistant shell to ensure longer life
• Three-speed fan
• Very quiet thanks to the latest generation electronic fans
• Very low energy consumption
• 18L tank and automatic refill connection
• Easy to move thanks to the 4 sturdy wheels
• Automatic restart after power failure
• Washable air filter
