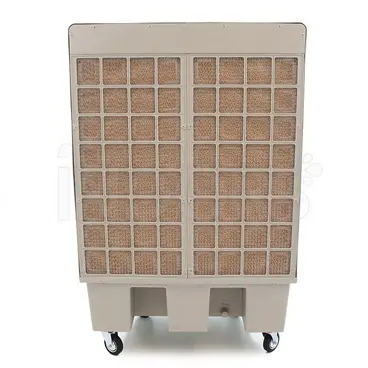

Fral EVC 120
Evaporation cooler 12000 m³/h

Fral EVC 120 - Evaporation cooler 250 m2

The Fral EVC 120 is a particularly high-performance evaporative cooler capable of offering considerable cooling capacity.

The EVC series of evaporative coolers stands out for its high efficiency and ease of use .

Catalog image

The installation of the Fral EVC 120 is quick and takes only a few minutes, once configured and ready for use, the device offers exceptional performance , furthermore, the body of the product is designed to resist corrosion , ensuring long life over time .

The Fral EVC 120 allows low energy consumption , helping to keep energy costs under control , furthermore it is equipped with four sturdy wheels which facilitate moving the cooler from one room to another, offering flexibility and adaptability to different situations.

TECHNICAL SPECIFICATIONS

The Fral EVC 120 is an evaporative cooler designed to provide optimal cooling , with a power of 475 W , it is an energy efficient device that offers a cool environment without excessive costs.

It features an impressive air flow rate of 12,000 cubic meters per hour , the air is able to circulate rapidly throughout the entire environment, thus ensuring uniform distribution of fresh air .

This makes the Fral EVC 120 perfect for cooling large spaces such as warehouses, conference rooms or large offices; the capacity of the water tank, equal to 70 L , allows the cooler to operate without interruption for long periods without having to refill frequently, making it particularly suitable in situations where access to water may be limited.

The Fral EVC 120 cooler covers a large surface area of up to 250 square meters , offering effective and comfortable cooling in large spaces.

All this makes it ideal for commercial or industrial uses , where environmental comfort is essential , plus an extra feature that makes it even more desirable is the presence of an included UV lamp , which plays an important role in sterilizing the water in the device and in preventing the formation of algae , thus ensuring clean and hygienic water.

UV LAMP

The Fral EVC 120 evaporative cooler is equipped with a UV lamp , which performs a dual function:

• Sterilize water to keep it clean and germ-free ;
• Prevent the formation of algae inside the device.

THREE SPEEDS

The Fral EVC 120 is equipped with a fan with three different speeds , allowing personalized adjustment of the cooling intensity based on the specific needs of the surrounding environment.

SILENT

One of the distinctive advantages of this Fral EVC 120 cooler is its silence , thanks to the use of cutting-edge electronic fans , which means that it is possible to enjoy a cool environment without being disturbed by annoying noises.

PLUG & PLAY

The Fral EVC 120 is extremely simple to use thanks to its Plug and Play system, which allows you to start the device without having to deal with complications or complex configurations.
The digital control panel integrated on the machine, together with the practical remote control , makes managing the cooler intuitive and convenient , allowing for easy and immediate use.

WATER TANK

With a spacious 90 L tank and an automatic refill connection, the Fral EVC 120 is able to operate for long periods without the need for constant interventions.

WASHABLE AIR FILTER

The Fral EVC 120 is equipped with a washable air filter , making maintenance operations simple and helping to preserve the efficiency of the device over time.
With this cooler, you can enjoy a fresh, comfortable and healthy environment in an easy and convenient way.

OPERATION

Fral EVC 120 is an evaporative cooler that uses the evaporation of water to lower the temperature of the surrounding environment.

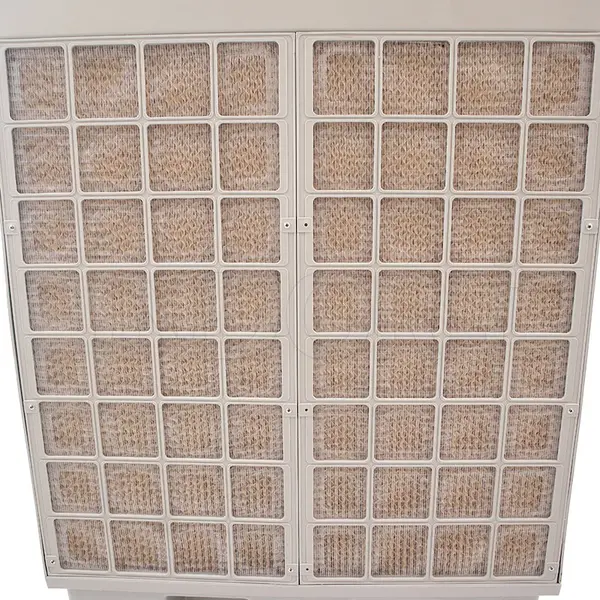

This evaporative cooler is mainly made up of a panel in which the water is distributed via a pump , the hot air present in the environment is sucked through this humid material by a fan.

The cooling process begins when the hot air absorbs the moisture present in the porous material and the evaporated water absorbs the heat present in the air , thus reducing its temperature. As a result, the refreshed air is blown into the surrounding environment via grilles or vents, creating a pleasant cooling effect .

It's important to note that evaporative cooling works best in places with low humidity , as the air has a greater ability to absorb moisture; In very humid environments, the air has a limited ability to absorb additional moisture, thus reducing the effectiveness of the cooling process.

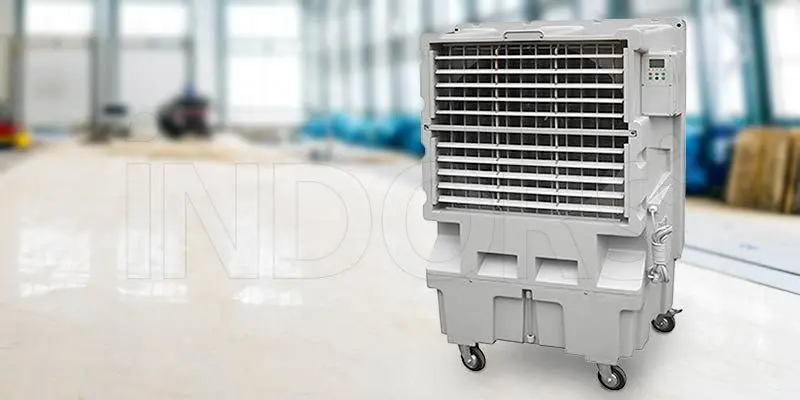

FIELDS OF APPLICATION

• Stores
• Industry
• Conference rooms
• Large offices

CHARACTERISTICS

• Great cooling capacity
• Efficient and easy to use
• Installation in minutes
• UV lamp included for water sterilization and to avoid the formation of algae
• Corrosion-resistant shell to ensure longer life
• Three speed fan
• Very low energy consumption
• Plug and Play function
• Digital control panel on board the machine and remote control
• Very large tank and automatic refill connection
• Easy to move thanks to the 4 sturdy wheels
• Automatic restart after power failure
• Washable air filter
• Average nominal power absorbed 475 W
• Air flow 12000 m3/h
• Water tank capacity 90 L
• Maximum covered area 250 m2
• UV lamp included
