Eco Fresh Air FRE40001
3-in-1 Industrial Air Cooler
With Ventilation and Humidification

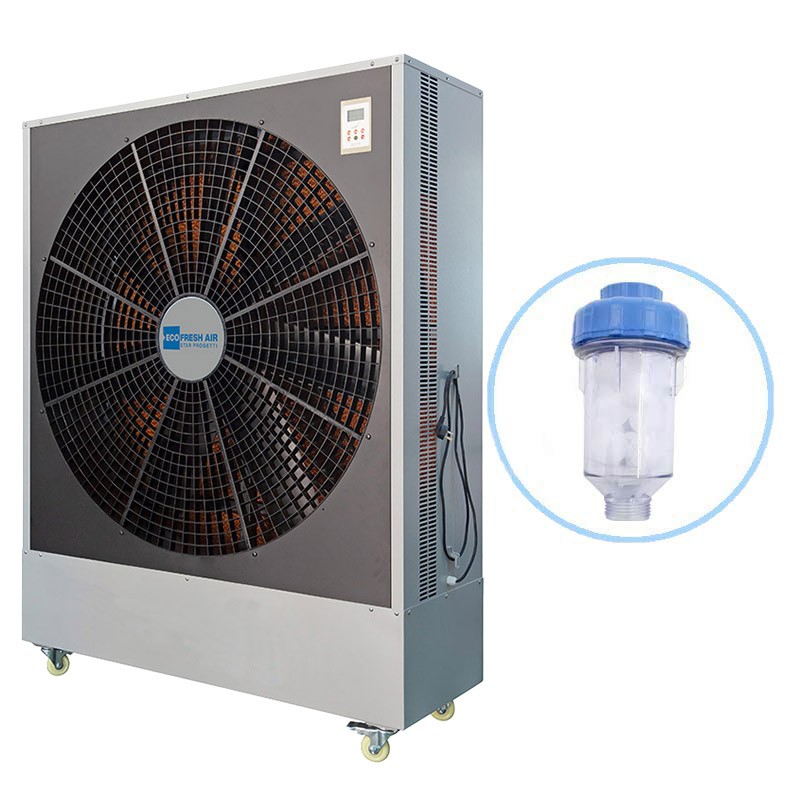

Eco Fresh Air FRE40001 - 3-in-1 Industrial Air Cooler

Eco Fresh Air FRE40001 is a 3-in-1 evaporative cooler designed for large industrial spaces. Designed to cover areas between 650 and 800 m² , this powerful 3-in-1 device combines ventilation, cooling and humidification in a sturdy stainless steel structure . It has a large 130 cm 7-blade fan, capable of generating an impressive air flow of 40,000 m³/h . Thanks to the super-ventilation Storm Function, the device concentrates the flow for instant and deep cooling, reaching a distance of up to 25 m. Management is simplified by an intuitive LCD panel with 12 adjustable speeds . The FRE40001 industrial cooler does more than just cool, it also guarantees maximum hygiene thanks to the integrated antibacterial UV device and external anti-scale filter. With a 200 L tank and the possibility of direct connection to the water mains , it ensures continuous, silent and highly efficient operation for workshops, hangars and sheds.

Cooled area 650-800 m²
Storm Function for Superventilation

Functional specifications

Stainless steel large area cooler

The ECO FRESH AIR FRE40001 evaporative cooler is the ultimate professional solution for climate control in large spaces. In settings where traditional air conditioning systems are inefficient or too expensive, the FRE40001 industrial cooler stands out for its ability to cool areas up to 800 m². Its solid stainless steel frame and anti-vibration polyurethane wheels make it a reliable and easy-to-position device, despite its significant technological weight of 99 kg.

Axial Ventilation and Super Ventilation STORM

The strength of this 3-in-1 cooler with fan function lies in its axial flow ventilation system . Equipped with a 7-blade fan with a record-breaking 130 cm diameter, the device manages 12 different speeds to adapt to any thermal requirement. The patented design of the duct and fan housing optimizes fluid dynamics, conveying air in a concentrated manner. For extremely hot situations, the Storm Function (Super Ventilation) pushes performance to the maximum, guaranteeing an air flow of 40,000 m³/h that reaches a distance of up to 25 meters.

Antibacterial UV, water mains connection and anti-clogging

Unlike conventional coolers, the ECO FRESH AIR FRE40001 features an antibacterial UV device that sanitizes the water before nebulization, protecting the health of operators. The patented anti-clogging system prevents the accumulation of dust and limescale, maintaining a constant water flow rate on the oversized double-layer filters. Connection to the water mains is facilitated by an external anti-limescale filter and an overflow drain system , which automates the management of the 200 L tank .

Energy efficiency and low noise

The FRE40001 3-in-1 industrial cooler maintains a low power consumption of 850 W , making it extremely efficient compared to traditional chillers. Its noise level, kept below 68 dB, allows for use in work environments without compromising acoustic comfort. Thanks to the secondary side air intakes and LCD control panel , the user can monitor every airflow parameter, ensuring uniform and constant cooling. It is the ideal tool for those seeking a "Comfort Zone" in large spaces, combining cutting-edge technology and maximum operational simplicity.

ANTIBACTERIAL UV DEVICE

The Eco Fresh Air FRE40001 air coolers use a UV lamp , installed in the tank, which sterilises the water and prevents the formation of bacteria and mould .

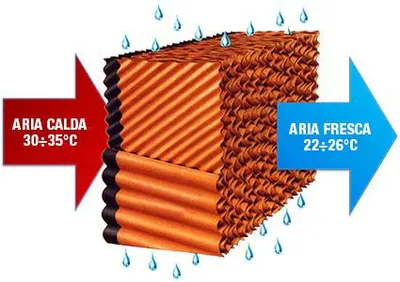

OPERATION Cooler

Evaporative coolers are equipped with special cellulose panels moistened by water from the tank. Warm air is drawn in by a powerful axial fan , then cooled through evaporation and released into the room at a lower temperature.

Eco Fresh Air FRE40001 , depending on your needs, cools you in hot periods or simply creates ventilation in less hot periods.

ANTI-LIMESCALE FILTER

Eco Fresh Air FRE40001 air cooler equipped with a limescale filter to be applied to the water supply tap to reduce the formation of limescale in the cooler's feed pump.

Fields of application

• Industrial environments
• Large spaces

Characteristics

• 3-in-1 cooler for industry
• Air flow rate up to 40,000 m3/h
• Large 7-blade fan Ø 130 cm
• Storm Function - Superventilation
• 12 Adjustable Speeds
• Sturdy Stainless Steel Structure
• 200 L tank
• Anti-clogging anti-scale filter
• Connectable to water mains with overflow drain system
• UV antibacterial device
• Polyurethane wheels with brake
• Cools up to 800 m²
• Ideal for industry and warehouses
