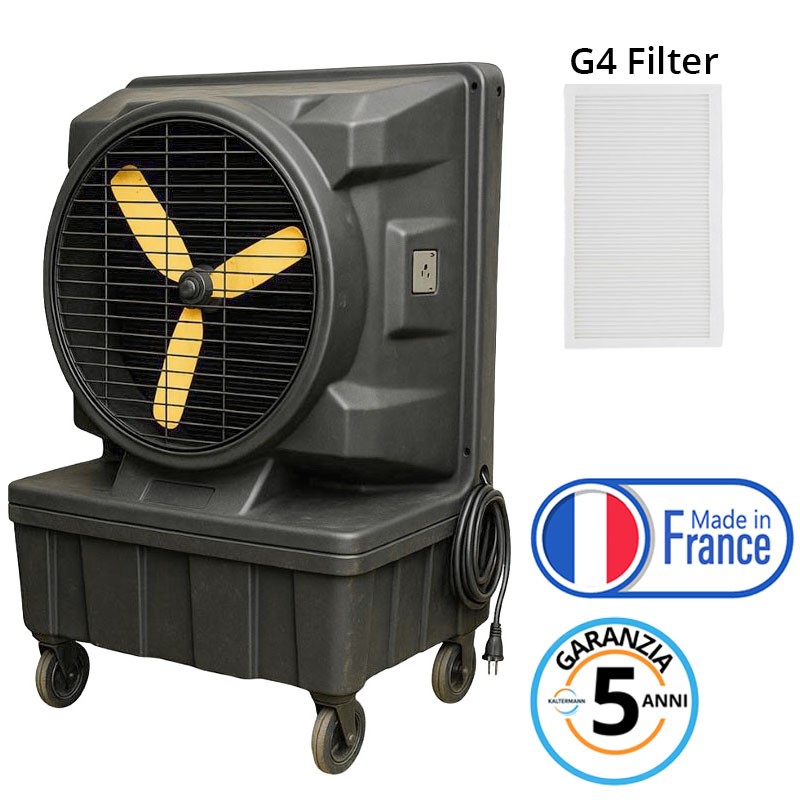

KALTERMANN KM22E
Industrial Evaporative Cooler with G4 PUREFLOW Dust Pre-filter
MPN: KM22E
230V - 640 W
22000 m³/h - approx. 250 m²
UV Antibacterial and G4 Pre-filter - Water Connection
€2,915.80
€2,390.00 tax excl.
Warranty 5
years
Shipped on Pallet
KALTERMANN KM22E - Industrial Adiabatic Cooler with Dust Pre-filter
for dusty environments such as Factories, Warehouses, Greenhouses, Workshops, and Event Areas
Kaltermann KM22E is a mobile air cooler ideal for environments, even very dusty ones, up to 250 m². It uses an efficient and economical evaporative cooling system, suitable for various work contexts. Its compact design facilitates movement.
This evaporative cooler is equipped with a Patented PureFlow Pre-filtration System, making it particularly suitable for very dusty environments, and a UV Lamp for disinfection from viruses, bacteria, fungi, and molds. 5-year warranty.
Main Features:
- Pureflow G4 Dust Pre-filter
- 5-YEAR WARRANTY
- Quick Plug & Play installation
- Easily removable filter for maintenance
- Possibility to add a metal filter for extra dust protection
- MADE IN FRANCE
- Disinfecting UV Lamp
Ideal for environments up to 250 m²
G4 Dust Pre-filter
ANTIBACTERIAL UV DEVICE
The Kaltermann KM22 cooler is equipped with an integrated antibacterial UV lamp, which adds an extra layer of protection for the environment's health.
This technology disinfects water and air, eliminating bacteria, viruses, fungi, and molds, ensuring a healthier and safer environment. The ultraviolet light works by destroying the genetic material of microorganisms, preventing their proliferation and improving the quality of the air released into the environment.
Particularly suitable for industrial environments or work areas, this system guarantees cleaner air, protection of worker health, and a safe and efficient working environment.
Cooling and Evaporation
The KALTERMANN KM22 cooler uses an evaporative cooling system. Hot air is drawn into the device and passed through a wet panel, which naturally lowers its temperature.
Unlike traditional systems, it does not use chemical refrigerants, offering an ecological, sustainable, and low environmental impact solution.
By utilizing the natural process of water evaporation, the device releases a flow of fresh and pleasant air into the environment, improving comfort efficiently and naturally.
PLUG AND PLAY INSTALLATION
The KALTERMANN KM22 cooler is designed with Plug and Play installation, meaning it's ready to use without the need for complicated assembly or additional systems. Simply connect it to the power supply, and the device is immediately operational, making installation quick, simple, and suitable even for those without technical experience.
The water tank can be filled manually or connected to the water mains for unlimited autonomy.
The filter is easily inspectable and replaceable in a few steps independently.
PUREFLOW PATENTED filtration
Pureflow filtration technology features a patented filtration and purification technology that significantly improves the performance and lifespan of mobile adiabatic coolers, even in environments with high dust concentrations.
This Kaltermann KM22 cooler has a G4 filter which guarantees 90% efficiency on particles from 100 μm.
Pureflow with G4 filter is specifically designed for use in dusty environments with high levels of airborne impurities.
It ensures the protection of the cooling system by shielding it from dust and increasing its performance and durability over time.
The G4 pre-filter is designed to offer effective protection against dust and impurities present in the air. Classified as ISO Coarse, this filter can block particles larger than 100 μm.
Strategically positioned at the system's inlet, it prevents impurities from entering the cooler, thus ensuring greater efficiency, performance, and long-term durability of the appliance.
Perfect for industrial environments and dusty work areas, improving operator health and safety.
Technical Specifications
Kaltermann KM22 uses technology that minimizes energy consumption compared to traditional cooling systems, making it a sustainable choice. Its power is 640 W with an air flow rate of 22,000 m³/h. KALTERMANN KM22 is designed to operate at relatively low noise levels (58-66 dB), making it suitable for work and commercial environments. Maintenance is minimal, thanks to easy access for filter cleaning and water management.
Its water capacity is 130 L with a water consumption ranging from 10 to 15 L/h.
N.B. To achieve the highest possible efficiency from the cooler, it is important that the environment is adequately ventilated
Scope of Use
Workshops and Warehouses
Thanks to its capacity to cool large areas up to 250 m², it is ideal for work environments where thermal efficiency is essential, but without the use of complex and expensive air conditioning systems.
Factories and Industries
In industrial environments, where dust can be a problem, the G4 pre-filter helps keep the air clean, protecting machinery and improving worker comfort.
Garages and Storage Rooms
KALTERMANN evaporative coolers are also useful in environments where materials are stored or vehicles are worked on, as they can reduce heat without compromising air quality.
Events and Fairs
The mobility and ease of installation make the KM22 particularly suitable for cooling temporary spaces, such as fairs and outdoor events, where climate management is a priority.
Greenhouses
In these environments, temperatures can become high, so a cooler like the KM12 allows for natural heat reduction, protecting crops and improving agricultural work.
Livestock Farms
These coolers can also be used in more sensitive environments, such as livestock farms. In these cases, the coolers should be placed at the entrance of the barn to ensure that the incoming air is not contaminated by internal dirt.
Features
- Evaporative cooling
- G4 dust pre-filter
- Integrated antibacterial UV lamp
- Suitable for large spaces
- Easy maintenance and cleaning
- Reduced energy consumption
- Programmable automatic timer function
- Quiet and compact
- Effective in dusty environments
- Plug & Play installation
- Made in France
Standard Equipment

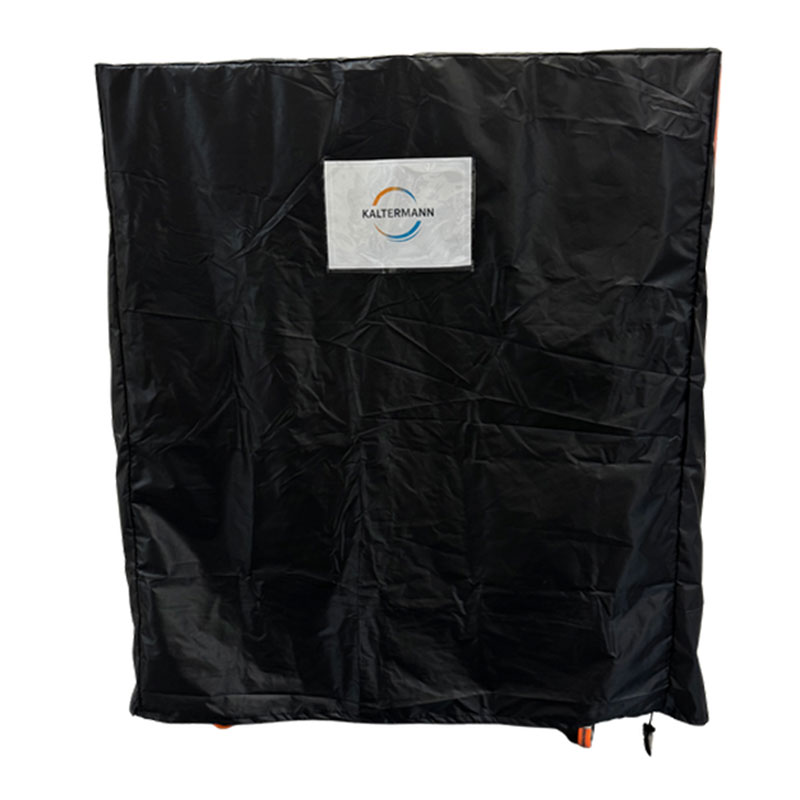

- Winter cover
- Honeycomb paper panel
- PUREFLOW G4 Dust Pre-filter
OPTIONAL METAL FILTER
It is possible to choose to equip the Kaltermann KM cooler with a metal filter. This filter is specifically designed for use in particularly dusty areas, such as workshops with oily mists and environments with a high presence of dust, like woodworking shops, stone processing, and similar.
5-Year Warranty
This Kaltermann product is covered by an extended 5-year warranty.
Please note that consumables like UV lamps and filters are excluded from the warranty.
Technical Data
| Power Supply | 230V |
| Consumption | 640 W |
| Max Airflow | 22000 m³/h |
| Cooled Area | up to 250 m² |
| Water Tank Capacity | 130 L |
| Water Consumption | 10÷15 L/h |
| Speed | 3 |
| Noise Level | 58÷66 dB |
| Pre-filter Type | G4 |
| Particle Filtration | > 10 μm |
| Antibacterial UV | YES |
| Timer | YES |
| Automatic Shut-off | YES |
| Water Refill | Manual/Automatic |
| Water Connection | 1/2'' |

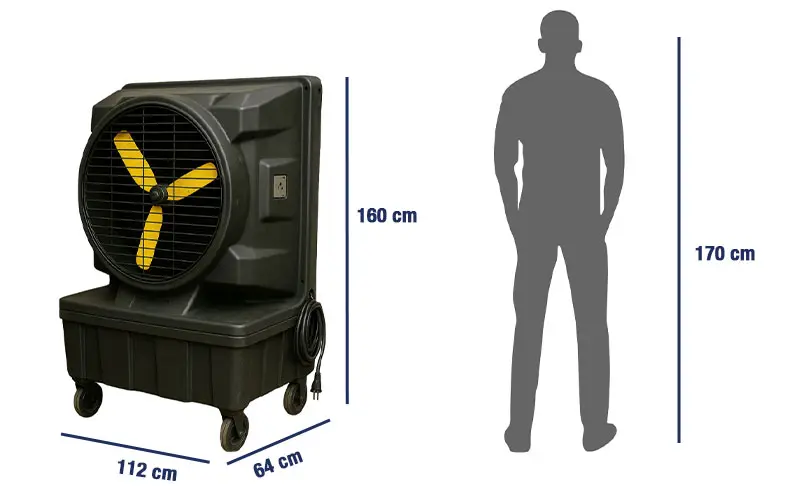

| Dimensions | 112 x 64 x 160 cm |
| Weight | 50 kg |
