Duplex Escalator 550 Professional
Escalator and moving walk cleaner

Lava Scalemobili Duplex Escalator 550 Professional

Description Duplex Escalator 550 Professional

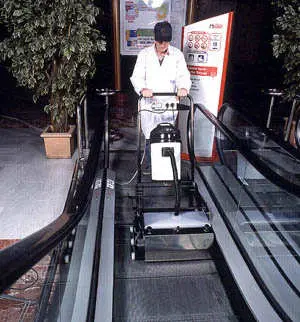

The Duplex Escalator Professional allows the cleaning and washing of moving escalators simply, effectively and in a short time. It is equipped with an original trolley for its transport and for easier positioning on the step surface. A patented self - guiding system keeps the machine stable and stationary in the working condition. With the first intervention, a pre-cleaning is carried out: the special differentiated brushes, in strong rotation, introduce their bristles into the depth of the grooves of the walking surfaces, expel and instantly lift the dry dirt and dust, projecting it into the chamber. depression created by the simultaneous action of a vacuum cleaner (aspirator / liquids) integrated into the system. Immediately afterwards, the machine distributes the special Detex liquid detergent. The action of the product, combined with the energetic action of the differentiated brushes, dissolves the sludge, the greasiness and any more solid dirt residue deposited inside the channels.
A powerful centrifugal action manages to project this waste material towards the conveyors, depositing it in the recovery tray without leaving a trace on the steps, which regain their original brilliance.
When the mobile system has been thoroughly cleaned for the first time, the subsequent cleaning interventions, if scheduled periodically, are simplified, significantly reducing the time.

The Duplex Detex detergent studied with a particular formulation, does not damage the mechanical parts of the staircase.

Duplex Escalator guarantees:

• Surprising results
• Ease of installation
• Automatic activation of the autoguiding system
• Simple and light use that does not tire the operator
• The use in both directions of the escalator or moving walk in service, when going up or down
• The characteristic position of the DUPLEX System cantilever brushes allows cleaning up to the left and right corners
• Double direction of work
• Original fully reversible carriage
• Distribution of the automatic cleaning solution
• Reduced working times

Standard equipment:

• Patented autoguider support
• Special brushes with equidistant bristle pitch (to be requested according to the type of ladder - Otis, Schindler, Kone, Tyssen, etc.)
• Integrated vacuum cleaner (vacuum cleaner / liquid) equipped with fittings and flexible hose
• Pressure pump detergent dispenser with filter
• Brush cover vacuum chambers
• Reversible trolley complete with electric controls
• Lid with suction nozzle
• Sampling of special Duplex Detex escalator cleaner
• Service keys
• Booklet or documentation for use and maintenance
• Test documents
