CGM 9000 SPTE
Generators Corrente 9 kW Full Power
MPN: 9000SPTE
230V/400V - 3/9 kW - 12 V
460 cc - 16 HP
BENZINA 4 TEMPI
€1,015.00
€831.97 tax excl.
Warranty 2 years
Shipped on Pallet

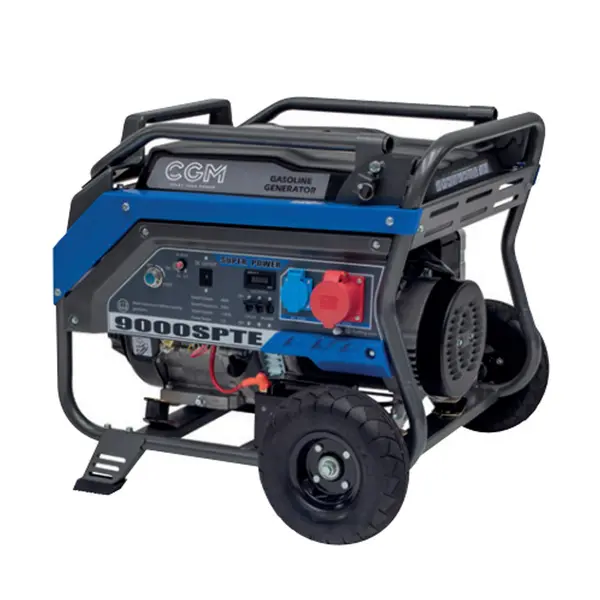

CGM 9000 SPTE - Three-phase generating set emergency power 9 kW
CGM 9000 SPTE is a professional power generator with 400V three-phase electric starting system and equipped with a 16 HP CGM Stage V engine . This wheeled generator set is powered by petrol and is suitable for use in homes, mobile installations, campsites or for hobbies.
The CGM 9000 SPTE Three-Phase Emergency Generator is capable of providing 7.2 kW (9 kWA) of emergency energy .
Equipped with AVR and part of the Super Power series with 3000 rpm engine, it is light and compact with a high autonomy tank and integrated trolley designed to facilitate transport.
Suitable for Emergency Use.
Functional specifications
Emergency Use Generator
CGM 9000 SPTE generator set is a wheeled generator for emergencies, designed for professional or hobby use, capable of providing emergency energy at 9 kW.
4-stroke petrol engine
The engine is a GCM Stage V type with 16 HP - 11.7 kW and 3000 rpm. Displacement is 460 cc . The Electric Starting System.
Self-excited alternator with brushes
CGM 9000 SPTE features a self-excited alternator with brushes, AVR voltage regulator to provide stable current, ideal for connecting smartphones and electronic devices.

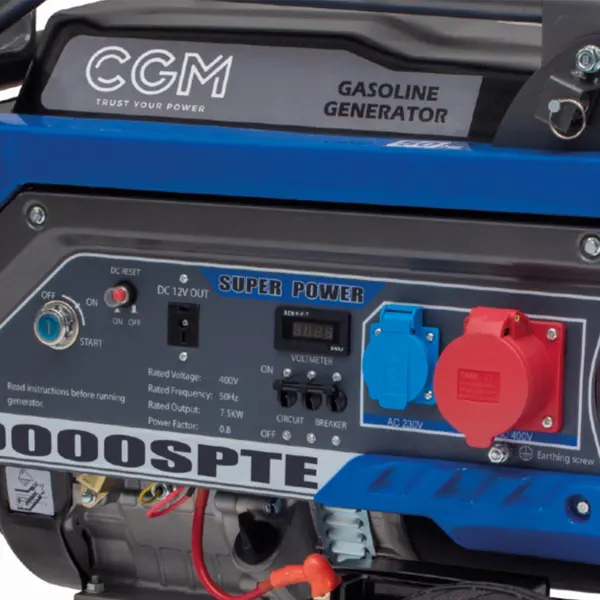

Manual Electrical Panel
This CGM 9000 SPTE Professional Generator Set features a manual electrical panel with 1 230 V Schuko socket , 1 16A 5P 400 V socket and 1 12 VDC socket . With thermal protection and multimeter; CGM 9000 SPTE also has an hour meter.
Petrol powered
CGM 9000 SPTE is an emergency energy generator powered by petrol and consumption of 2.1 Lt/h . The tank can hold up to 25 liters of fuel with an estimated autonomy of 11.9 hours.
Electrical connection
This Professional Gasoline Generator has three-phase voltage 400 V (50 Hz), the type of electrical system is 3F+N with power factor 0.8 ϕ. Rated amperage 13A.
Main features
- Wheeled generator
- GCM 16HP engine
- With AVR
- Electric starting with 12 V battery
- Self-excited alternator with brushes
- Easy to move
- Ideal for emergency use
- 25 L petrol tank
Standard equipment
- Painted steel base
- AVR electronic voltage regulator
- Trolley for manual handling
- Anti-vibration rubbers
- First filling liquids
Technical data
| Motor | 4 Stroke - CGM model |
| Fuel | Petrol - Stage V |
| Engine RPM | 3000 rpm |
| Petrol consumption | 2.1 L/h at 75% |
| Displacement | 460 cc |
| Horses | 16 HP |
| Engine Power | 11.7 kW |
| Reservoir | 25 L |
| Goodwill | Electric - Pull |
| Drums | 12V |
| Autonomy | 11.9am |
| Maximum single-phase power | 3 kVA - 2.4 kW cos φ 0.8 |
| Continuous single-phase power | 2.7 kVA - 2.2 kW cos φ 0.8 |
| Maximum three-phase power | 9 kVA - 7.2 kW cos φ 0.8 |
| Continuous three-phase power | 8.2 kVA - 6.6 kW cos φ 0.8 |
| Output Voltage | 400V 50Hz 13A |
| Alternator | Self-excited with brushes |
| AVR | YES |
| Automatic Emergency Panel | No |
| Voltage accuracy | +/- 1% |
| Dimension | 72.5 x 60 x 62 cm |
| Weight | 87kg |
Technical data
| Motor | 4 Stroke - CGM model |
| Fuel | Petrol - Stage V |
| Engine RPM | 3000 rpm |
| Petrol consumption | 2.1 L/h at 75% |
| Displacement | 460 cc |
| Horses | 16 HP |
| Engine Power | 11.7 kW |
| Reservoir | 25 L |
| Goodwill | Electric - Pull |
| Drums | 12V |
| Autonomy | 11.9am |
| Maximum single-phase power | 3 kVA - 2.4 kW cos φ 0.8 |
| Continuous single-phase power | 2.7 kVA - 2.2 kW cos φ 0.8 |
| Maximum three-phase power | 9 kVA - 7.2 kW cos φ 0.8 |
| Continuous three-phase power | 8.2 kVA - 6.6 kW cos φ 0.8 |
| Output Voltage | 400V 50Hz 13A |
| Alternator | Self-excited with brushes |
| AVR | YES |
| Automatic Emergency Panel | No |
| Voltage accuracy | +/- 1% |
| Dimension | 72.5 x 60 x 62 cm |
| Weight | 87kg |
