CGM DUAL 20000 SP
Emergency Power Generator
€4,560.00
- €653.00
€3,907.00
€3,202.46 tax excl.
library_add more options
MPN: DUAL20000 SP
230V/400V - 20.7kW - 12V
999 cc - 32 HP
PETROL 4 TEMPI
Warranty 2 years
14 days to change your mind
Shipped on Pallet

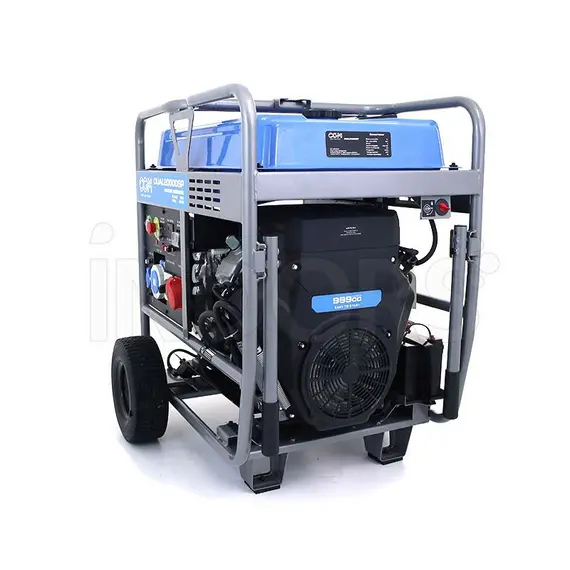

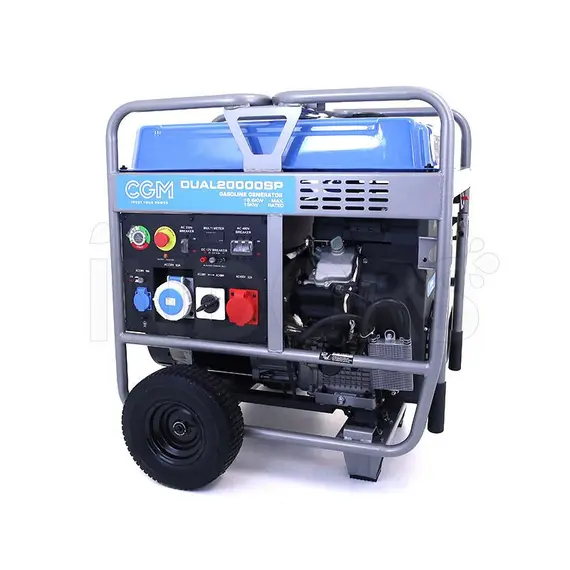

CGM DUAL 20000SP - Professional Full Power Generator Set 20.7 kW
CGM Dual 20000 SP is a professional current generator with AVR ideal for use in case of emergency for homes, itinerant systems, camping or for the hobby. In both single-phase and three-phase mode, this generator set is capable of donating 20.7 kW of emergency power.
CGM Dual 20000 SP mounts a CGM OHV1000 Stage V engine of 32 HP for 3000 rpm at 2 displacements and with a displacement of 999 cc and is characterized by the presence of a Single-phase / Three-phase voltage selector to switch from 230V to 400V depending on of needs. Complete manual control panel and transport trolley included for greater ease of transport.

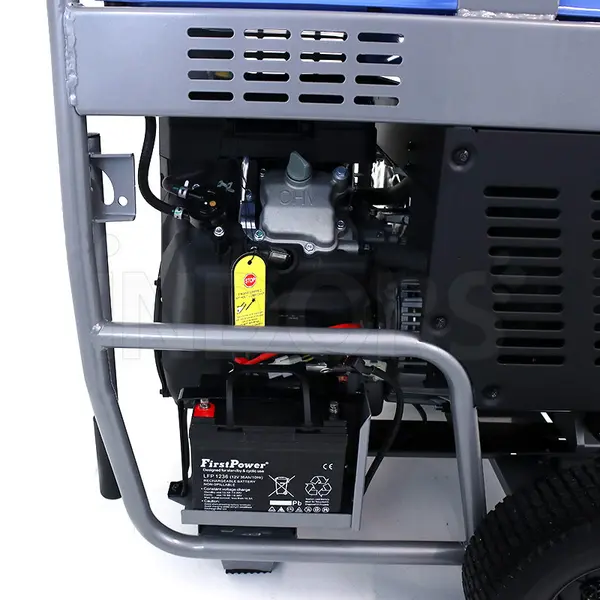

Electric starting with 12 V battery .
Functional specifications
Emergency use generator
CGM Dual 20000 SP generator set is a wheeled generator for emergencies, designed for professional or hobby use capable of providing emergency energy at 20.7 kW.

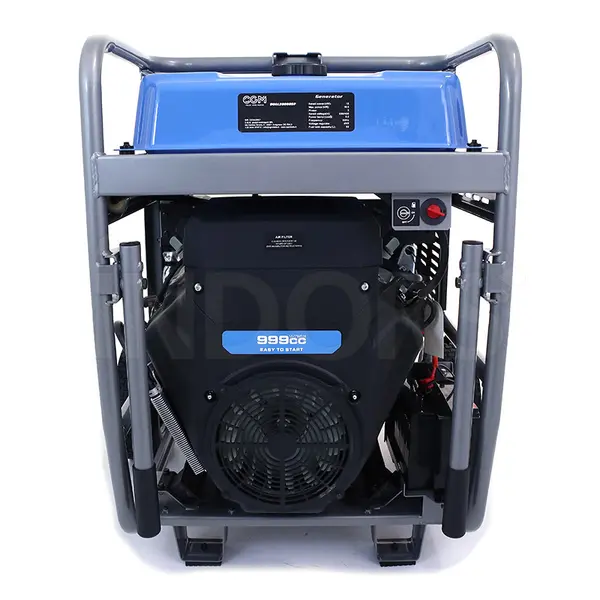

4-stroke petrol engine
2-cylinder CGM OHV100 0 Stage V 32 HP engine with nominal power of 23.8 kW and 3000 rpm . Displacement of 999 cc. Electric starting system with 12 V battery.
Self-excited alternator with brushes
CGM Dual 20000 SP mounts a self-excited alternator with brushes, AVR voltage regulator to supply stable current, ideal for connecting smartphones and electronic devices.

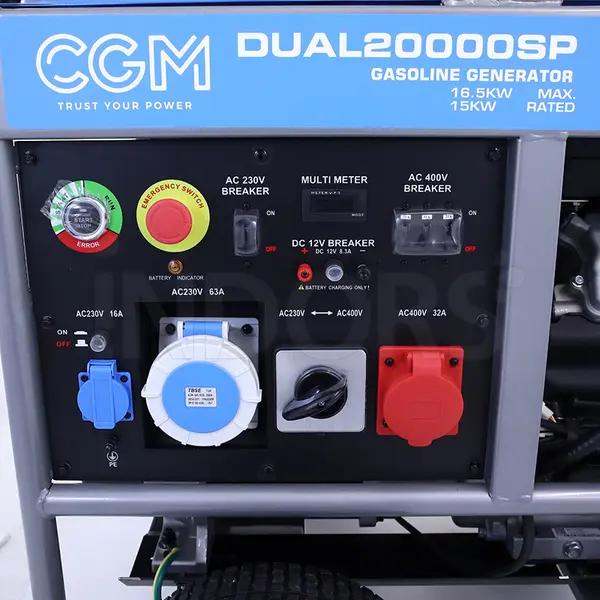

Manual Electrical Panel
CGM Dual 20000 SP is equipped with a manual electrical panel with 1 63A 3P 230V Schuko socket , 1 32A 5P 400V socket and 1 12 VDC socket . CEE sockets with thermal protection and multimeter; This generator also has an hour meter.
Petrol powered
CGM Dual 20000 SP is powered by petrol with consumption of 9.8 Lt/h at 75%. The tank can hold up to 65 liters of fuel with an estimated autonomy of 6.6 hours.
Electrical connection
This Professional Generator has both single-phase 230 V and Three-phase 400 V (50 Hz) voltage with Voltage Selector , the type of electrical system is 3F+N / 1F+N with power factor 0.8 ϕ. Rated amperage 77 A (Single Phase) and 32.3 A (Three Phase).
Main features
- Voltage selector 230 / 400 V
- Electric starting with 12 V battery
- 32 HP 999 cc engine
- With AVR
- Self-excited alternator with brushes
- Easy to move
- Ideal for emergency use
- 65 L petrol tank
Standard equipment
Technical data
| Motor | 4 Stroke - CGM OHV1000 model |
| Single Phase Maximum Power | 20.7 kVA - 16.5 kW cos φ 0.8 |
| Three-phase maximum power | 20.7 kVA - 16.5 kW cos φ 0.8 |
| Fuel | Petrol - Stage V |
| Engine RPM | 3000rpm |
| Petrol consumption | 9.8 L/h at 75% |
| Displacement | 999 cc |
| Horses | 32 HP |
| Engine Power | 23.8 kW |
| Reservoir | 65 L |
| Goodwill | Electric - tear-off |
| Drums | 12V |
| Autonomy | 6.6 hours |
| Voltage Output | 230V 50Hz 77A / 400V 50Hz 32.2A |
| Alternator | Self-excised with brushes |
| AVR | YES |
| Automatic Emergency Panel | No |
| He took | 1 x Schuko 63 A 3P 230 V - 1 x CEE 32 A 5P 400 V - 12 VDC |
| Voltage accuracy | +/- 1% |
| Dimension | 97 x 68 x 95.5cm |
| Weight | 255 kg |
Technical data
| Motor | 4 Stroke - CGM OHV1000 model |
| Single Phase Maximum Power | 20.7 kVA - 16.5 kW cos φ 0.8 |
| Three-phase maximum power | 20.7 kVA - 16.5 kW cos φ 0.8 |
| Fuel | Petrol - Stage V |
| Engine RPM | 3000rpm |
| Petrol consumption | 9.8 L/h at 75% |
| Displacement | 999 cc |
| Horses | 32 HP |
| Engine Power | 23.8 kW |
| Reservoir | 65 L |
| Goodwill | Electric - tear-off |
| Drums | 12V |
| Autonomy | 6.6 hours |
| Voltage Output | 230V 50Hz 77A / 400V 50Hz 32.2A |
| Alternator | Self-excised with brushes |
| AVR | YES |
| Automatic Emergency Panel | No |
| He took | 1 x Schuko 63 A 3P 230 V - 1 x CEE 32 A 5P 400 V - 12 VDC |
| Voltage accuracy | +/- 1% |
| Dimension | 97 x 68 x 95.5cm |
| Weight | 255 kg |
