CGM 9000SPE
Professional Generating Set

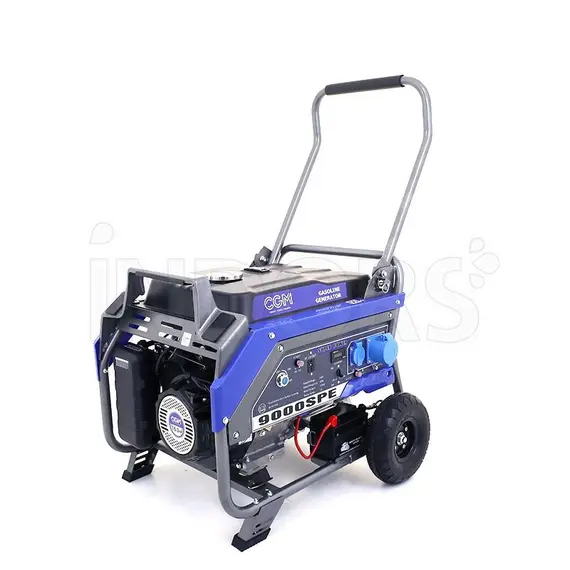

CGM 9000SPE - Professional 9 kW Emergency Generating Set

CGM 9000 SPE is a professional power generator equipped with a 16 HP CGM Stage V engine with a nominal engine power of 11.7 kW . This CGM wheeled generator set has a 230V single-phase electric starting system with 12 V battery and petrol power and is suitable for use in homes, mobile systems, campsites or for hobbies.

This CGM generator has a continuous power of 8.2 kVA - 6.6 kW cos φ 0.8.

CGM 9000 SPE is capable of providing emergency energy for 9 kVA - 7.2 kW cos φ 0.8 .
Equipped with AVR and part of the Super Power series with 3000 RPM engine, it is light and compact with a high autonomy tank and integrated trolley designed to facilitate transport.

Suitable for Emergency Use for no more than 6 consecutive hours (maximum 500 hours per year).

Functional specifications

Emergency Use Generator

CGM 9000 SPE generator set is a wheeled generator for emergencies, designed for professional or hobby use, capable of providing emergency energy at 9 kW.

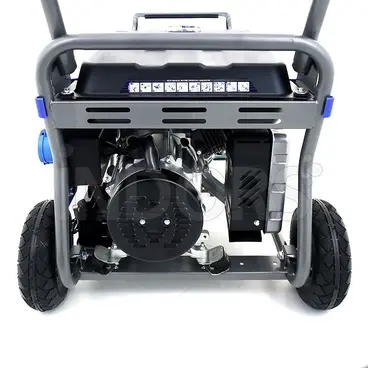

4-stroke petrol engine

The engine is a 16 HP GCM Stage V type with a nominal power of 11.7 kW and 3000 RPM. The engine capacity is 460 cc. The starting system is electric or recoil.

AVR voltage regulator

CGM 9000 SPE features an AVR voltage regulator to provide stable current, ideal for connecting smartphones and electronic devices.

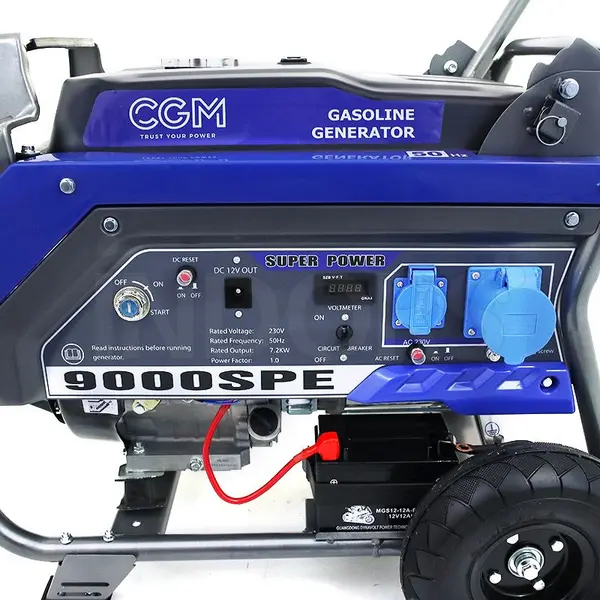

Manual Electrical Panel

CGM 9000SPE features a manual electrical panel with 1 230 V Schuko socket, 1 16A 5P 400 V socket and 1 12 VDC socket. With thermal protector and multimeter; CGM 9000 SPE also has an hour meter.

Petrol powered

CGM 9000SPE is powered by petrol with a consumption of 2.1 L/h. The tank can hold up to 25 liters of fuel with an estimated autonomy of 11.9 hours.

Electric connection

This Professional Generator has a single-phase voltage of 230 V (50 Hz), the type of electrical system is 3F+N with a power factor of 0.8 ϕ. Rated amperage 13A.

Characteristics

• 9 kW wheeled generator
• Electric start with 12 V battery
• With AVR
• Self-excited alternator with brushes

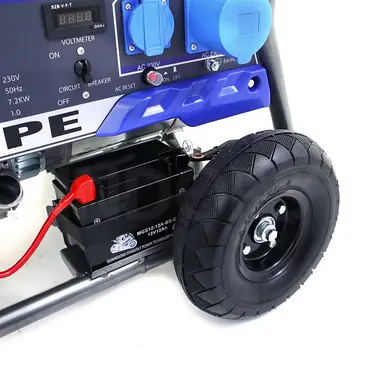

• Easy to move
• Ideal for emergency use
• 25 L petrol tank
• Max. 6 consecutive hours (500 per year)
