Speroni CS 40 Three-Phase
Monobloc Centrifugal Electric Pump
400V - 5.5÷20 HP
900 L/min - Prevalence 36÷91 m
Ø 2" 1/2 - 1" 1/2
€805.00
€659.84 tax excl.
Warranty 2 years
Shipped on Pallet

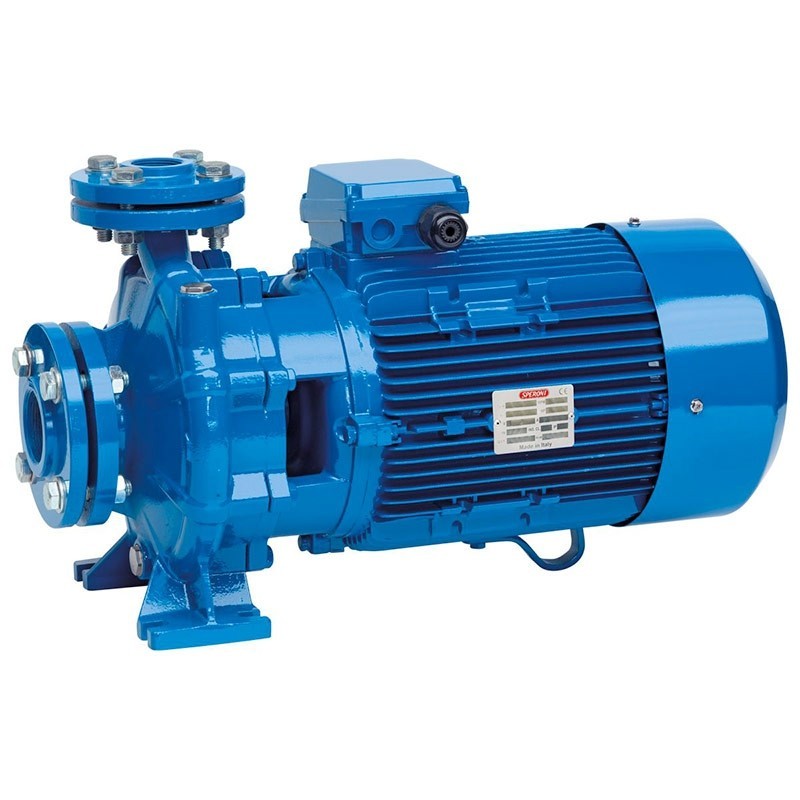

Speroni CS 40 Three-Phase - Single-Impulse Centrifugal Electric Pump
The Speroni CS 40 three-phase electric pumps are monobloc, single-impeller centrifugal electric pumps with the pump body connected directly to the motor via a bracket. The Speroni CS 40 range is distinguished by its 40 m delivery head.
These centrifugal pumps are designed for pumping clean water or liquids that are not chemically or mechanically aggressive . The Speroni CS 40 range of pumps can be used, for example, for water supplies, for sprinkler or flow irrigation, for feeding pressure tanks and pressure boosters, for heating and air conditioning or for any other application that involves the movement of clean liquids in general.
These pumps have very flexible uses and can be used in various fields such as civil, agricultural, industrial or plant engineering in general and in any position (except with the suction mouth facing upwards).
All CS 40 electric pumps are equipped with flanged (PN 10) suction and delivery ports and threaded counterflanges .
Available models selectable from the drop-down menu:
- CS 40-160 A - 4 kW - 5.5 HP - Three-phase 230/400V
- CS 40-200 B - 5.5 kW - 7.5 HP - Three-phase 230/400V
- CS 40-200 A - 7.5 kW - 10 HP - Three-phase 230/400V
- CS 40-250 B - 11 kW - 15 HP - Three-phase 400/690V
- CS 40-250 A - 15 kW - 20 HP - Three-phase 400/690V
Usage limits
- Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 90°C for other uses
- Ambient temperature up to 40°C
- Monometric suction height up to 7 m
- Continuous service
Materials
- Pump Course: Cast Iron
- Engine mount: Cast iron
- Impellers: Cast iron
- Crankshaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Engines
- Insulation Class F
- IP 55 protection
- Three-phase 230/400V-50Hz P2 ≤ 7.5 kW
- Three-phase 400/690V-50Hz P2 > 7.5 kW
- 2-pole induction electric motor (n = 2850 min -1)
Hydraulic Curve
Technical Data
| Model | CS 40-160 A | CS 40-200 B | CS 40-200 A | CS 40-250 B | CS 40-250 A |
| Phase | 230/400V | 230/400V | 230/400V | 400/690V | 400/690V |
| Nominal power | 5.5 HP | 7.5 HP | 10 HP | 15 HP | 20 HP |
| Nominal power | 4 kW | 5.5 kW | 7.5 kW | 11 kW | 15 kW |
| Absorbed power | 5.7 kW | 8.6 kW | 11.3 kW | 15.5 kW | 20 kW |
| Maximum range | 700 L/min | 900 L/min | 900 L/min | 900 L/min | 900 L/min |
| Prevalence H | 36.2 m | 46.5 m | 56 m | 74 m | 91.5 m |
| Aspiration | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm |
| Mandate | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm |
Technical Data
| Model | CS 40-160 A | CS 40-200 B | CS 40-200 A | CS 40-250 B | CS 40-250 A |
| Phase | 230/400V | 230/400V | 230/400V | 400/690V | 400/690V |
| Nominal power | 5.5 HP | 7.5 HP | 10 HP | 15 HP | 20 HP |
| Nominal power | 4 kW | 5.5 kW | 7.5 kW | 11 kW | 15 kW |
| Absorbed power | 5.7 kW | 8.6 kW | 11.3 kW | 15.5 kW | 20 kW |
| Maximum range | 700 L/min | 900 L/min | 900 L/min | 900 L/min | 900 L/min |
| Prevalence H | 36.2 m | 46.5 m | 56 m | 74 m | 91.5 m |
| Aspiration | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm | 2'' 1/2 - 65 mm |
| Mandate | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm | 1'' 1/2 - 40 mm |
