Speroni CS 40 Three-Phase IE3
Monobloc Centrifugal Electric Pump

€805.00
€659.84 tax excl.

MPN: 101801293

Select Model
Free shipping
Indicative delivery
Monday 24 November
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

Made in Italy

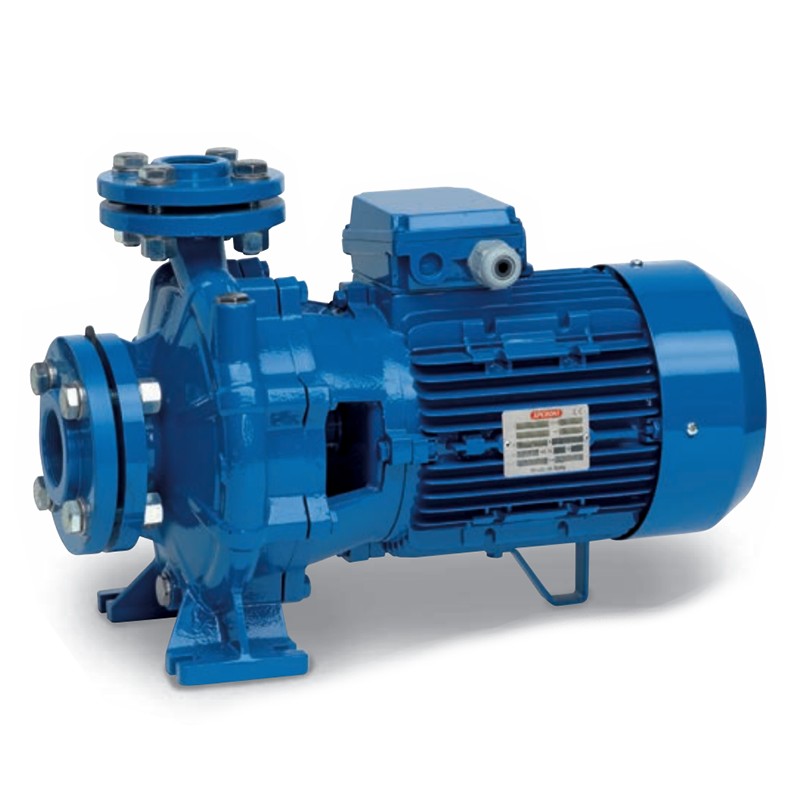

Speroni CS 40 Three-Phase with IE3 Motor - Monobloc Centrifugal Electric Pump

Speroni CS 40 is a monobloc centrifugal electric pump with the pump body connected to the motor via a support. It also has flanged suction and delivery ports (PN 10) and threaded counterflanges . This electric pump is suitable for pumping clean water and other chemically and mechanically non-aggressive liquids. It can also be installed in any position , except for those with the suction port facing upwards.

This Speroni CS 40 electric pump is equipped with a three-phase IE3 motor , a high-efficiency electric motor that complies with the IE3 energy efficiency class according to the international standard IEC 60034-30 . An IE3 motor consumes less energy than an IE2 or IE1 motor to produce the same power.

Available Models:

  • CS 40-160 B - 3 kW - 4 HP - 230/400V IE3
  • CS 40-160 A - 4 kW - 5.5 HP - 230/400V IE3
  • CS 40-200 B - 5.5 kW - 7.5 HP - 230/400V IE3
  • CS 40-200 A - 7.5 kW - 10 HP - 230/400V IE3
  • CS 40-250 B - 11 kW - 15 HP - 400/690V IE3
  • CS 40-250 A - 15 kW - 20 HP - 400/690V IE3

Speroni CSM 40 - Monobloc Centrifugal Electric Pump

Suitable for the most varied needs in the civil , agricultural , industrial or general plant engineering fields, water supplies , sprinkler or flow irrigation, autoclave feeds and pressure boosters , heating and air conditioning, any other use that involves the transfer of clean liquids in general.

Speroni CSM 40 - Monobloc Centrifugal Electric Pump

Speroni CS 40 can vacuum liquids up to 35°C (domestic use according to EN 60335-2-41 ) from a height of up to 7 metres , and up to 90°C for other uses. It also operates at a maximum ambient temperature of 40°C in continuous operation. CS 40 is equipped with a 2-pole induction electric motor (n = 2850 min-1), insulation class F and IP 55 protection.

Speroni CS 40 Cartesian graph - Three-phase monobloc centrifugal electric pump

Materials

  • Pump body: Cast iron
  • Engine mount: Cast iron
  • Impeller: Cast iron
  • Crankshaft: AISI 304 stainless steel
  • Mechanical seals: Ceramic/Graphite/NBR

Speroni CSM 40 measurements - Monobloc Centrifugal Electric Pump

Speroni CSM 40 table - Monobloc Centrifugal Electric Pump

Speroni CSM 40 measurement - Monobloc centrifugal electric pump

Characteristics

  • Monoblock centrifugal electric pump
  • Flanged suction and delivery ports
  • Pumping clean water
  • Water supplies , sprinkler or flow irrigation
  • Autoclave
  • Domestic and industrial use
  • Can be installed in any position
  • Made in Italy
  • Vacuums up to 7 m
  • Insulation F, IP 55

Technical Data

Model CS 40-160 B CS 40-160 A CS 40-200 B CS 40-200 A CS 40-250 B CS 40-250 A
Power Supply 200/400V 200/400V 200/400V 200/400V 400/690V 400/690V
Horses 4 HP 5.5 HP 7.5 HP 10 HP 15 HP 20 HP
Rated power 4.8 kW 5.7 kW 8.6 kW 11.3 kW 15.5 kW 15 kW
Flow rate 150 ÷ 700 L/min 150 ÷ 800 L/min 150 ÷ 800 L/min 150 ÷ 900 L/min 150 ÷ 900 L/min 150 ÷ 900 L/min
Min/max prevalence 21 ÷ 32.7 m 22 ÷ 36.2 m 31.5 ÷ 46.5 m 40.5 ÷ 56 m 54 ÷ 74 m 73 ÷ 91.5 m
Suction Diameter 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm
Delivery Diameter 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm
Insulation class F F F F F F
Pump Body Material Cast iron Cast iron Cast iron Cast iron Cast iron Cast iron
Max. Ambient Temp. 40°C 40°C 40°C 40°C 40°C 40°C
Max Temp. Liquid Domestic Use 35°C 35°C 35°C 35°C 35°C 35°C
Max Liquid Temp. Other Uses 90°C 90°C 90°C 90°C 90°C 90°C
Protection level IP 55 IP 55 IP 55 IP 55 IP 55 IP 55
Dimensions 24 x 32.2 x 55 cm 24 x 32.2 x 55 cm 28.1 x 37 x 64 cm 28.1 x 37 x 64 cm 33.5 x 43.5 x 74.5 cm 33.5 x 43.5 x 74.5 cm
Weight 57.9 kg 60.7 kg 75.8 kg 79.6 kg 130.1 kg 140 kg

Technical Data

Model CS 40-160 B CS 40-160 A CS 40-200 B CS 40-200 A CS 40-250 B CS 40-250 A
Power Supply 200/400V 200/400V 200/400V 200/400V 400/690V 400/690V
Horses 4 HP 5.5 HP 7.5 HP 10 HP 15 HP 20 HP
Rated power 4.8 kW 5.7 kW 8.6 kW 11.3 kW 15.5 kW 15 kW
Flow rate 150 ÷ 700 L/min 150 ÷ 800 L/min 150 ÷ 800 L/min 150 ÷ 900 L/min 150 ÷ 900 L/min 150 ÷ 900 L/min
Min/max prevalence 21 ÷ 32.7 m 22 ÷ 36.2 m 31.5 ÷ 46.5 m 40.5 ÷ 56 m 54 ÷ 74 m 73 ÷ 91.5 m
Suction Diameter 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm
Delivery Diameter 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm 1'' 1/2 - 40 mm
Insulation class F F F F F F
Pump Body Material Cast iron Cast iron Cast iron Cast iron Cast iron Cast iron
Max. Ambient Temp. 40°C 40°C 40°C 40°C 40°C 40°C
Max Temp. Liquid Domestic Use 35°C 35°C 35°C 35°C 35°C 35°C
Max Liquid Temp. Other Uses 90°C 90°C 90°C 90°C 90°C 90°C
Protection level IP 55 IP 55 IP 55 IP 55 IP 55 IP 55
Dimensions 24 x 32.2 x 55 cm 24 x 32.2 x 55 cm 28.1 x 37 x 64 cm 28.1 x 37 x 64 cm 33.5 x 43.5 x 74.5 cm 33.5 x 43.5 x 74.5 cm
Weight 57.9 kg 60.7 kg 75.8 kg 79.6 kg 130.1 kg 140 kg
