Speroni 2C 25/180 A
Double Impeller Centrifugal Electric Pump

Speroni 2C 25/180 A - Double Impeller Centrifugal Electric Pump

The Speroni 2CM 25 range features a series of Double Impeller Centrifugal Electric Pumps designed for lifting clean water or other liquids moderately loaded with impurities but not aggressive towards the materials of which the pump is made.

The Speroni 2C 25/180 A electric pump is characterized by the use of two opposing impellers which allow much higher heads than single impeller models.
The 2CM electric pumps are suitable for civil and industrial systems, for water distribution by autoclave and for sprinkler irrigation both in agriculture and in private gardens.

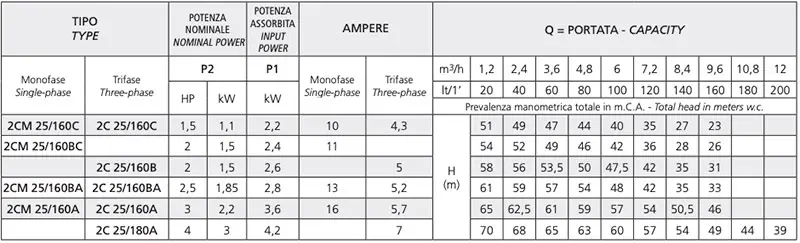

Download the Technical Sheet

Limits of use

• Liquid temperature limit up to 35 °C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 90°C for other uses
• Ambient temperature up to 40 °C
• Manometric suction height up to 7 m
• Continuous service

Materials

• Pump course: Cast iron
• Engine mount: Cast iron
• Impellers: Brass
• Motor shaft: AISI 304 stainless steel
• Mechanical seals: Ceramic / Graphite / NBR

Engines

• Class F insulation
• IP55 protection
• Single-phase 230V-50Hz ≤ 7.5 kW
• Three-phase 230/400V-50Hz > 7.5 kW
• 2-pole induction electric motor (n=2850 min-1)
• Minimum efficiency index (BEP) MEI ≥ 0.4

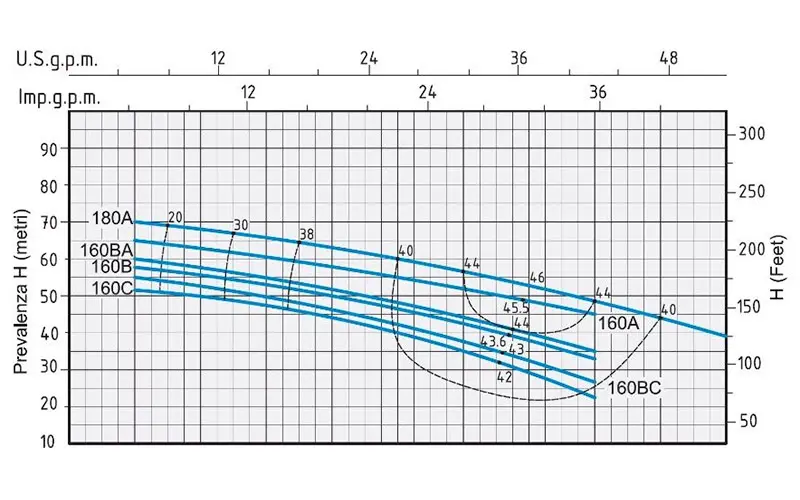

Hydraulic curve

Model details available

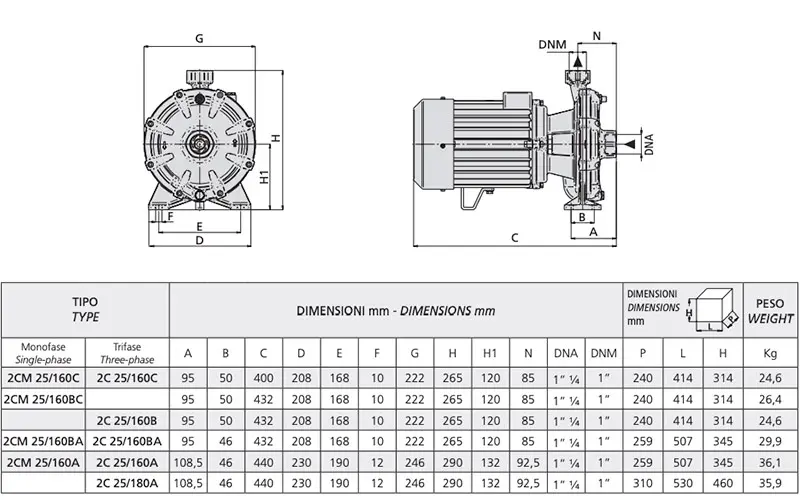

Product dimensions
