Biemmedue OKLIMA SV 72
Indirect Combustion Heater

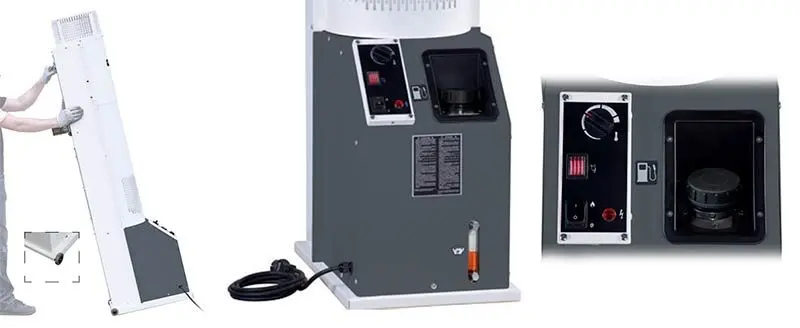

Oklima SV 72 - Plug & Play Indirect Combustion Hot Air Generator - Biemmedue

Oklima SV 72 is an excellent hot air generator , designed with care and attention to ensure high level performance , the innovative indirect combustion system offers a reliable solution for heating rooms with efficiency and comfort .

MADE IN ITALY

One of the strong points of Oklima SV 72 is its structure made with top quality materials , Made in Italy , thus ensuring superior resistance and durability , guaranteeing optimal functioning over time.

This robustness translates into a long-term solution for space heating, minimising the need for maintenance and offering excellent operational safety .

VERSATILE HEATER

The versatility of Oklima SV 72 marries perfectly with its ease of use . Being a Plug & Play system , its installation is quick and simple , just connect it to the energy source and that's it:
the generator is ready to spread heat efficiently and silently .

This practicality makes Oklima SV 72 the ideal choice for both industrial and residential environments, adapting to different heating needs.

RESPECT FOR THE ENVIRONMENT

In addition to efficiency and practicality, Oklima SV 72 is designed to respect the environment . Thanks to its indirect combustion technology, the generator minimizes harmful emissions , ensuring a reduced environmental impact.

This attention to sustainability makes Oklima SV 72 an ally both for those seeking eco-sustainable solutions and for those wishing to contain energy costs .

Oklima heaters are produced by the renowned company Biemmedue, Made in Italy, guaranteeing quality and reliability for comfortable and efficient environments.

TECHNICAL SPECIFICATIONS

Oklima SV 72 is a Plug & Play indirect combustion hot air generator with a nominal heat output of 18.2 kW and a delivered heat output of 16.9 kW .

Thanks to its high efficiency of 93% , it offers remarkable efficiency in heating rooms.

The air flow rate of 1750 m³/h allows for rapid and efficient distribution of warm air, ensuring uniform and comfortable heating throughout the space.

The hot air generator is designed for a temperature difference of 60°C to 20°C , which means that the outgoing air will be 60°C warmer than the incoming air, ensuring an adequate room temperature .

With a fuel consumption of only 1.44 kg/h and a tank capacity of 35 L , Oklima SV 72 offers considerable operating autonomy , reducing interruptions for refueling to a minimum.

The generator has a power of 400 W and is powered by 230V , demonstrating efficient and sustainable energy consumption.

Finally, the 120 mm chimney diameter ensures adequate exhaust of combustion gases, ensuring safe and regulatory-compliant operation.

FUNCTIONAL SPECIFICATIONS

The Oklima SV 72 hot air generator is an ideal choice for closed environments such as restaurants , churches , conference rooms and other similar spaces; its distinctive feature is extremely silent operation , ensuring acoustic comfort for users.

This hot air generator is powered by an integrated diesel burner , making it an energy efficient solution suitable for a variety of applications.

The electronic flame control contributes to precise and safe combustion , guaranteeing maximum reliability in use .

INTEGRATED THERMOSTAT

The presence of an integrated room thermostat with a regulation range of +5°C to +30°C allows you to maintain a constant and pleasant temperature inside the room.
Additionally, you can connect the generator to a remote room thermostat to control the temperature from a different location.

The radial fan with backward curved blades distributes hot air evenly , ensuring uniform heating of the room .

The hot air generator is supplied with a 1.5 metre long power cable with plug , making it easy to connect to the mains.

The presence of a diesel filter ensures clean and trouble-free operation of the Oklima SV 72 hot air generator.

The aerodynamic stainless steel combustion chamber ensures efficient and safe combustion, while the high-performance heat exchanger maximizes the generator's efficiency, allowing for high performance.

The diesel tank with a capacity of 35 litres is equipped with a fuel reserve level indicator, allowing you to easily monitor the fuel level .

The 0.6 metre long stainless steel wall-pass flue pipe ensures adequate evacuation of combustion gases in a safe manner .

The Oklima SV 72 generator offers pre-heating and post-ventilation functions for cooling the combustion chamber, optimising the efficiency and life of the system .

A winter-summer switch allows the generator to also be used as a fan in summer, offering a versatile solution for all seasons .

Oklima SV 72 can be positioned outside for air recirculation, ensuring an even more comfortable environment .

Intake and outlet grilles are integrated to ensure optimal airflow and uniform distribution of hot air .

Finally, the possibility of movement on retractable wheels and easy maintenance make Oklima SV 72 a practical and convenient hot air generator for a wide range of applications .

FIELDS OF APPLICATION

• Closed spaces
• Restaurants
• Churches
• Conference rooms etc...

CHARACTERISTICS

• Nominal Thermal Power 18.2 kW
• Thermal Power Output 16.9 kW
• Yield 93%
• Air flow 1750 m³/h
• Temperature jump at 20°C 60°C
• Consumption 1.44 Kg/h
• Tank capacity 35 L
• Electric power 400 W
• Power supply 230V
• Chimney diameter 120 mm
• Integrated diesel burner
• Electronic flame control
• Integrated room thermostat ( +5°/+30° C ) and connectable with remote room thermostat
• Radial fan with backward curved blades
• 1.5m power cable with plug
• Diesel filter
• Aerodynamic stainless steel combustion chamber
• High efficiency heat exchanger
• 35 L diesel tank with fuel reserve level indicator
• Stainless steel flue pipe through wall l = 0.6 m
• Pre-heating and post-cooling ventilation of the combustion chamber
• Winter-summer switch for use as a fan
• Possibility of air recirculation with generator positioned outside
• Intake and delivery grilles
• Possibility of movement on retractable wheels
• Easy maintenance
