MASTER BV 170
Industrial Hot Air Generator

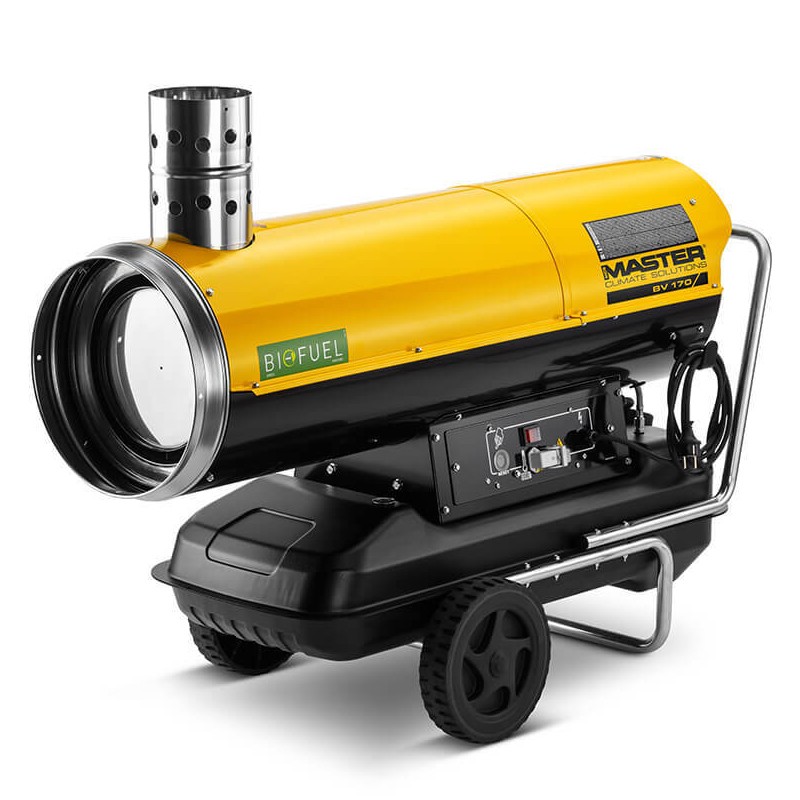

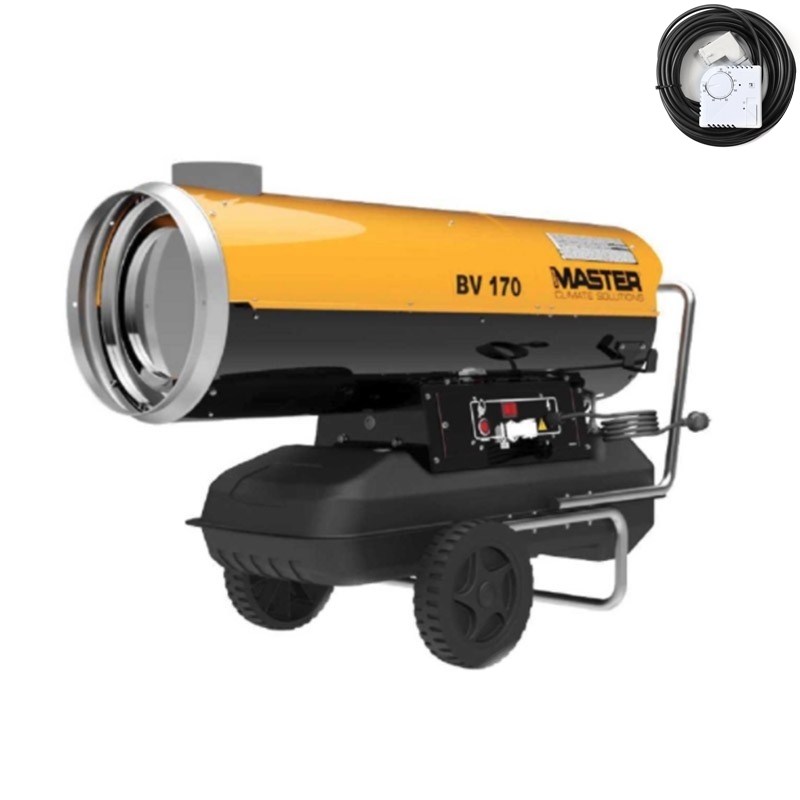

Master BV 170 - Industrial Hot Air Generator

The Master BV 170 E portable heater can provide efficient localized heating in a wide range of situations. This series of indirectly fired diesel or kerosene heaters is designed to provide heat and dry air in medium-sized spaces. All models in the series are wheeled for maximum ease of transport.

The operating principle of these hot air generators is based on the use of a rotary compressor which, by conveying pressurized air to the burner nozzle, creates a vacuum that allows the fuel to be sucked from the tank.

The resulting fuel-air mixture is then vaporized and ignited in the combustion chamber, which is constantly circulated and cooled by external air pushed toward the heater's front outlet by a fan. Unlike direct-fired heaters, in this type of machine, the combustion products are vented outside through an exhaust pipe.

All hot air generators are equipped with safety devices to control the flame, prevent the risk of overheating and optimise fuel consumption mounted on a control panel that also controls the ventilation functions.

The combustion chambers are also made of a special stainless steel treated to resist high temperatures over time.
The products of combustion are essentially water vapour and carbon dioxide (CO2), with minimal emissions: the fumes can also be conveyed outside through a special exhaust pipe, allowing them to be used even in closed environments .

The units can also be installed outdoors as they comply with the requirements for the IPX4D protection class.

High technical quality Made in Italy

This Master heater is entirely made in Italy. Made in Italy is synonymous with precision and high technical quality.

Characteristics

• Flame detection
• Electronic flame control
• Stainless steel combustion chamber
• Overtemperature and post-ventilation thermostats
• Possibility of operation with room thermostat (optional)
• Stainless steel combustion chamber
• High efficiency heat exchanger
• External diesel pump
• External structure in painted sheet steel
• Exterior wall cold to the touch
• High air flow
• Possibility of channeling (via a special kit)
• Double filter: on the tank and on the diesel pump
• Thermal protection on the engine
• Easy to carry
• Easy to maintain
• Large rubber wheels
• Shockproof ABS diesel tank with level indicator
• High efficiency electric motor

The product color may vary based on availability. The technical and functional characteristics remain the same.

Fields of application

• External Installation with Ducting Kit
• Internal Installation with External Flue Gas Exhaust

3-year Master Warranty

To benefit from the 3-year warranty on this Master product, register on the Master website and follow the instructions provided.

Remember

In case of internal installation, it is necessary to ensure good ventilation of the room to prevent possible oxygen deficiency.
