Trotec TDS 50
Electric Heater 9 kW

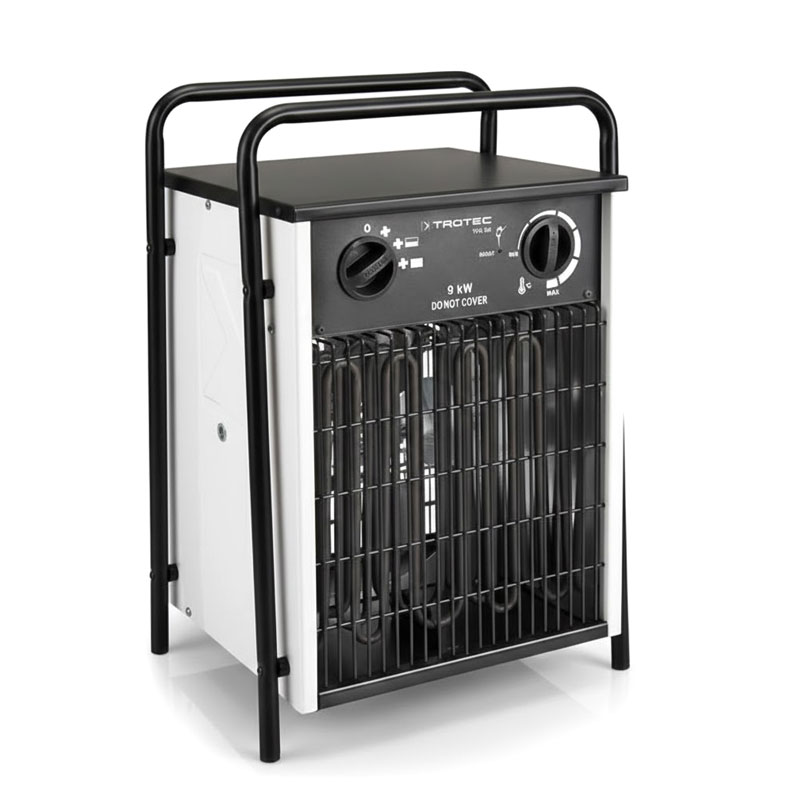

Trotec TDS 50 - 9 kW Three-Phase Electric Heater with Axial Fan

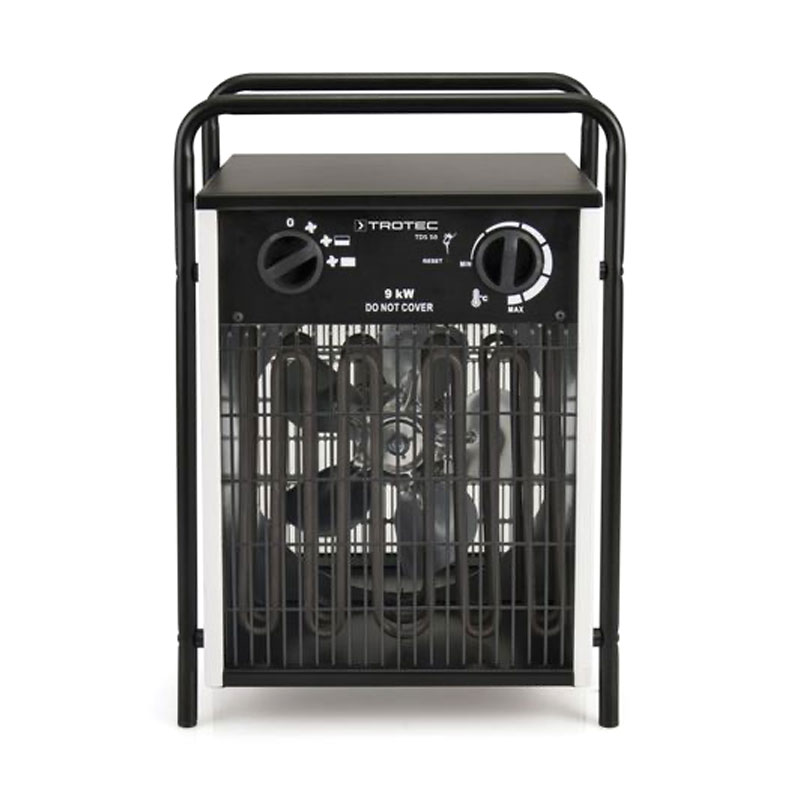

The Trotec TDS 50 electric heater (code 1410000020 ) is a three-phase heater designed for fast and efficient heating of indoor and covered outdoor spaces. Designed for intensive applications, the TDS 50 combines a high heat output of 9 kW , an air flow rate of 708 m³/h , and safe operation without oxygen consumption or combustion gases.

Thanks to the integrated thermostat, 2-stage power control, and air guide plate, the Trotec TDS 50 ensures even heat distribution. Ideal for construction sites , workshops , warehouses , catering businesses, and temporary structures. Its metal construction, advanced safety features, and the option of wall or ceiling mounting make it extremely versatile. A robust, quiet, and efficient heater , 100% Trotec (development, design, and production).

Relevant aspects:

• Auto restart function
• Post-ventilation function for component cooling
• Overheat protection
• Air guide plate to optimize heat dispersion
• Possibility of wall or ceiling mounting
• Stackable space-saving

Functional specifications

Thermal Power 9 kW

The Trotec TDS 50 is a three-phase heater designed for high performance in professional and semi-professional applications. With a maximum heat output of 9 kW and an air flow rate of 708 m³/h , it is ideal for quickly heating unheated spaces such as construction site containers, workshops, sheds, greenhouses, and industrial workspaces.

Safe heating without combustion

The Trotec TDS 50 is a three-phase hot air generator (400 V – 50 Hz) that, unlike combustion heaters, does not produce smoke or condensation . This makes it perfect for indoor use, ensuring clean, constant, and safe heat even for prolonged use.

Precise temperature control

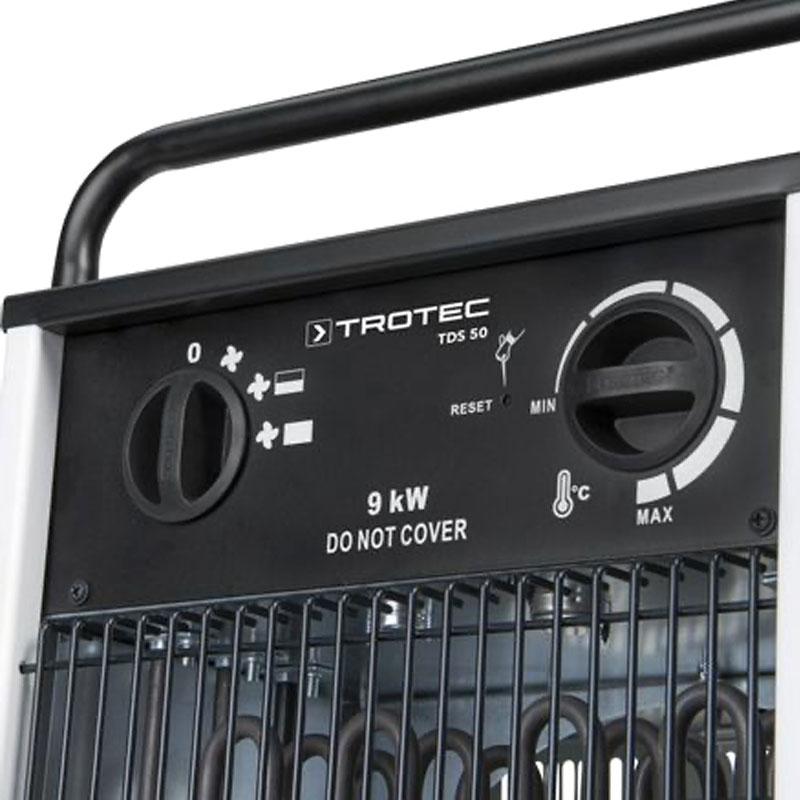

The device features a built-in thermostat and two-stage power control (4.5 kW / 9 kW) , allowing for continuous and precise temperature regulation. The standard air guide plate optimizes heat dispersion, increasing efficiency and ensuring even heating of the room.

Robust construction and advanced safety features

Made with a metal housing, the TDS 50 is designed to withstand demanding working conditions. It integrates numerous safety features such as overheat protection, a motor with thermal protection, a post-ventilation function for cooling components and an automatic restart function. The low noise level of 52 dB(A) makes it suitable even for busy environments.

Flexible installation

Thanks to the lateral threads, the heater can be installed on the wall or ceiling using optional brackets, or used on the floor. The carrying handles also allow for stable stacking , ideal for space-saving storage.

Scope of use

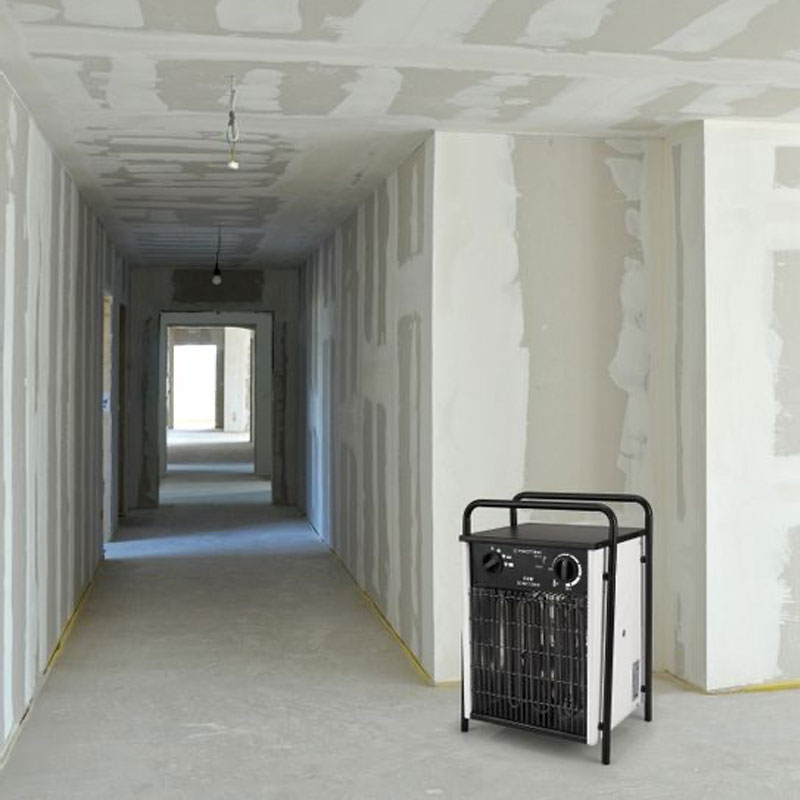

• Construction sites
• Workshops and laboratories
• Sheds and warehouses
• Temporary workspaces
• Greenhouses and Nurseries
• Catering business
• Container
• Naval storage

Characteristics

• Professional electric heater
• Power 9 kW and air flow 708 m³/h
• Heat without combustion
• Integrated adjustable thermostat
• Advanced security features
• Silent operation
• Sturdy metal structure
• Wall/Ceiling Mounting
• Ideal for professional environments
