Trotec TDE 65 V2
Electric Heater 12 kW

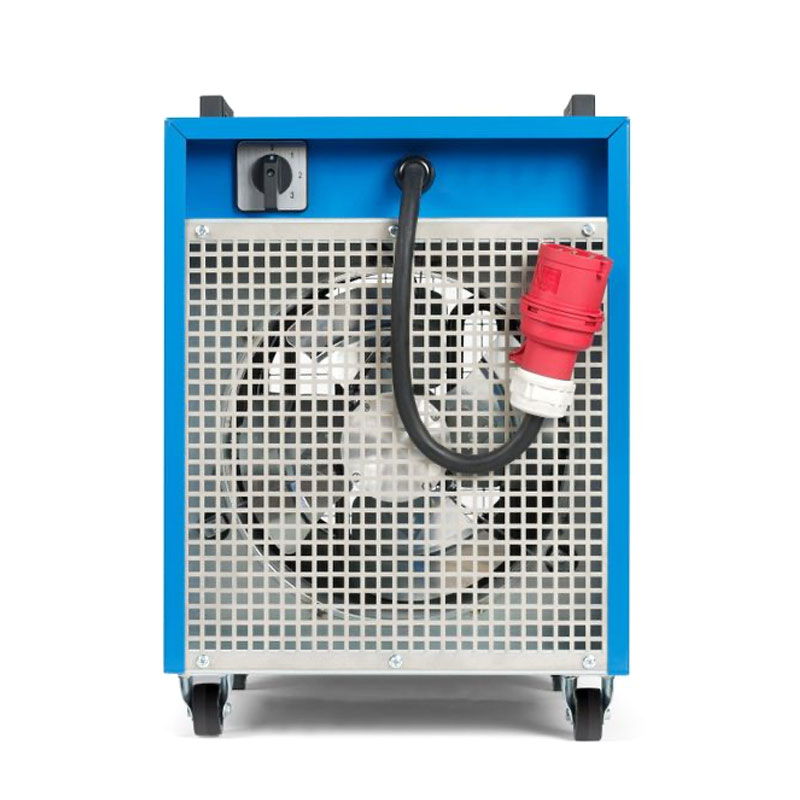

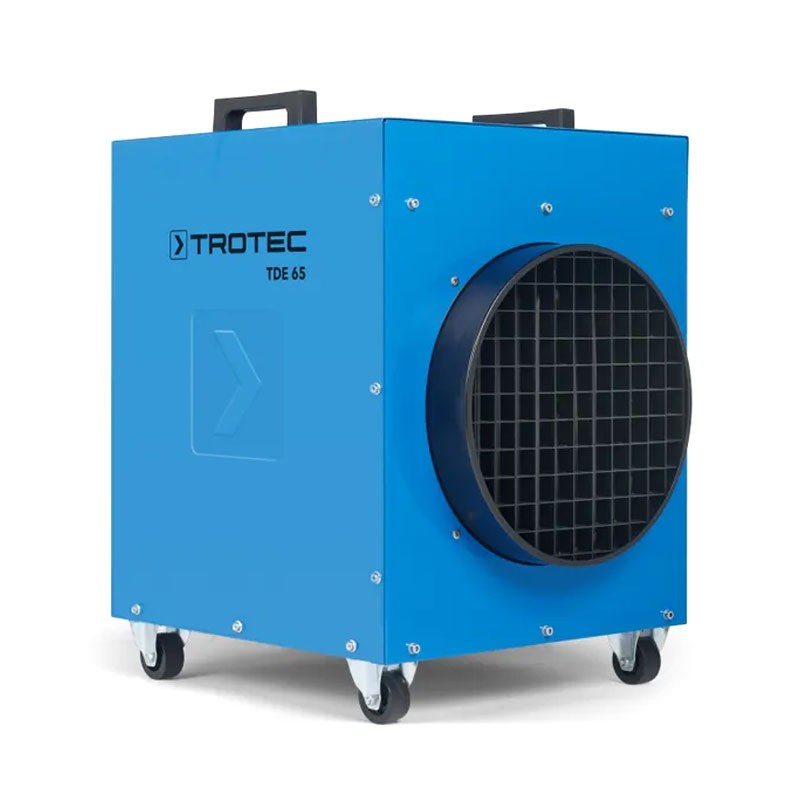

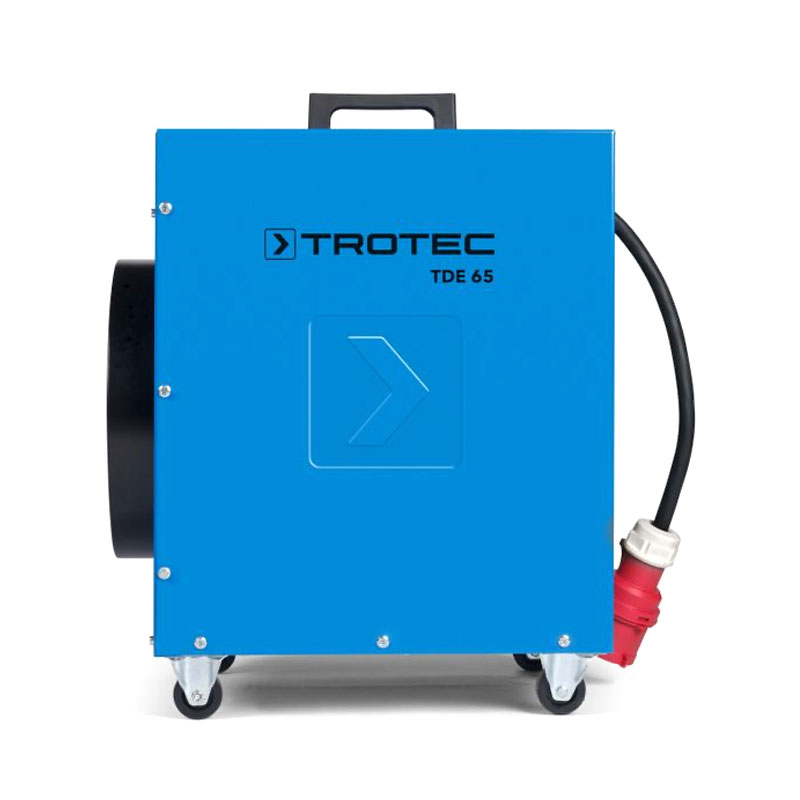

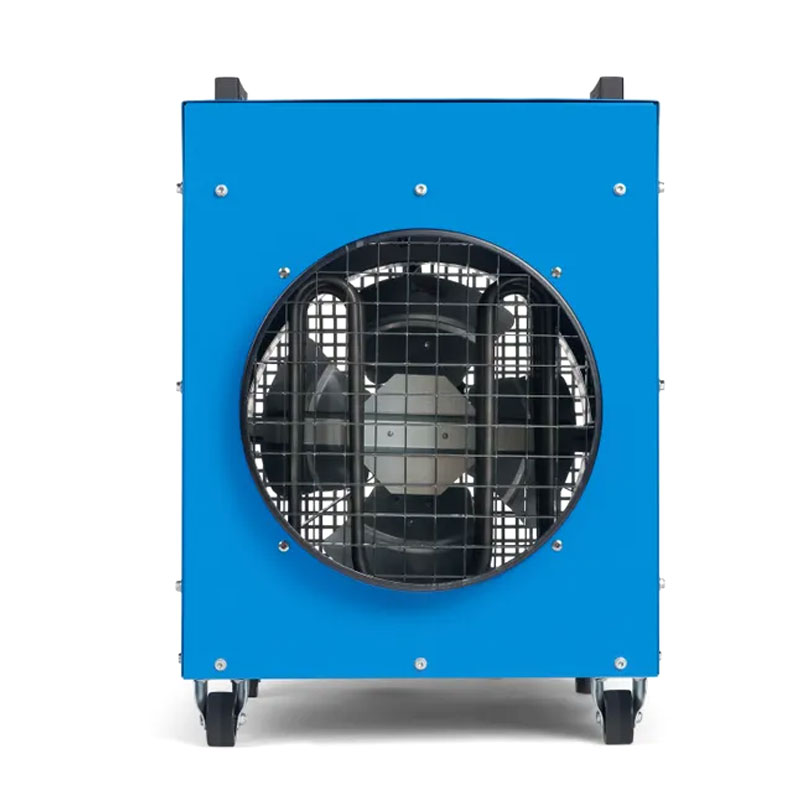

Trotec TDE 65 V2 - Electric Heater for Construction Sites and Warehouses

The Trotec TDE 65 V2 (code 1410000117) is a professional three-phase electric heater designed for reliable performance on construction sites, machine rentals, and industrial environments. With adjustable power up to 12 kW and an air volume of 1094 m³/h , the Trotec TDE 65 V2 quickly heats large spaces without consuming oxygen, making it ideal for enclosed spaces.

The robust, double-walled construction of 1.5 mm galvanized steel protects the outer casing from heat and impact, while the stainless steel and galvanized grilles optimize the flow of warm air. Thanks to its insulated handles and rubber wheels, the Trotec TDE 65 V2 is easily portable, and a flexible hose connection allows the heat to be directed to remote areas. With overheating protection and condensation-free heat, it is a safe, efficient, and versatile solution for heating and drying buildings, and supporting dehumidifiers on professional construction sites.

Functional specifications

Electric heater for continuous use

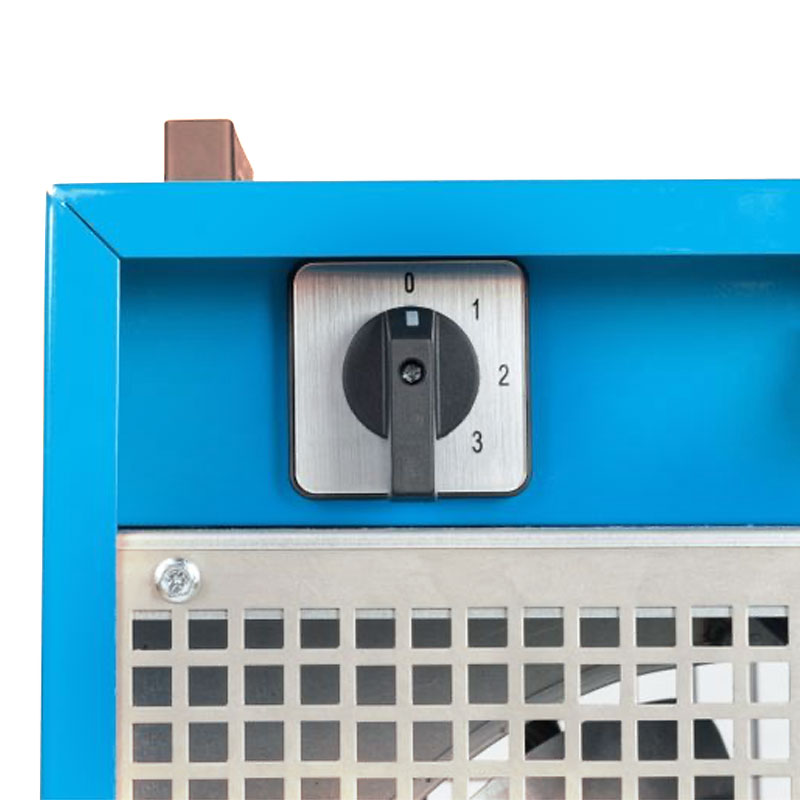

The Trotec TDE 65 V2 offers 4 power levels : 0.1 kW, 6 kW, 9 kW, and 12 kW, allowing you to quickly heat large rooms. Thanks to its stainless steel heating element and axial fan, it generates condensation-free warm air with a temperature rise of up to 32°C without consuming oxygen, ideal for closed spaces and for accelerating the drying process of buildings or supporting dehumidifiers on construction sites.

Double wall with 1.5 mm zinc-plated steel

Designed for rental and mobile construction sites, the Trotec TDE 65 V2 electric mobile heater features a durable, double-walled 1.5 mm zinc-plated steel housing, a stainless steel inlet grille, and a galvanized outlet grille. The use of durable materials protects the device from impacts and wear, ensuring reliability and a long life even in harsh environments.

Mobility and operational flexibility

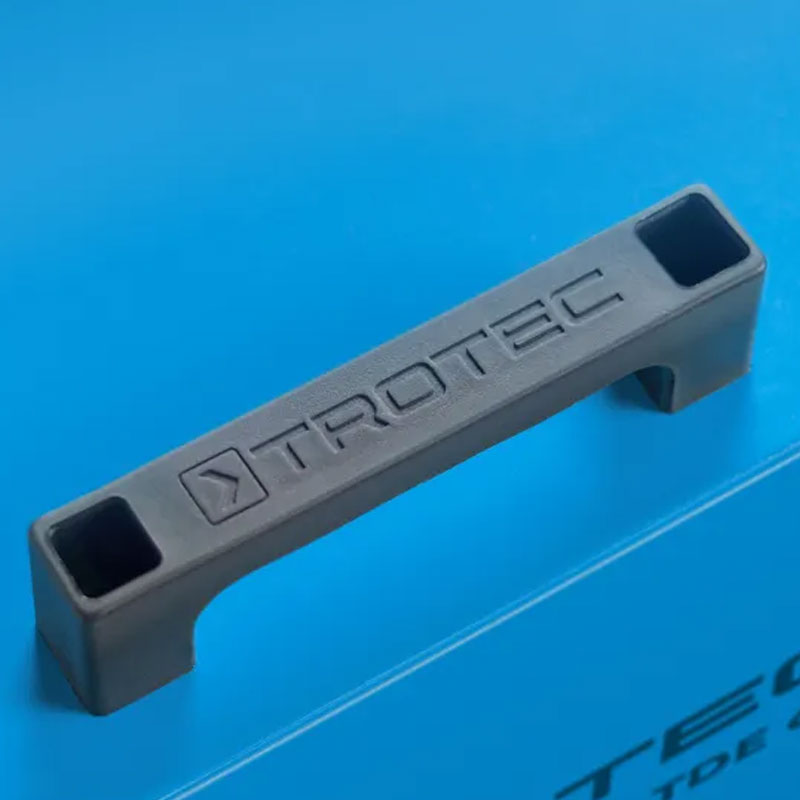

The heater is equipped with 4 rubber wheels and insulated handles , allowing for easy transportation from one job site to another. A flexible hose connection allows you to direct hot air to remote areas, increasing flexibility and operational efficiency in various professional applications.

Overheat protection and safe use

The Trotec TDE 65 V2 features overheat protection up to 80°C , ensuring safe operation even over extended periods. It operates on a three-phase 400V, 50Hz power supply and draws a nominal current of 18A . The double-walled design keeps the outer casing cool, reducing the risk of burns and increasing operational safety.

Scope of use

• Construction sites, buildings under construction
• Industrial warehouses and workshops
• Support for dehumidifiers and rapid drying

Characteristics

• Electric heater with adjustable power up to 12 kW
• Air flow 1094 m³/h
• Three-phase electric heating
• Resistant stainless steel entrance grille
• Galvanized air outlet grille
• Easy transport with wheels
• 2 handles made of non-conductive material
• Overheat protection 80°C
• Hot Air Without Condensation
