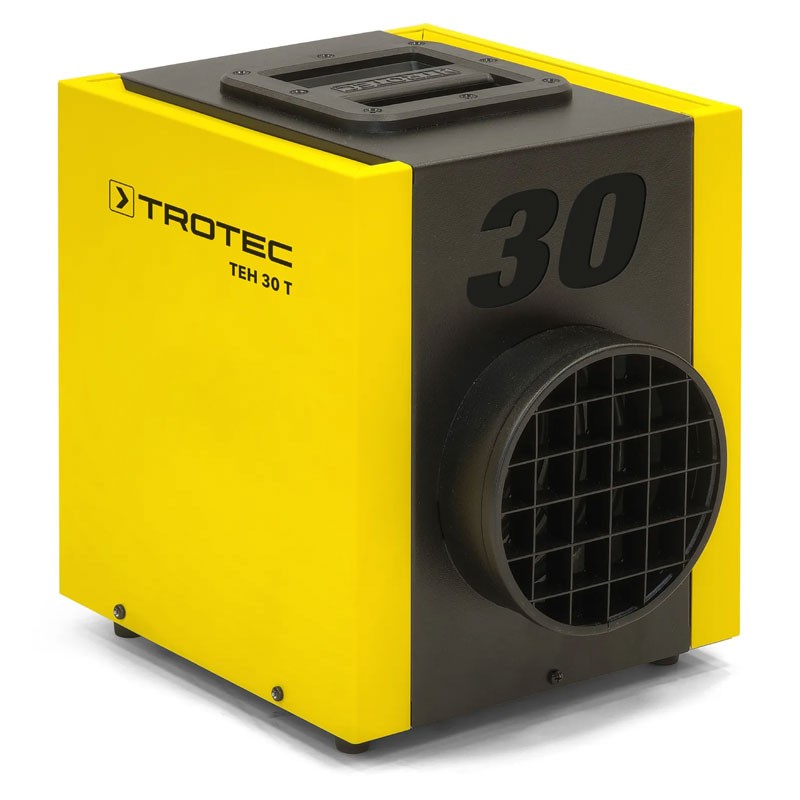

Trotec TEH 30 T
Compact Electric Heater 3.3 kW

Trotec TEH 30 T - Compact Single-Phase Electric Heater 230V

The Trotec TEH 30 T electric heater is a compact hot air generator designed for intensive use in industry, construction, and equipment rental. Thanks to its robust, stackable design , it is an extremely versatile solution for generating heat without consuming oxygen, ideal for closed, poorly ventilated spaces or for accelerating the drying process of building materials.

The 3.3 kW heating output, combined with a built-in adjustable thermostat and permanent ventilation, ensures stable, uniform, and condensation-free heat delivery. This model, compatible with air transport ducts with a 155 mm connection diameter, allows the hot air flow to be directed where needed.

Technical specifications

The Trotec TEH 30 T is a compact electric heater with a single-phase 230V power supply , offering a practical solution that can be easily connected to standard electrical networks. Its fixed heat output of 3.3 kW allows for rapid and effective heating even in unventilated spaces . Equipped with an integrated thermostat, it automatically manages the activation of the heating elements, thus maintaining the ideal temperature while optimizing energy consumption.

This electric heater has an air flow rate of 300 m³/h , allowing for even heat distribution. Compatibility with hot air ducts further extends its range, allowing for heat to be conveyed even from a distance. The structure is designed to allow for stacking with similarly sized models, facilitating both transport and storage.

Functional specifications

Optimized airflow for maximum performance

The Trotec TEH 30 T electric heater is designed for superior efficiency: hot air is conveyed without turbulence losses, even along ducts up to 15 meters long. This means the heat output reaches the target area precisely, without dispersion and with maximum operating efficiency. The air outlet connection is equipped with a heat-insulating system and a grille that ensure a smooth and safe flow. The special integrated support ring provides stable support for the air transport pipes, increasing the overall life of the system and safety during use.

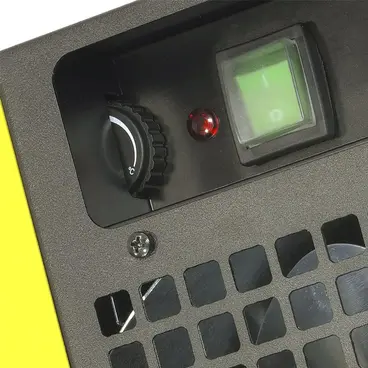

Control with adjustable thermostat

The Trotec TEH 30 T features a continuously adjustable thermostat that activates the heating elements only when needed. A red indicator light immediately indicates the operating status, ensuring constant monitoring and easy operation even under intense work conditions.

Ergonomics and easy transport

The ergonomic design with recessed Trotec ergo handles and Grip-Clip system allows for easy and safe transport. This feature is designed for those who frequently use the machine on different construction sites, reducing fatigue and increasing operational convenience.

Intelligent stacking system

Thanks to the presence of two upper grooves, the TEH 30 T can be stacked with other identical models without risk of instability. This solution optimizes space during transport and storage, making it particularly advantageous for companies handling large quantities of equipment.

Areas of use

• Industrial sector
• Building
• Rental
• Garages and Sheds
• Warehouses
• and similar

Characteristics

• Particularly solid, robust structure with resistant lacquered coating
• Optimized frame for a targeted and turbulence-free release of hot air flow
• Convenient stacking groove for even safer and more clutter-free transportation and storage
• Minimal heating of the outer casing thanks to the double-walled housing
• Extremely practical structure, minimal maintenance required
• Handles for a secure and ergonomic grip with internal grip clip for greater stability during transport
• German industrial design optimized for practicality
• Stackable on models of the same size
