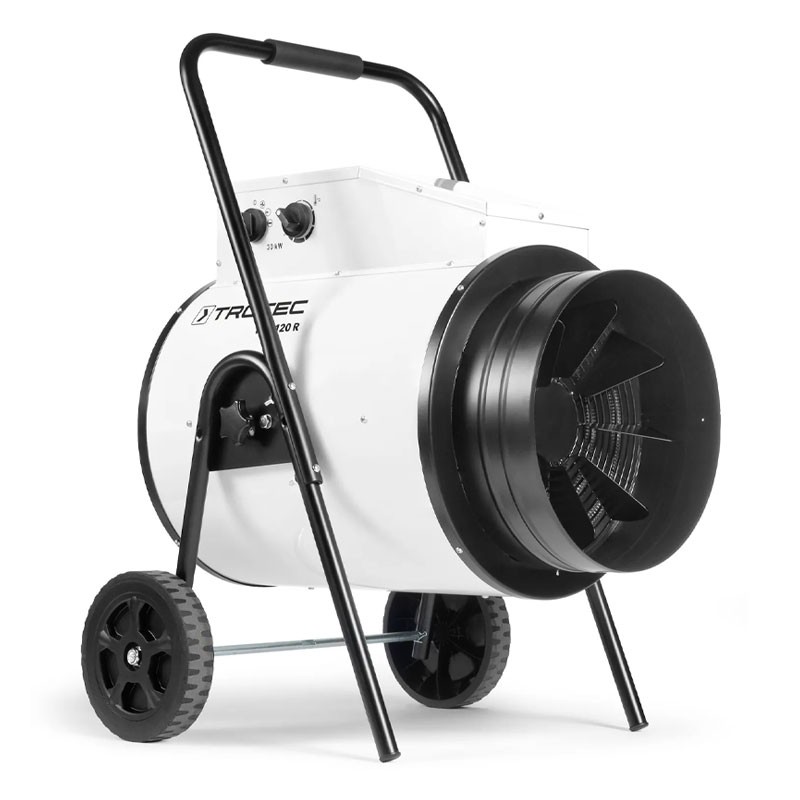

Trotec TDS 120 R
Electric Hot Air Cannon 30 kW

Trotec TDS 120 R - Electric Hot Air Cannon 400V with 3 Operating Modes

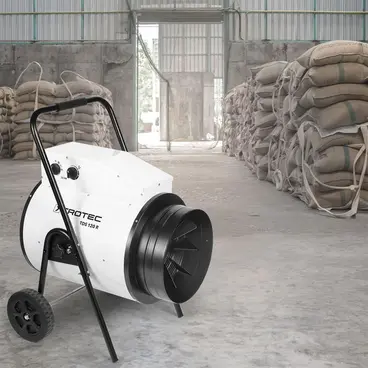

The Trotec TDS 120 R electric hot air cannon is the ideal professional solution for quickly and efficiently heating large spaces . With a heat output of up to 30 kW , this electric heater is designed for high performance in industrial settings, construction sites, warehouses and workshops, offering even and constant heat distribution.

Thanks to its sturdy structure and quality painted galvanized steel construction, the device stands out for its durability and reliability even during intensive use. The combination of stainless steel heating elements and a high-circulation fan ensures immediate and powerful hot air production, making it an excellent choice for those requiring continuous and safe heating in indoor spaces .

Technical specifications

Trotec TDS 120 R has a three-phase 400V power supply (cable not included), with regulation on three operating modes:

• Ventilation only
• Thermal Power 15 kW
• Thermal Power 30 kW

The device's high energy efficiency makes it competitive even for prolonged use , guaranteeing a low noise level of 61 dB(A) and intuitive management thanks to the integrated thermostat that allows you to regulate the temperature precisely and continuously.

This electric heater can reach a temperature increase of 19°C , with an air flow of 1900 m³/h . It operates within a temperature range of -15°C to +25°C , ensuring maximum adaptability to different professional contexts. The IP24 protection and fan motor with thermal protection guarantee safety and reliability in every use.

Functional specifications

Powerful and Continuous Heating

With a heating output of 30 kW , the Trotec TDS 120 R is the most powerful model in the TDS-R series. The dual power regulation allows you to adapt the heating to different needs, maintaining a constant and homogeneous flow of hot air, without consuming oxygen and without producing exhaust gases .

Robust Structure and Easy Transport

The solid trolley structure in galvanized and painted steel , combined with the ball-bearing wheels , makes this electric hot air cannon extremely stable and at the same time easily transportable. This simplifies its use on construction sites, warehouses and large industrial environments.

Advanced operational security

Thanks to overheating protection and a thermally protected fan motor , the Trotec TDS 75 R ensures safe operation even under intensive use . Furthermore, the post-ventilation function allows the internal components to be cooled after switching off, preventing premature wear and improving the longevity of the machine.

Independent Ventilation

In addition to the heating function, the device offers the option of using the fan mode without heat emission , useful for promoting air circulation in closed spaces. This feature makes the Trotec TDS 120 R versatile and suitable for a variety of professional needs.

Ideal for Construction and Drying

Another strength of the Trotec TDS 120 R is its effectiveness in supporting construction drying processes . Unlike directly fired gas or diesel heaters, this device does not produce water vapor or exhaust gases , making it perfect for accelerating the drying of materials on construction sites in combination with dehumidifiers.

Areas of use

• Car repair shops
• Construction sites
• Installation work
• Restaurant sector
• Warehouses and sheds
• Greenhouses
• and similar

Characteristics

• Multi-level temperature regulation with two heat settings
• Integrated thermostat for a constant flow of hot air
• Overheat protection
• Protection class: IP24
• Fan motor with thermal protection
• Heat without condensation, no oxygen consumption (suitable for heating indoor spaces)
• Easy to carry and use
• Fan mode can also be activated without heating function
