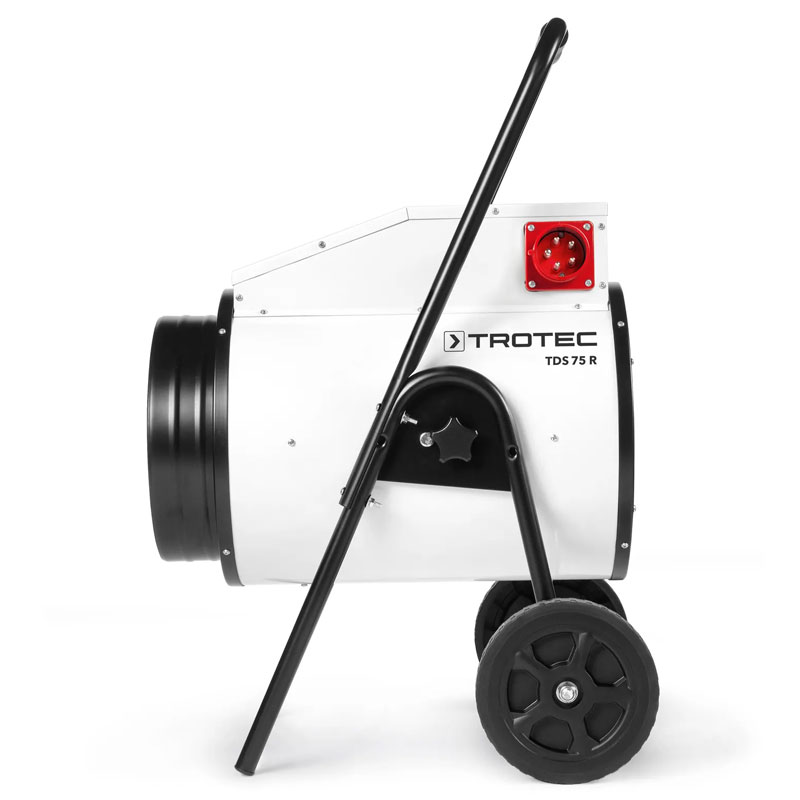

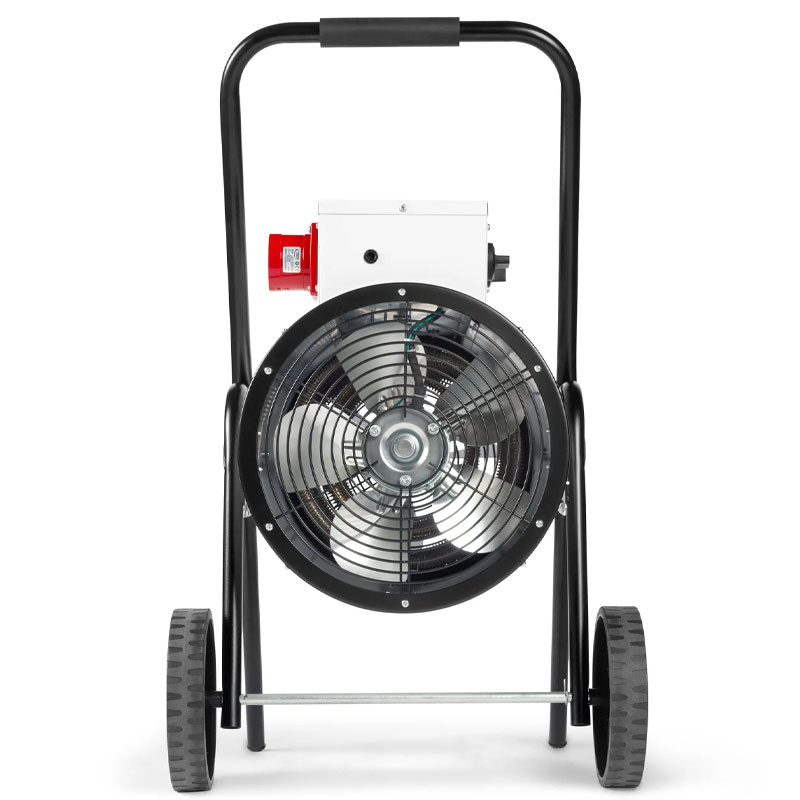

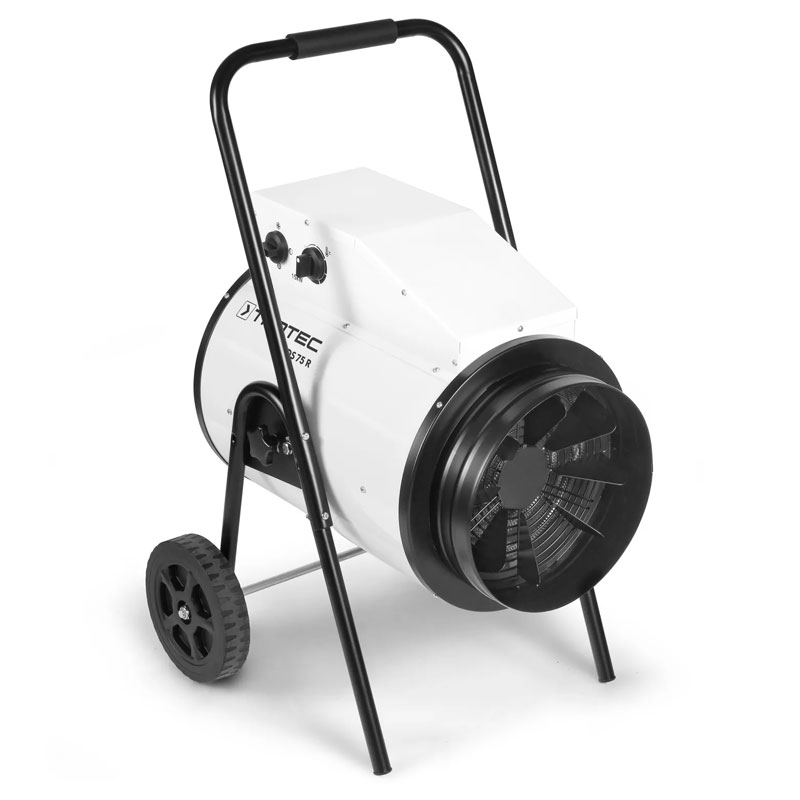

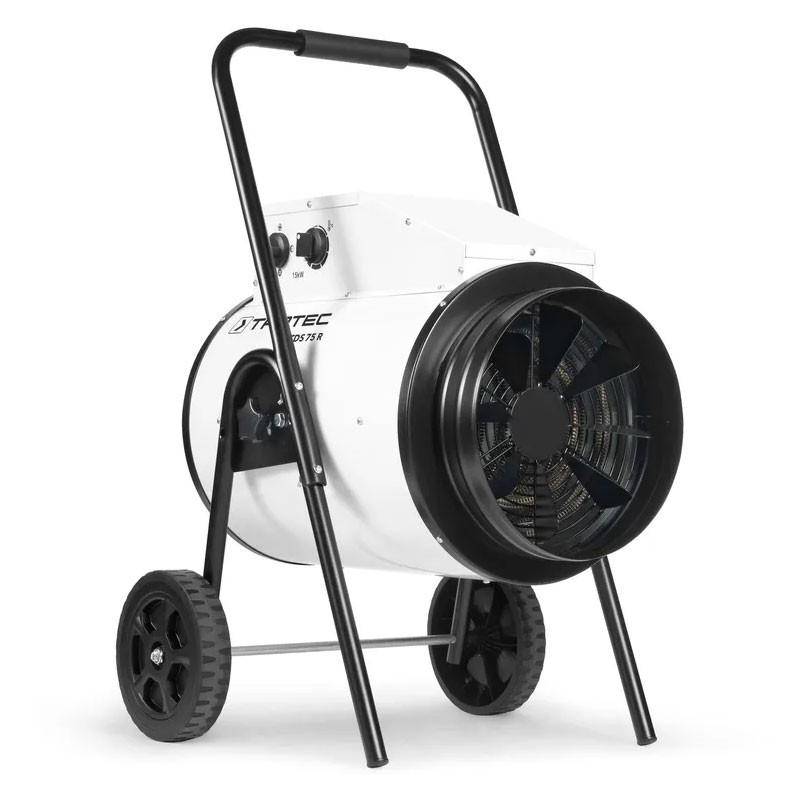

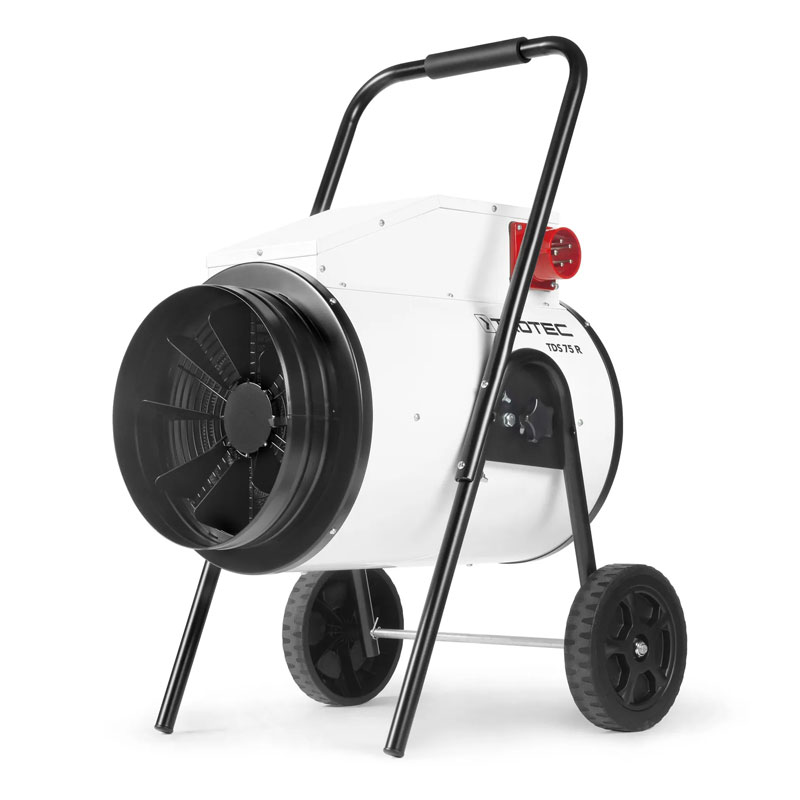

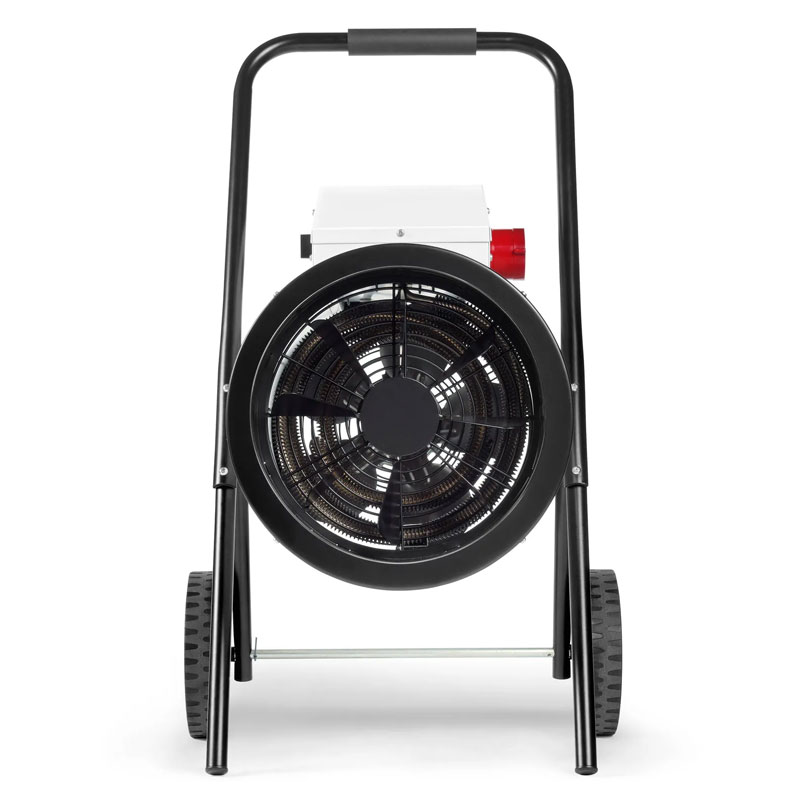

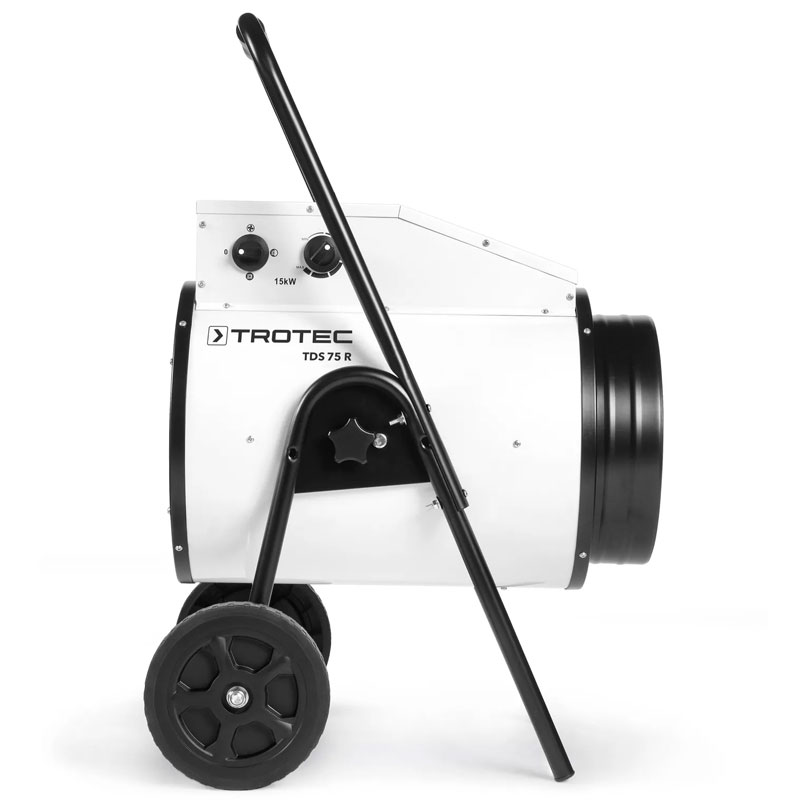

Trotec TDS 75 R
15 kW Electric Heater
with Wheels

Trotec TDS 75 R - 15 kW Electric Heater with Wheels and 4-Mode Control

The Trotec TDS 75 R Electric Heater is a professional product designed to ensure reliable heating in large workspaces. Ideal for workshops, warehouses, construction sites, greenhouses, and industrial areas, this heater combines power, safety, and practicality in a single device. Thanks to its direct heating technology with stainless steel elements and integrated thermostat , the Trotec TDS 75 R ensures a constant flow of hot air, without harmful emissions and without oxygen consumption , making it suitable even for closed or poorly ventilated spaces.

The 4-mode adjustable power output up to 15 kW and the generous air flow rate of 1100 m³/h allow for rapid heating of large areas, keeping the environment comfortable and safe. The combination of robust construction, ease of use, and advanced features make this heater a versatile and professional solution for a variety of industrial applications.

Technical specifications

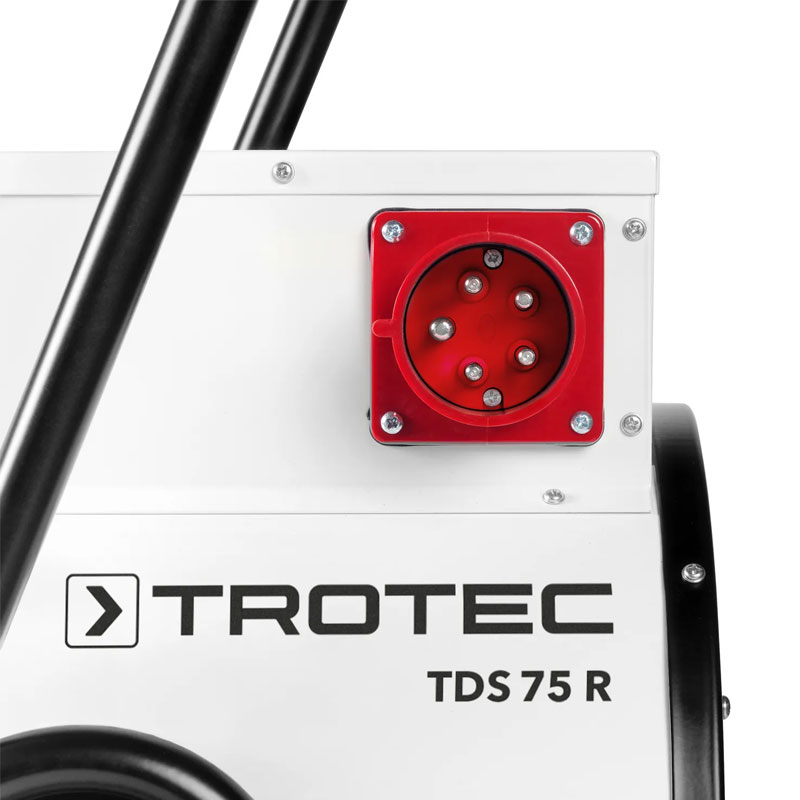

This Trotec TDS 75 R Electric Hot Air Generator has a three-phase 400 V power supply , with a nominal power consumption of 21.7 A. This guarantees stable, safe operation that meets the professional standards required in an industrial setting. The IP24 protection class and the motor with thermal protection ensure a long operating life even in harsh environments, reducing the risk of failures and overloads.

In terms of performance, the device offers a heating power that can be modulated across four modes:

• Ventilation only
• Thermal Power 7.5 kW
• Thermal Power 10 kW
• Thermal Power 15 kW

The air flow rate is 1100 m³/h , while the operating range is from -15 °C to +25 °C . With a noise level of just 57 dB(A) at one metre distance, this heater combines efficiency and acoustic comfort, making it suitable for continuous use in work environments.

Functional specifications

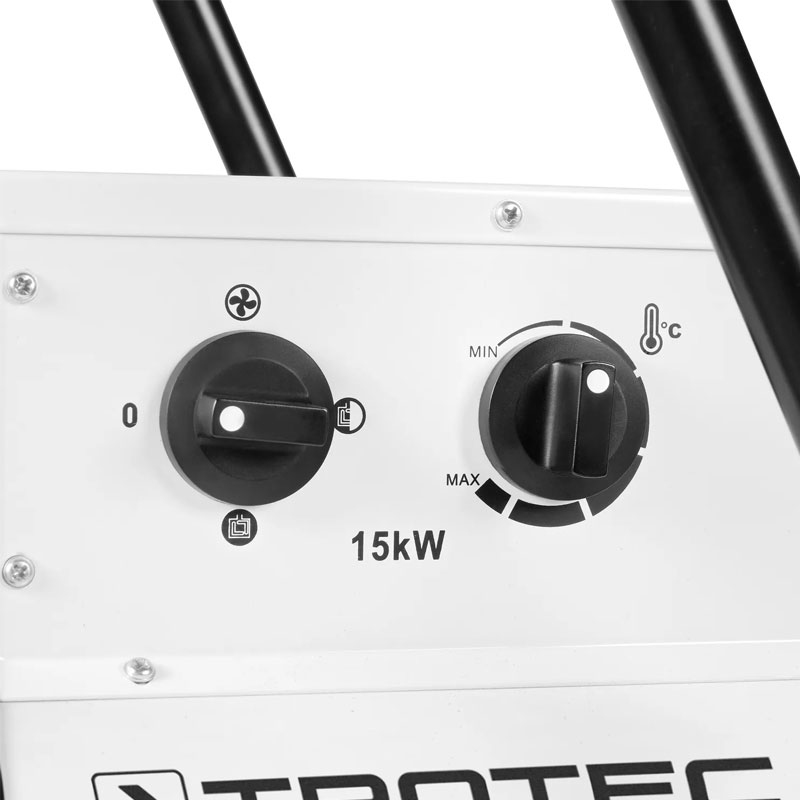

Adjustable heating power

The Trotec TDS 75 R features a temperature control system with three heating levels , allowing you to adjust the power to your specific needs. This flexibility makes the device suitable for both maintaining a constant desired temperature and for rapid heating in cold weather.

Control via integrated thermostat

This professional heater is equipped with a built-in thermostat , which automatically adjusts heat output to ensure a uniform and constant flow . This helps optimize energy consumption and increase operational efficiency, keeping the room temperature always under control.

Advanced operational security

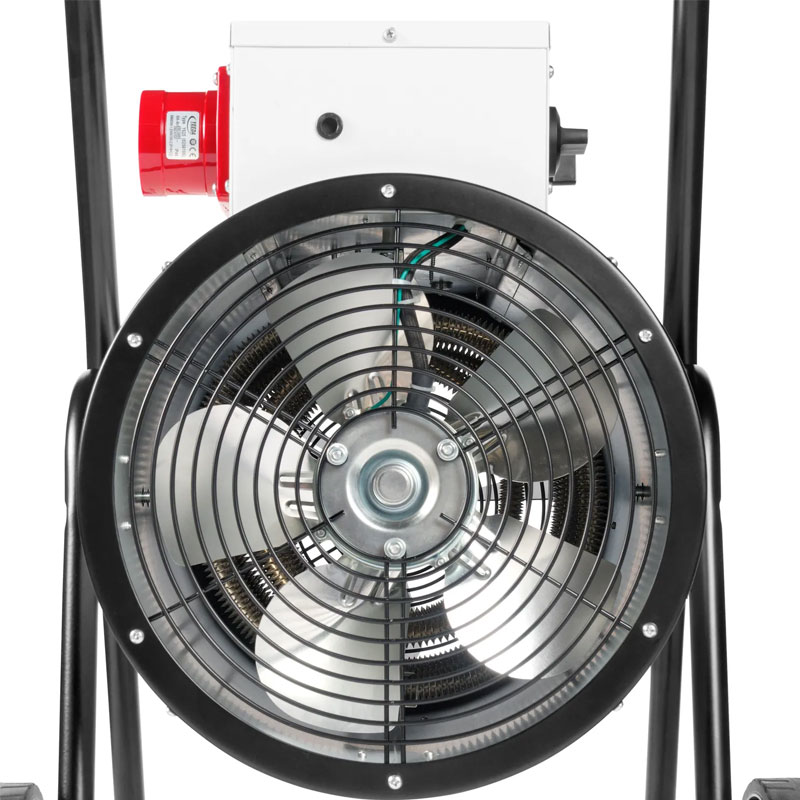

Thanks to overheating protection and a thermally protected fan motor , the Trotec TDS 75 R ensures safe operation even under intensive use . Furthermore, the post-ventilation function allows the internal components to be cooled after switching off, preventing premature wear and improving the longevity of the machine.

Clean heat for indoor environments

A key feature of the Trotec TDS 75 R Electric Heater is its non-condensing heat generation without oxygen consumption . The absence of harmful emissions makes it particularly suitable for closed or poorly ventilated spaces , ensuring a comfortable climate without compromising air quality.

Ease of transport and versatility of use

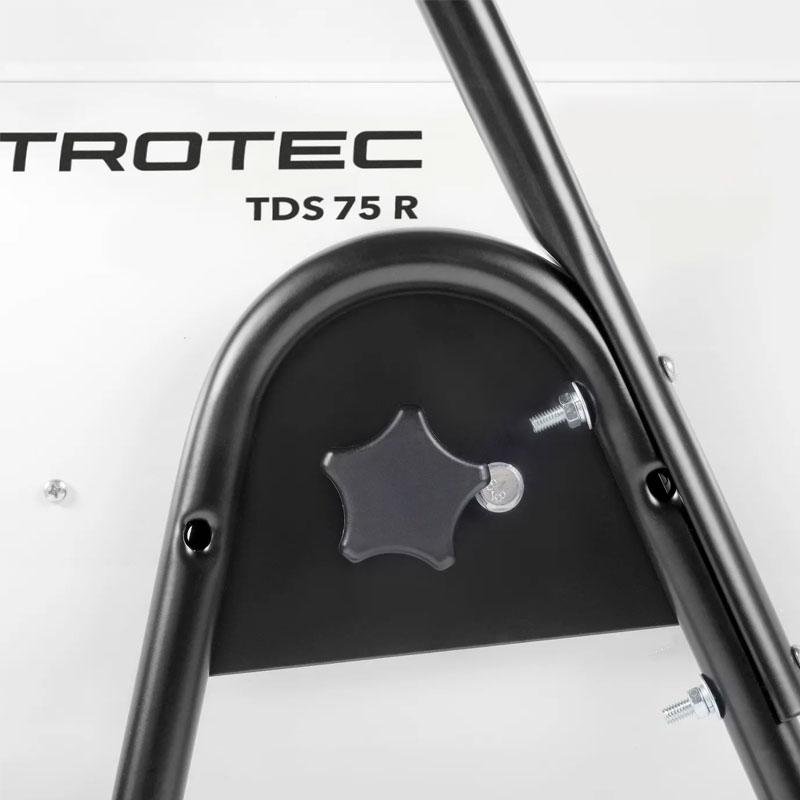

The compact design , galvanized sheet steel housing , and sturdy ergonomic handle make this Trotec TDS 75 R heat generator convenient to move and install at different workstations. The option of using the fan-only mode further expands its applications, making it a versatile solution for a variety of professional needs.

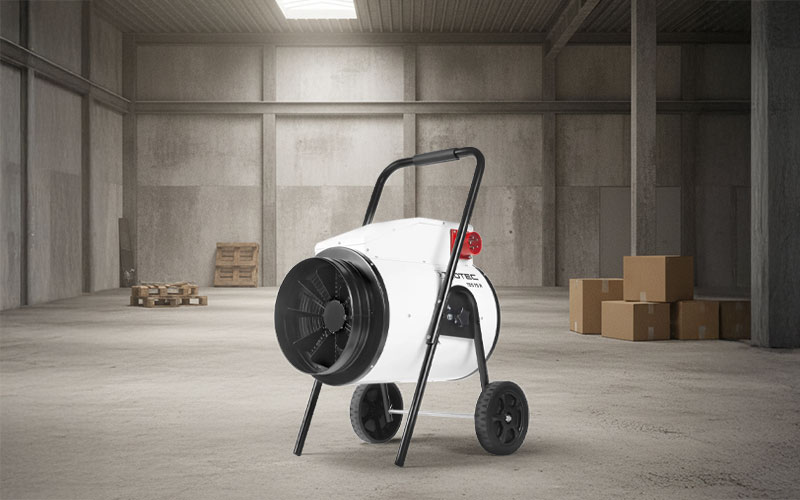

Areas of use

• Car repair shops
• Construction sites
• Installation work
• Restaurant sector
• Warehouses and sheds
• Greenhouses
• and similar

Characteristics

• Temperature regulation with two heating levels
• Integrated thermostat for a constant flow of hot air
• Overheat protection
• Protection class IP24
• Fan motor with thermal protection
• Post-ventilation function for component cooling
• Heat without condensation, no oxygen consumption (suitable for heating indoor spaces)
• Easy to carry and use
• Ventilation mode, without emission of hot air
