Trotec TDS 50 R
Electric Heater 9 kW

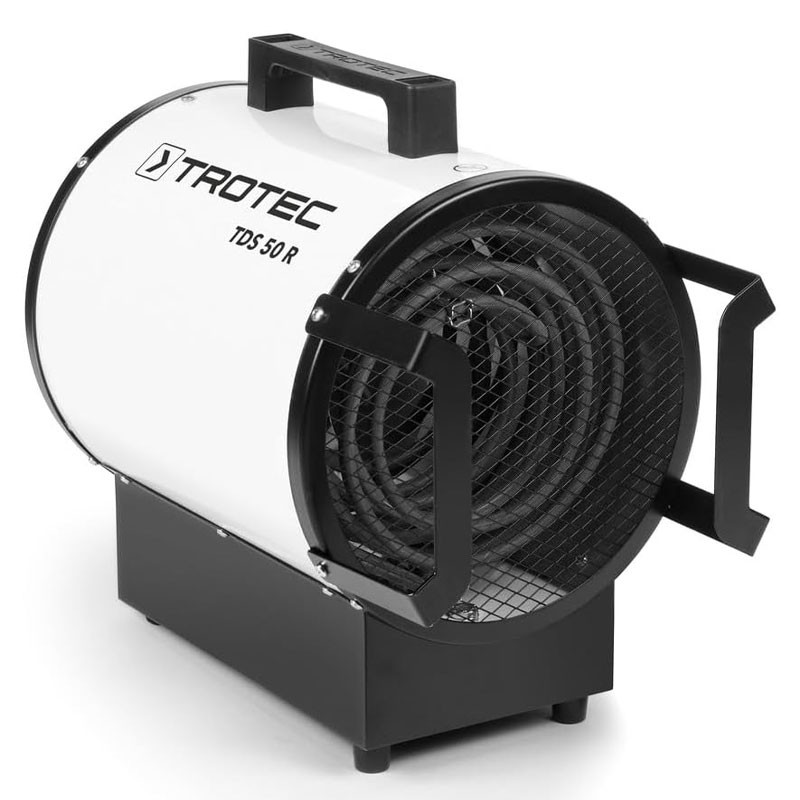

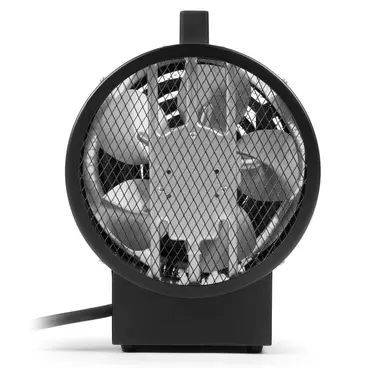

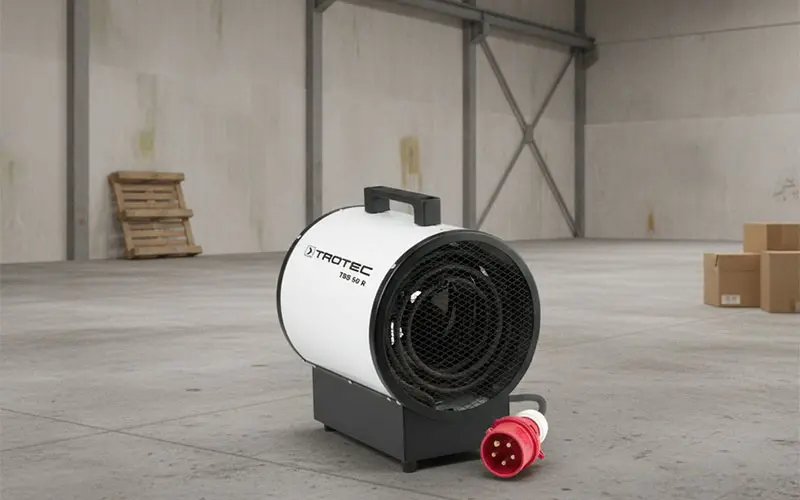

Trotec TDS 50 R - 9 kW Electric Heater with 3-Mode Control

The Trotec TDS 50 R electric heater is a versatile professional solution for environments requiring immediate and constant heat . This electric heater offers powerful heating of up to 9 kW without generating condensation, exhaust gases or consuming oxygen, making it ideal for closed or poorly ventilated spaces . Its ability to guarantee uniform and adjustable hot air in 3 modes makes it perfect for storage areas, production or temporary work spaces.

Designed to last, the TDS 50 R Electric Heater combines robustness and mobility thanks to a housing in galvanized and painted sheet steel and an ergonomic handle , allowing easy transport without sacrificing safety and practicality.

Technical specifications

The TDS 50 R electric heater operates on a three-phase 400V power supply and offers three-level adjustable power from 4.5 to 9 kW . The operating temperature range varies from -15°C to 25°C, ensuring operation even in difficult environmental conditions. The integrated axial fan ensures a uniform and constant flow of air, optimizing heat distribution over large surfaces without wasting energy.

The TDS 50 R's metal housing not only provides resistance to impacts and heavy use, but also integrates advanced safety features including:

• Rollover protection
• Fan motor thermal protection
• Post-ventilation function that ensures controlled cooling of components after use

Functional specifications

3 Ways to Use

Trotec TDS 50 R can be set to 3 modes :
- Fan Only Function: The axial fan can also be used without activating the heating, allowing you to take advantage of air circulation independently. This additional mode makes it useful not only for heating, but also for maintaining constant ventilation in closed spaces or for accelerating the cooling of the device's internal components;
- 2-Stage Heating Mode : The Trotec TDS 50 R offers two heating power settings: 4.5 kW or 9 kW, offering flexibility and control to suit your specific workplace needs. Stepless regulation via the integrated thermostat keeps the desired temperature constant, preventing temperature fluctuations and ensuring comfort and safety even in medium-sized workspaces.

Safe and Condensation-Free Heating

Thanks to its electrical operating principle, the Trotec TDS 50 R electric heater produces heat without consuming oxygen or generating condensation, exhaust gases, or vapors . This makes it ideal for closed spaces, small laboratories, or storage areas where safety and air quality are paramount.

Mobility and Robust Design

This heater's ergonomic handle design allows for easy and safe transportation between different workspaces. The galvanized and painted sheet steel construction ensures impact resistance and durability even in demanding industrial environments. The combination of mobility, anti-tip protection, and robust construction makes it a reliable device for professionals requiring a powerful, safe, and versatile electric heater.

Areas of use

• Car repair shops
• Construction sites
• Installation work
• Restaurant sector
• Warehouses and sheds
• Greenhouses
• and similar

Characteristics

• Temperature regulation with two heating levels
• Integrated thermostat for a constant flow of hot air
• Overheat protection
• Rollover protection
• Fan motor with thermal protection
• Post-ventilation function for component cooling
• Heat without condensation, no oxygen consumption (therefore perfectly suitable for heating internal spaces)
• Easy to carry and use
• Fan mode can also be activated without heating function
• Robust construction with ergonomic handle
